Component Inspection

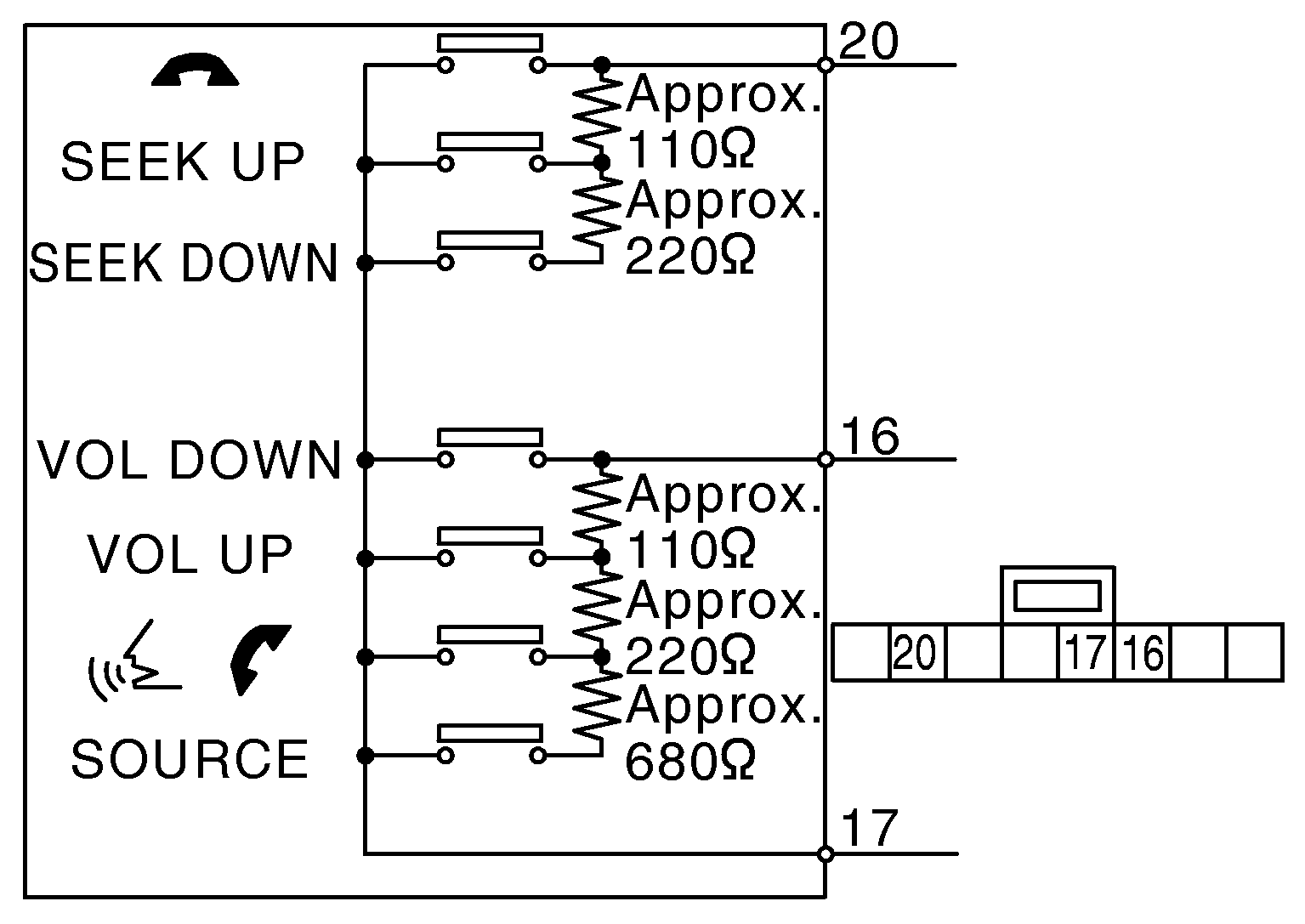

Measure the resistance between the steering switch connector terminals 16 to 17 and 20 to 17.
Standard
| Steering switch | Condition | Resistance Ω | |
|---|---|---|---|
| Terminal | Terminal | ||
| 16 | 17 | SOURCE switch ON | 1000 - 1020 |
| switch ON | 327 - 333 | ||
| VOL UP switch ON | 109 - 111 | ||
| VOL DOWN switch ON | 0 | ||
| 20 | SEEK DOWN switch ON | 327 - 333 | |
| SEEK UP switch ON | 109 - 111 | ||
| switch ON | 0 | ||
