Removal and Installation: Removal

WARNING: This page is about a different car, the 2014 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the glove box. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the remote keyless entry receiver bolt (A).
  3. Disconnect the harness connector from remote keyless entry receiver and remove remote keyless entry receiver (1)

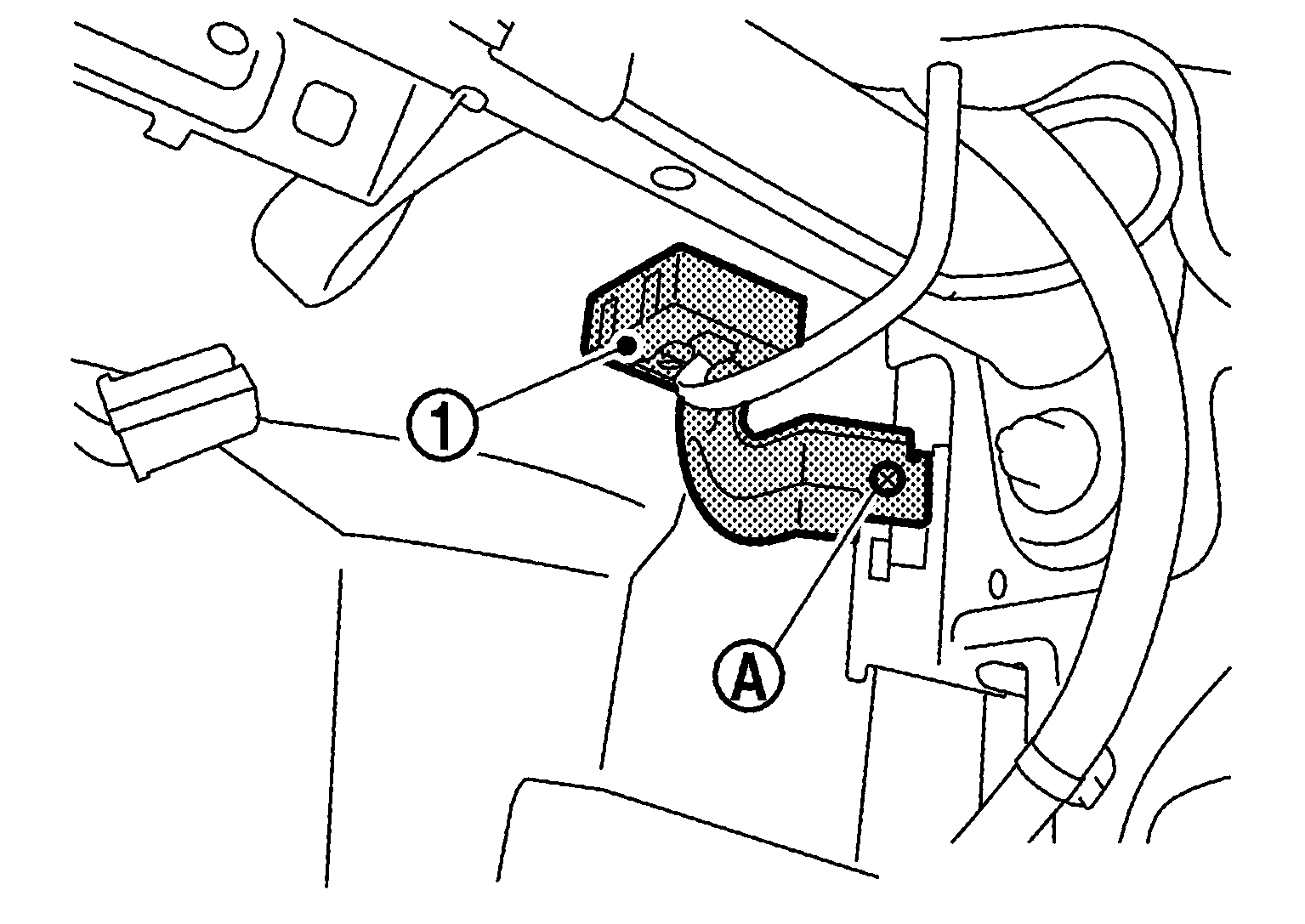

    Fig 1: Identifying Remote Keyless Entry Receiver And Mounting Bolt
    G08204132Courtesy of NISSAN NORTH AMERICA, INC.
