Connectors End Views

WARNING: This page is about a different car, the 2014 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

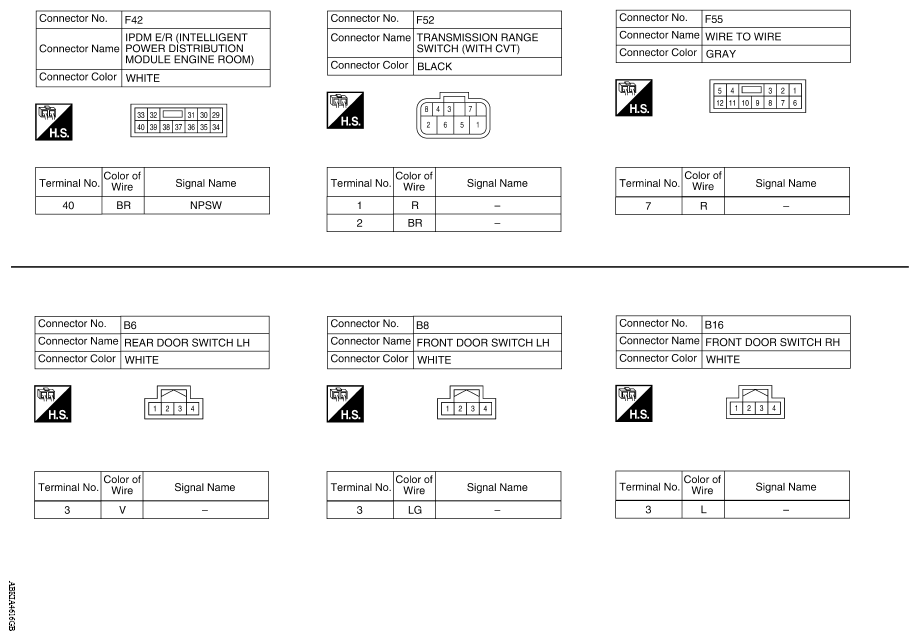

Fig 1: Intelligent Key/Engine Start Function Connectors End View (1 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

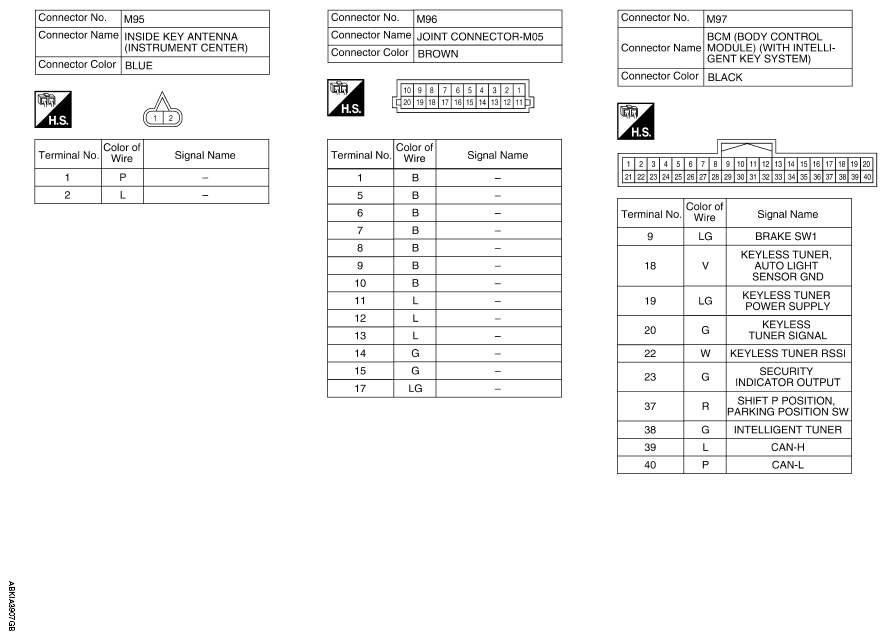

Fig 2: Intelligent Key/Engine Start Function Connectors End View (2 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

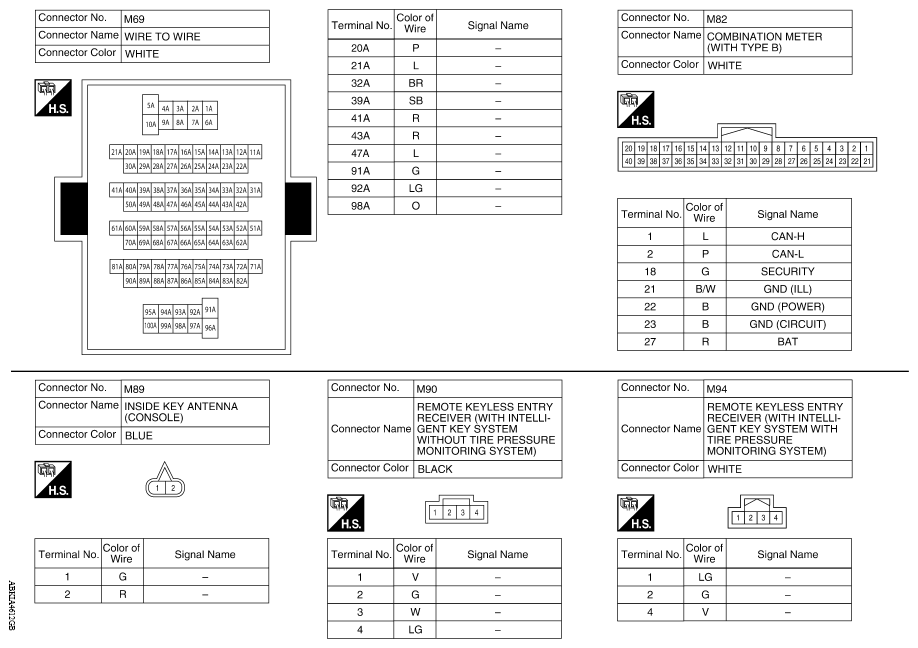

Fig 3: Intelligent Key/Engine Start Function Connectors End View (3 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

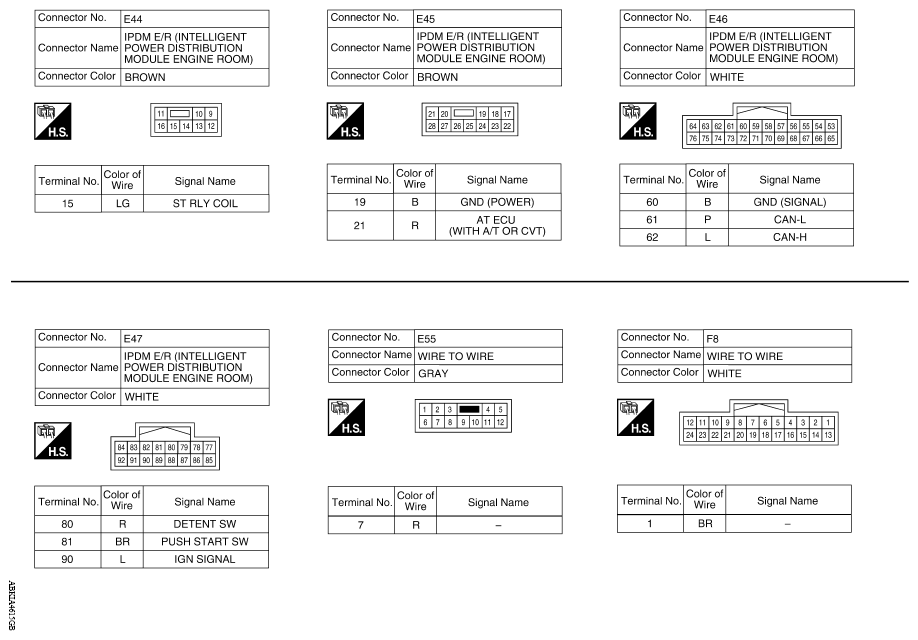

Fig 4: Intelligent Key/Engine Start Function Connectors End View (4 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

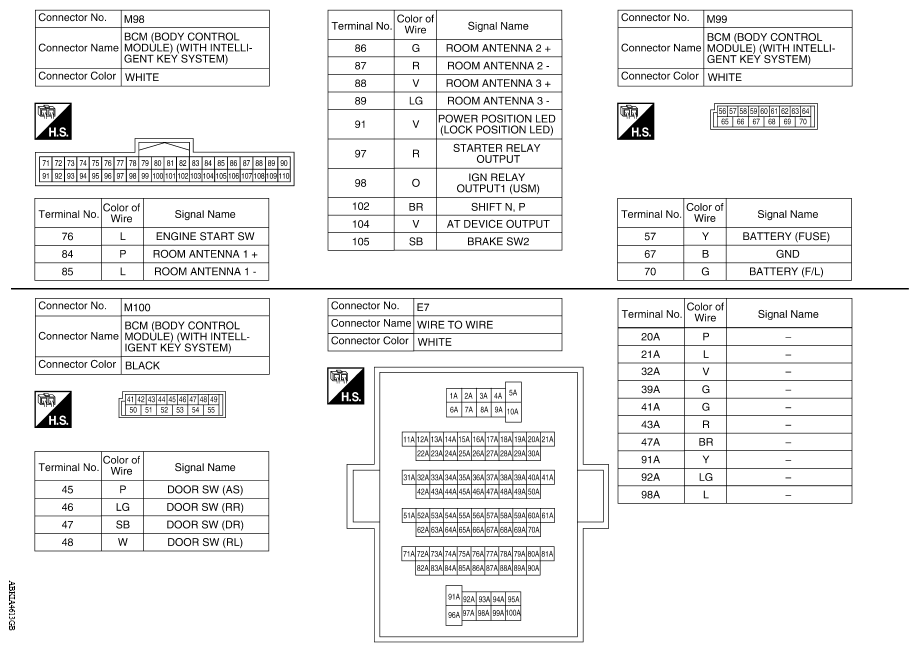

Fig 5: Intelligent Key/Engine Start Function Connectors End View (5 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

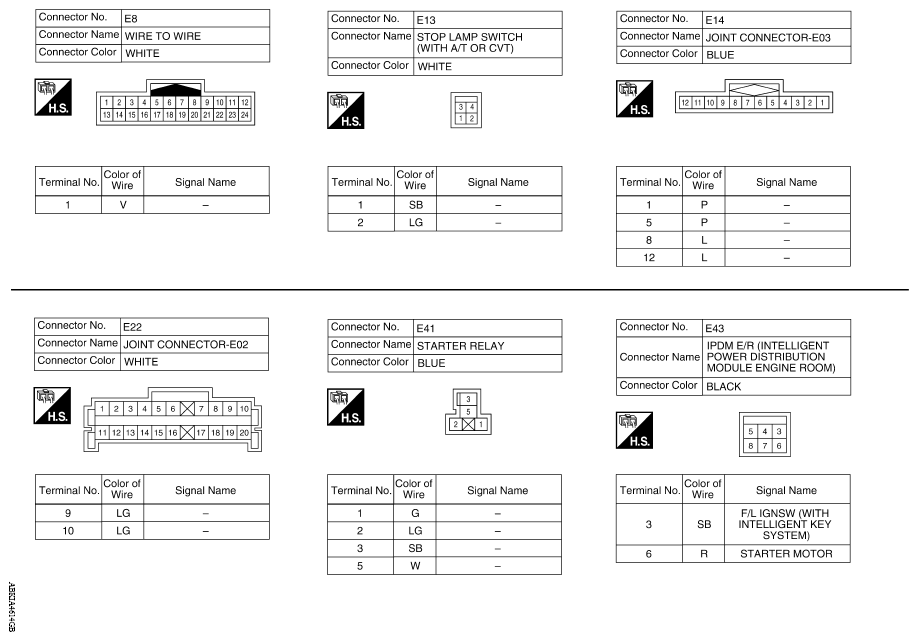

Fig 6: Intelligent Key/Engine Start Function Connectors End View (6 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

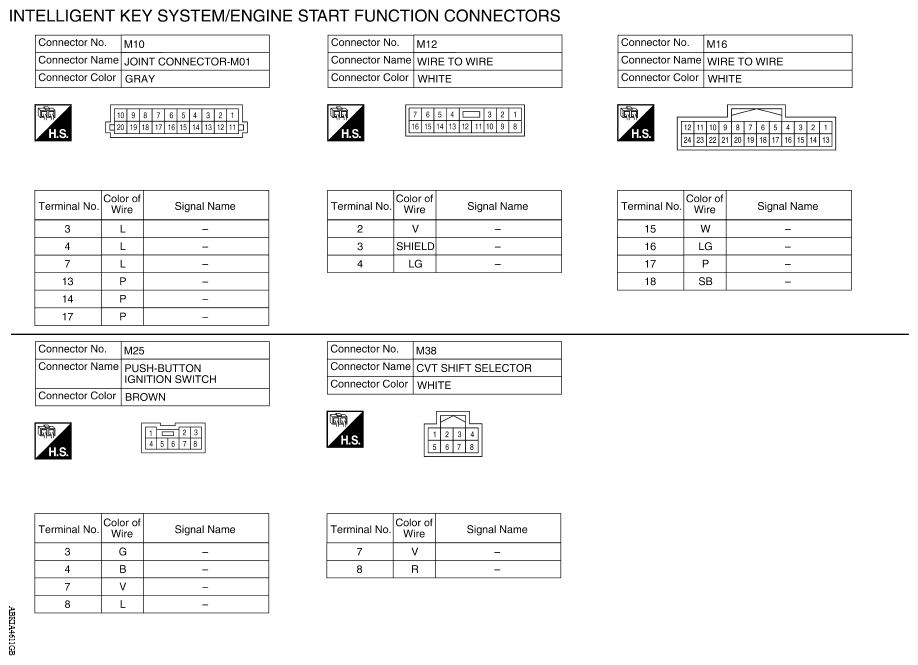

Fig 7: Intelligent Key/Engine Start Function Connectors End View (7 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.

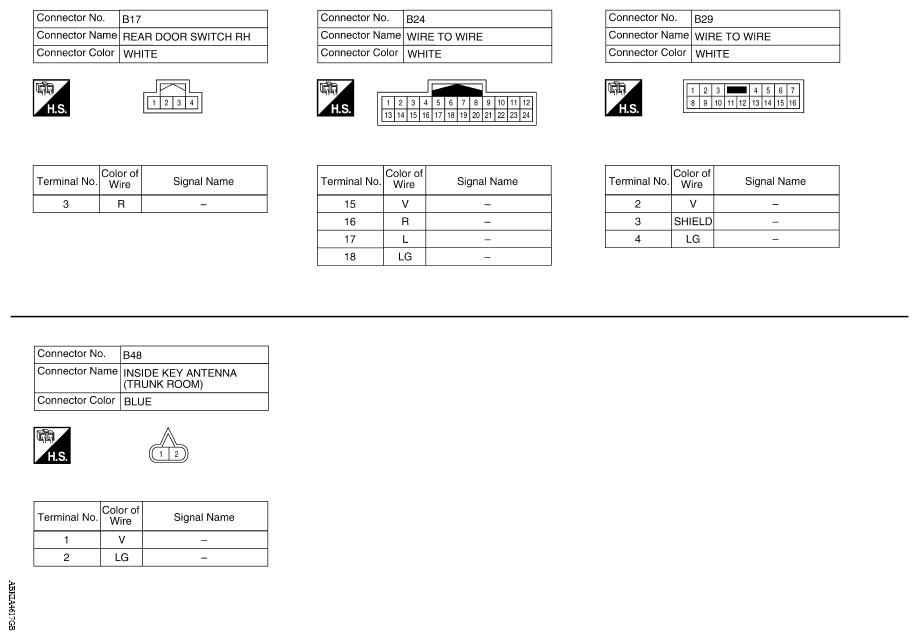

Fig 8: Intelligent Key/Engine Start Function Connectors End View (8 Of 8)

Courtesy of NISSAN NORTH AMERICA, INC.
