WARNING: This page is about a different car, the 2014 Nissan Versa. However, it is still accessible from the selected car via links, so may be relevant.

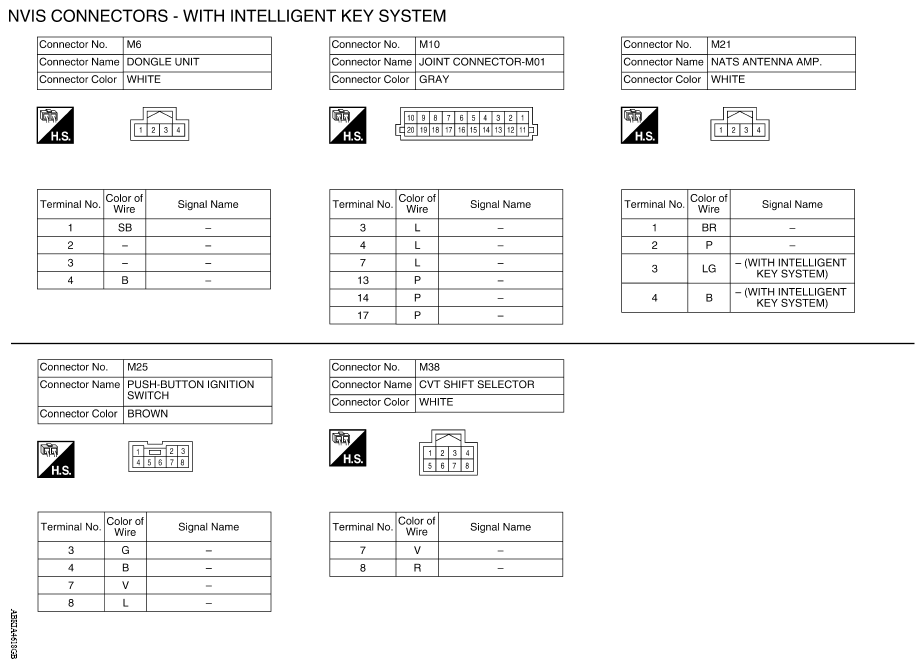

Fig 1: NVIS Connectors End View (With Intelligent Key System) (1 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

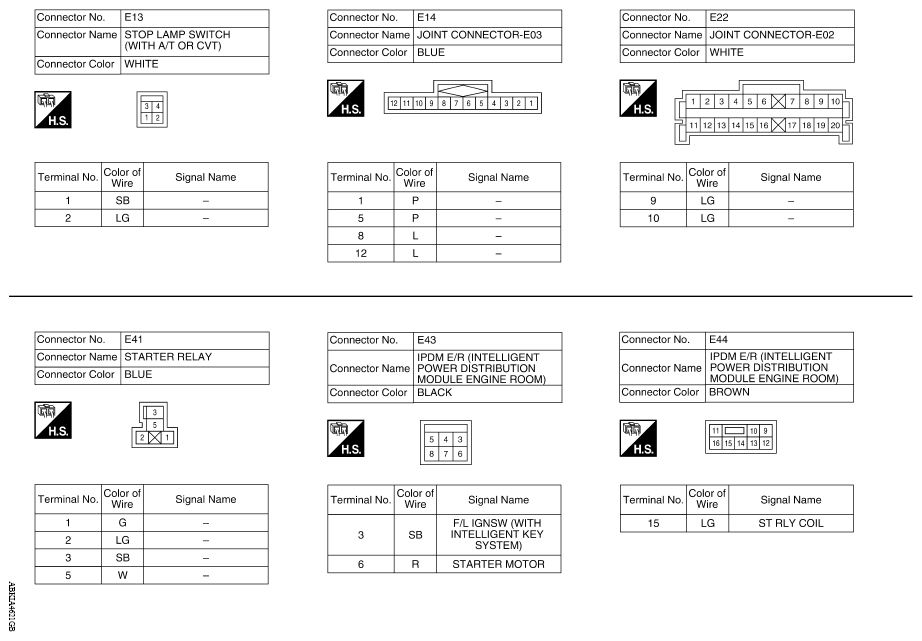

Fig 2: NVIS Connectors End View (With Intelligent Key System) (2 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

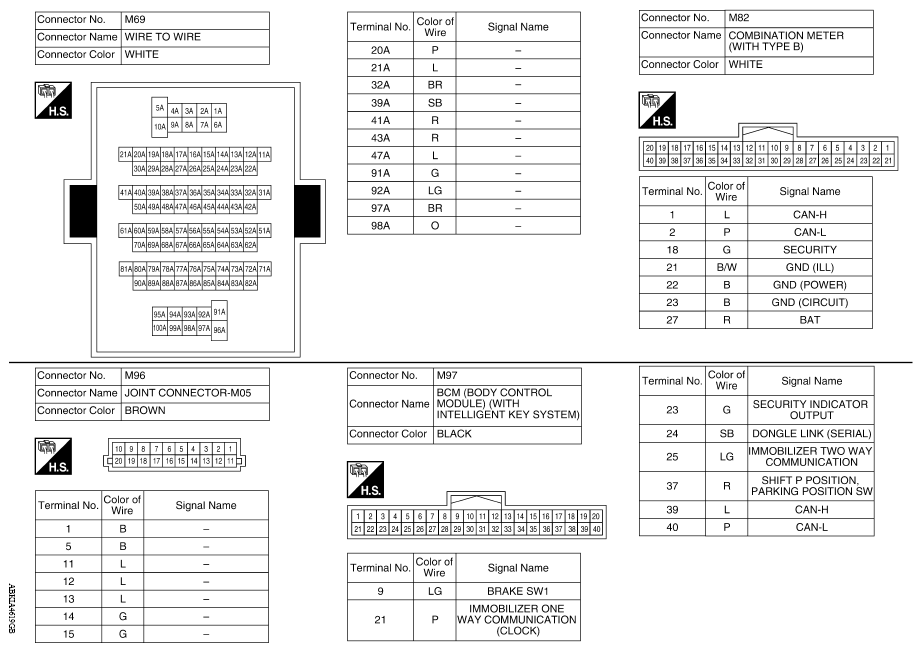

Fig 3: NVIS Connectors End View (With Intelligent Key System) (3 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

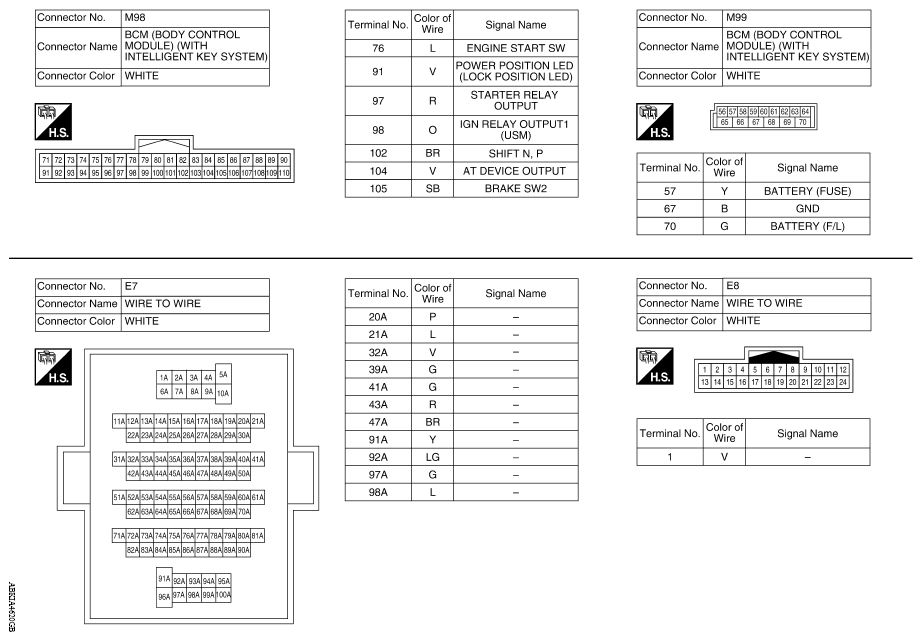

Fig 4: NVIS Connectors End View (With Intelligent Key System) (4 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 5: NVIS Connectors End View (With Intelligent Key System) (5 Of 6)
Courtesy of NISSAN NORTH AMERICA, INC.

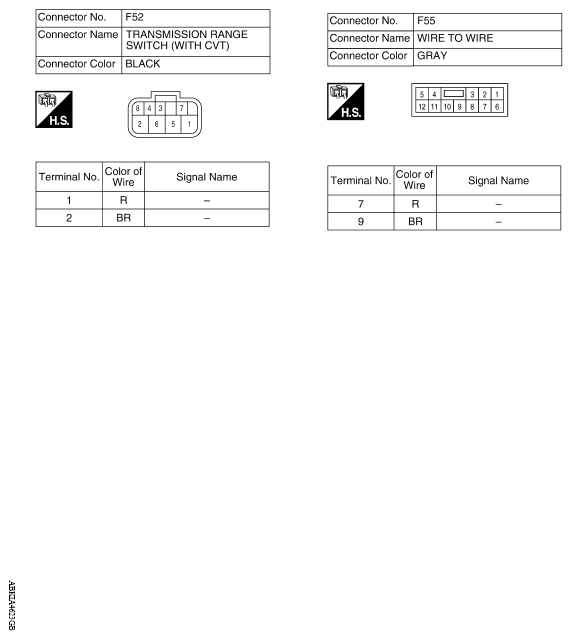

Fig 6: NVIS Connectors End View (With Intelligent Key System) (6 Of 6)
