Component Parts Location

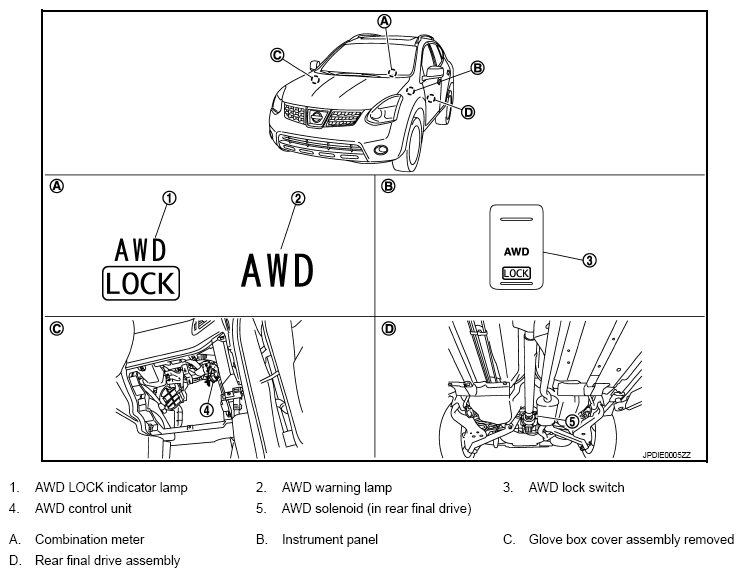

Fig 1: Identifying Electric Controlled Coupling Components
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
