Adapter Case: Assembly
- Install O-ring to adapter case.CAUTION:
- Never reuse O-ring.
- When installing O-ring, never use a tool.
- Never damage adapter case.
- Apply multi-purpose grease to O-ring.
- Install adapter case to the transfer case.

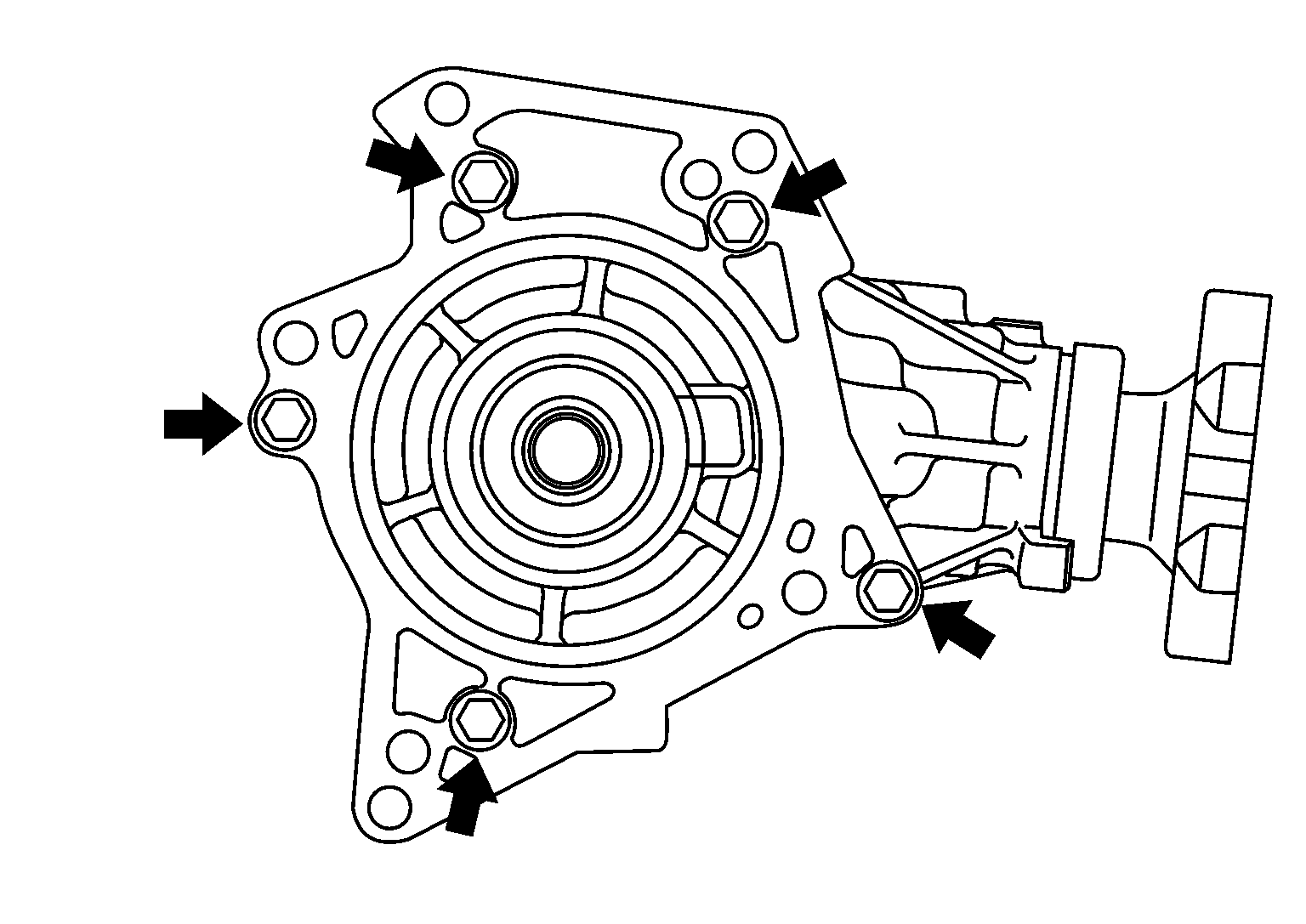

- Apply anti-corrosive oil onto threads and seats of bolts (<==), and tighten with the specified torque.
- Check backlash, tooth contact, total preload and companion flange runout. Refer to
"ADJUSTMENT ".CAUTION: Measure the total preload without the adapter case oil seal.

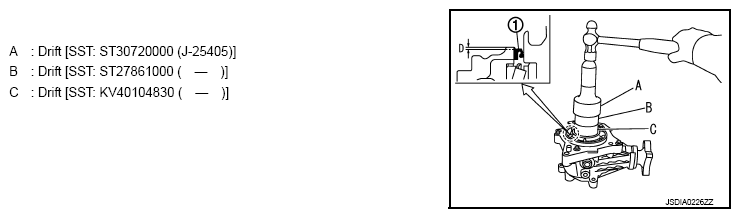

- Install adapter case oil seal (1) to the adapter case with drifts.
Courtesy of NISSAN NORTH AMERICA, INC.
Dimension "D": 0.5 - 1.5 mm (0.020 - 0.059 in)
CAUTION:- Never reuse adapter case oil seal.
- Apply multi-purpose grease onto oil seal lips, and gear oil onto the circumference.
