Low Temperature Protection Control

A/C amp. turns compressor ON or OFF as judged by a signal detected by intake sensor. When intake temperature is higher than 4°C (39°F), the compressor turns ON. The compressor turns OFF when intake temperature is lower than 2.5°C (37°F).

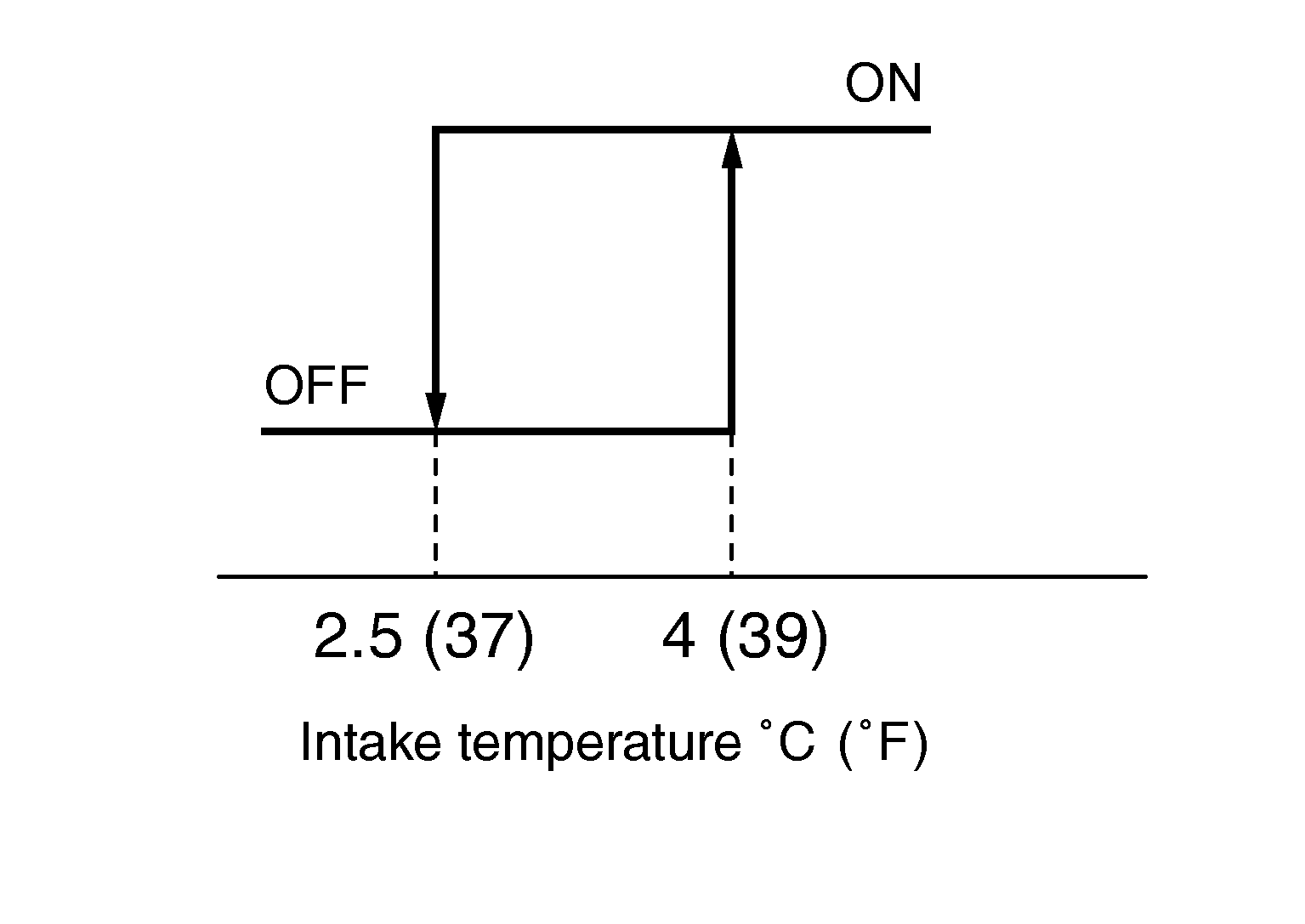

Fig 1: Intake Temperature Graph
G05371090Courtesy of NISSAN NORTH AMERICA, INC.
