Connector End Views

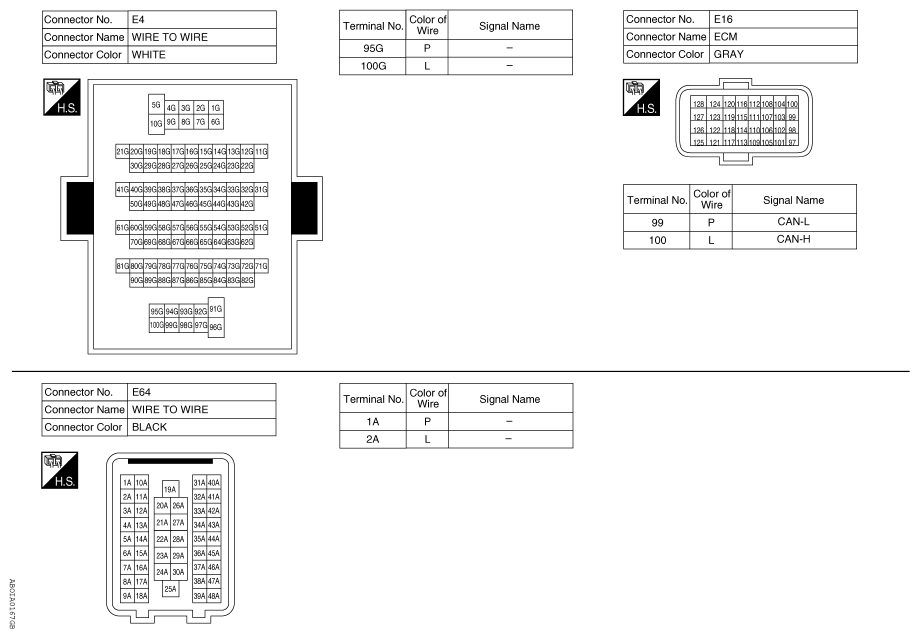

Fig 1: ECO Mode System Connector End Views (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

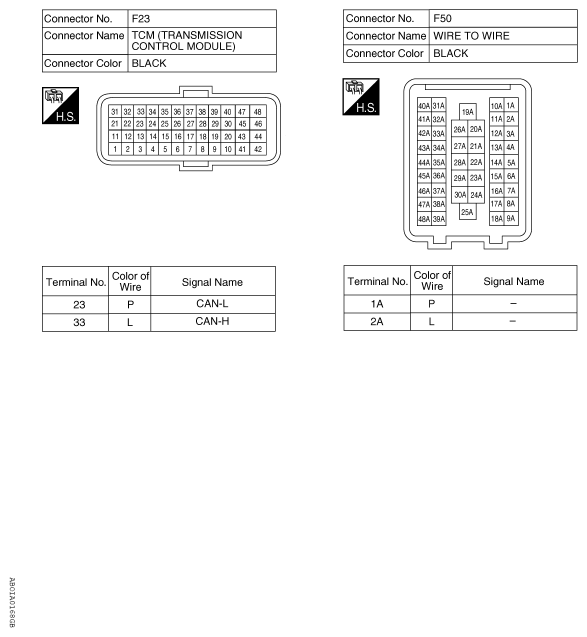

Fig 2: ECO Mode System Connector End Views (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

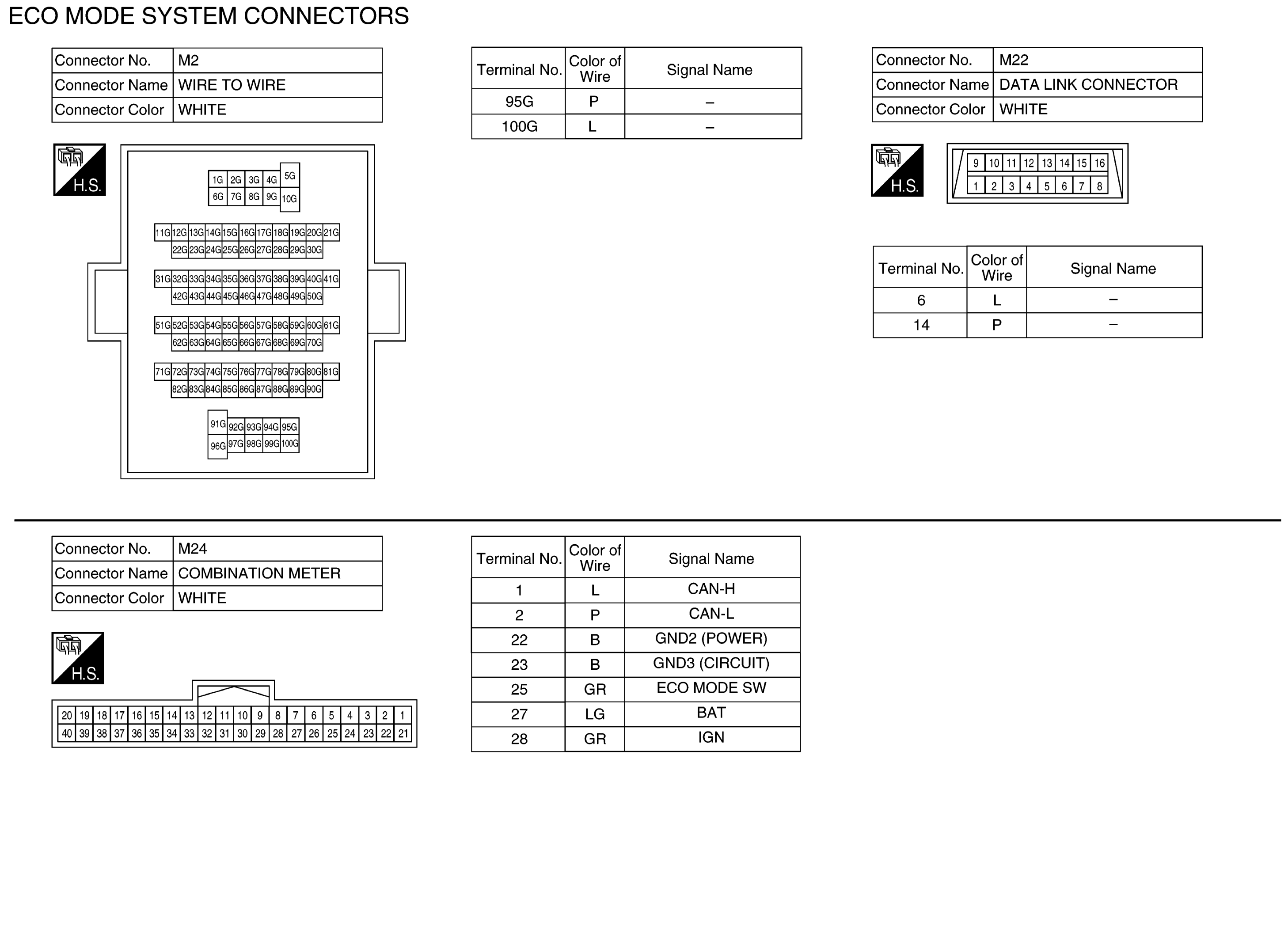

Fig 3: ECO Mode System Connector End Views (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

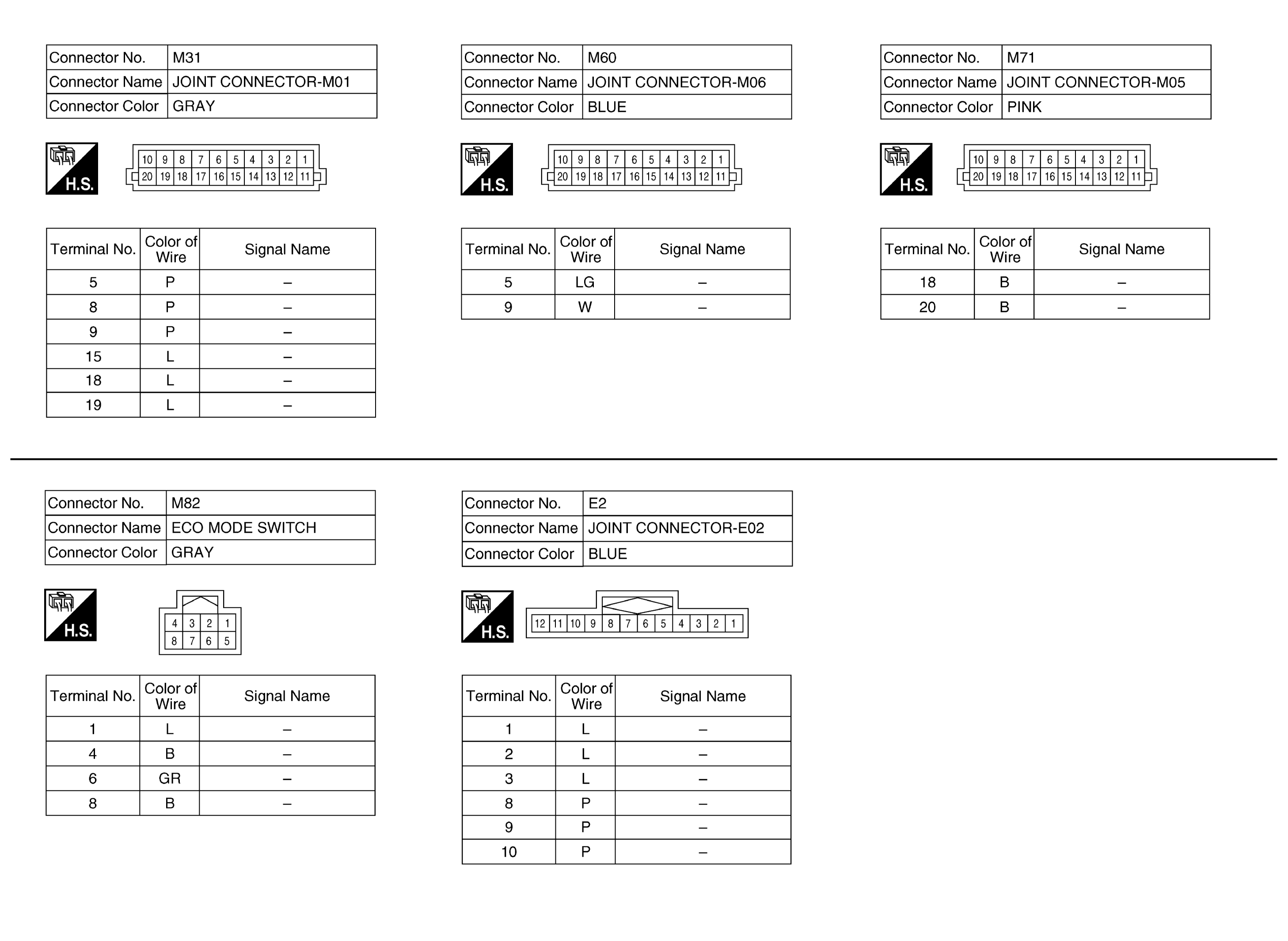

Fig 4: ECO Mode System Connector End Views (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
