Connector End Views

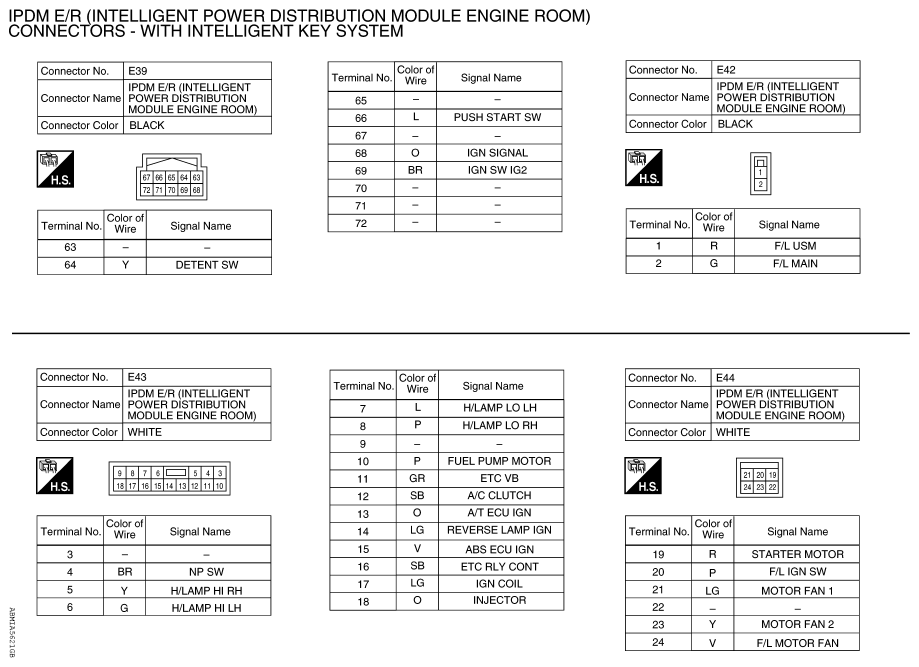

Fig 1: IPDM E/R Connector End Views (1 Of 2)
G09460847Courtesy of NISSAN NORTH AMERICA, INC.

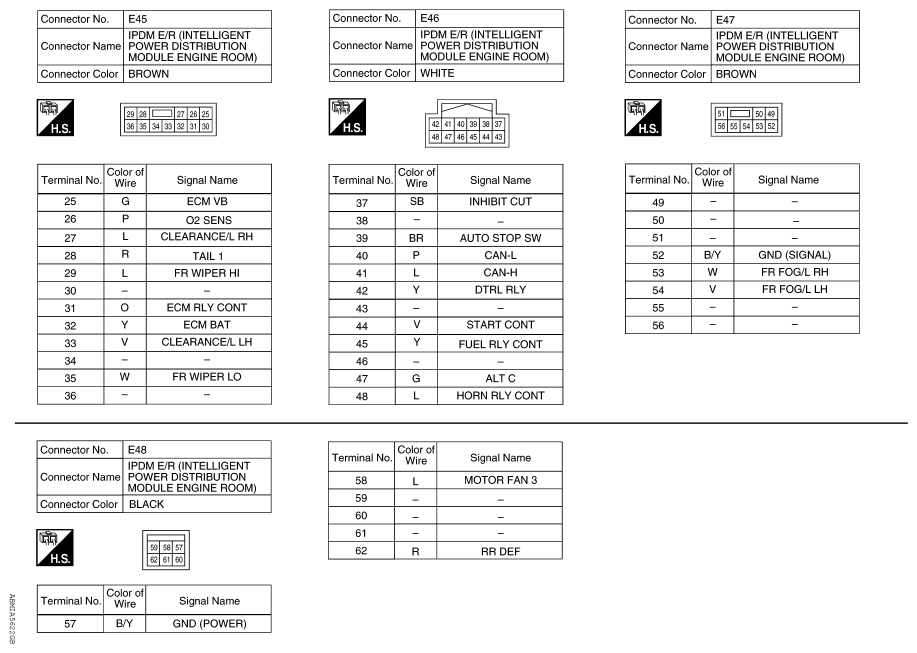

Fig 2: IPDM E/R Connector End Views (2 Of 2)
G09460848Courtesy of NISSAN NORTH AMERICA, INC.
