Connector End Views

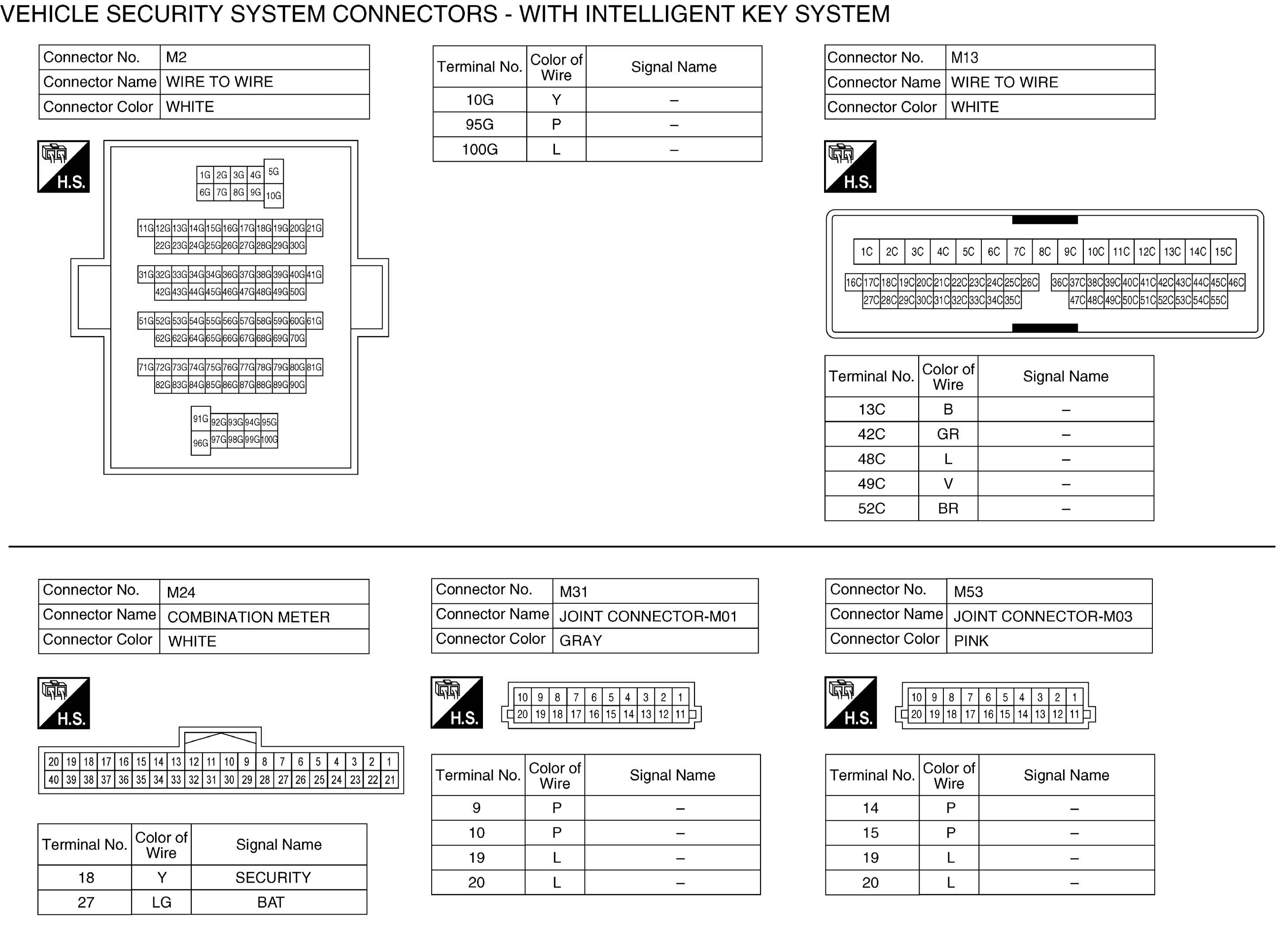

Fig 1: Vehicle Security System Connector End Views - With Intelligent Key System (1 Of 7)
G09460184Courtesy of NISSAN NORTH AMERICA, INC.

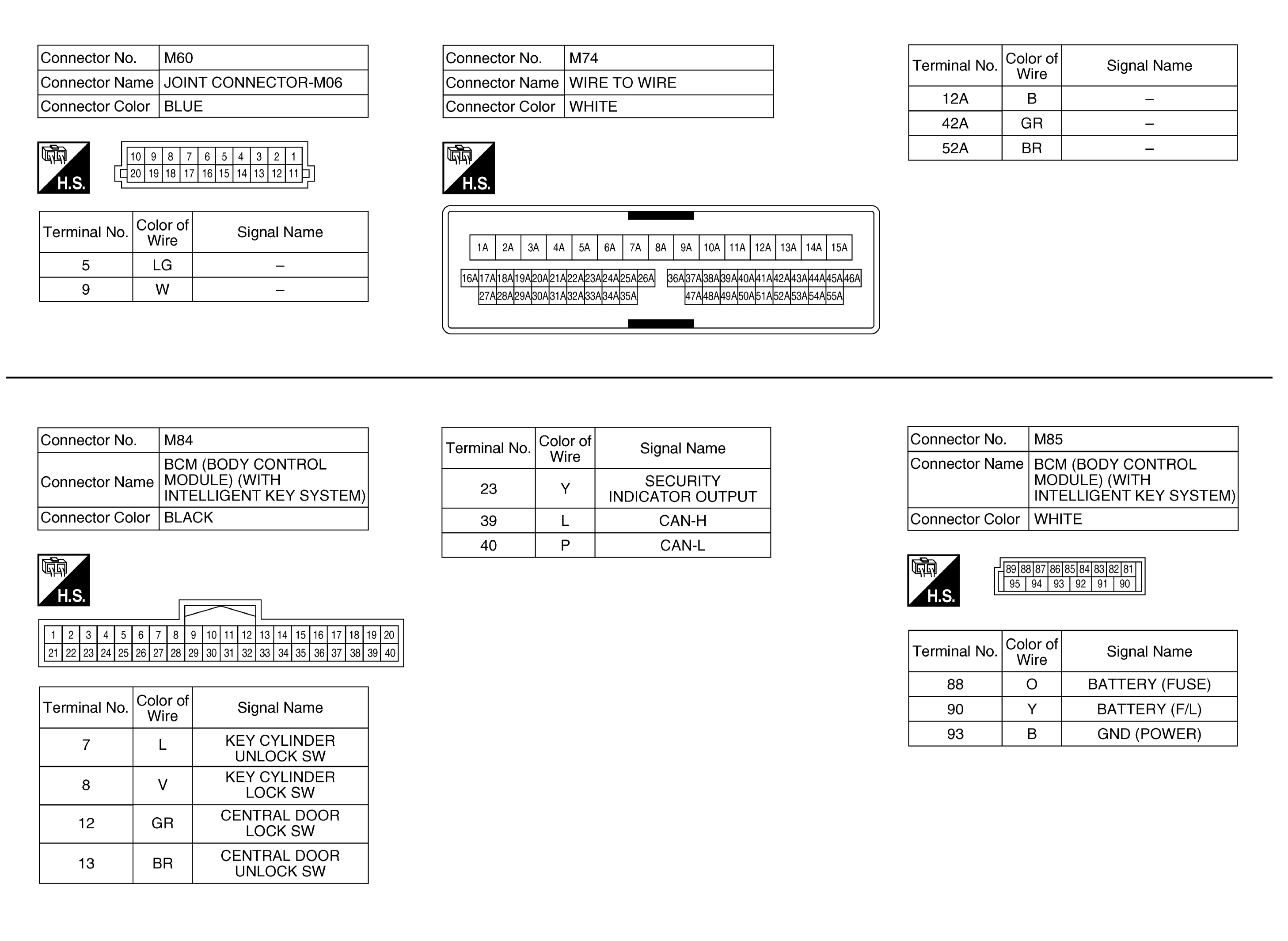

Fig 2: Vehicle Security System Connector End Views - With Intelligent Key System (2 Of 7)
G09460185Courtesy of NISSAN NORTH AMERICA, INC.

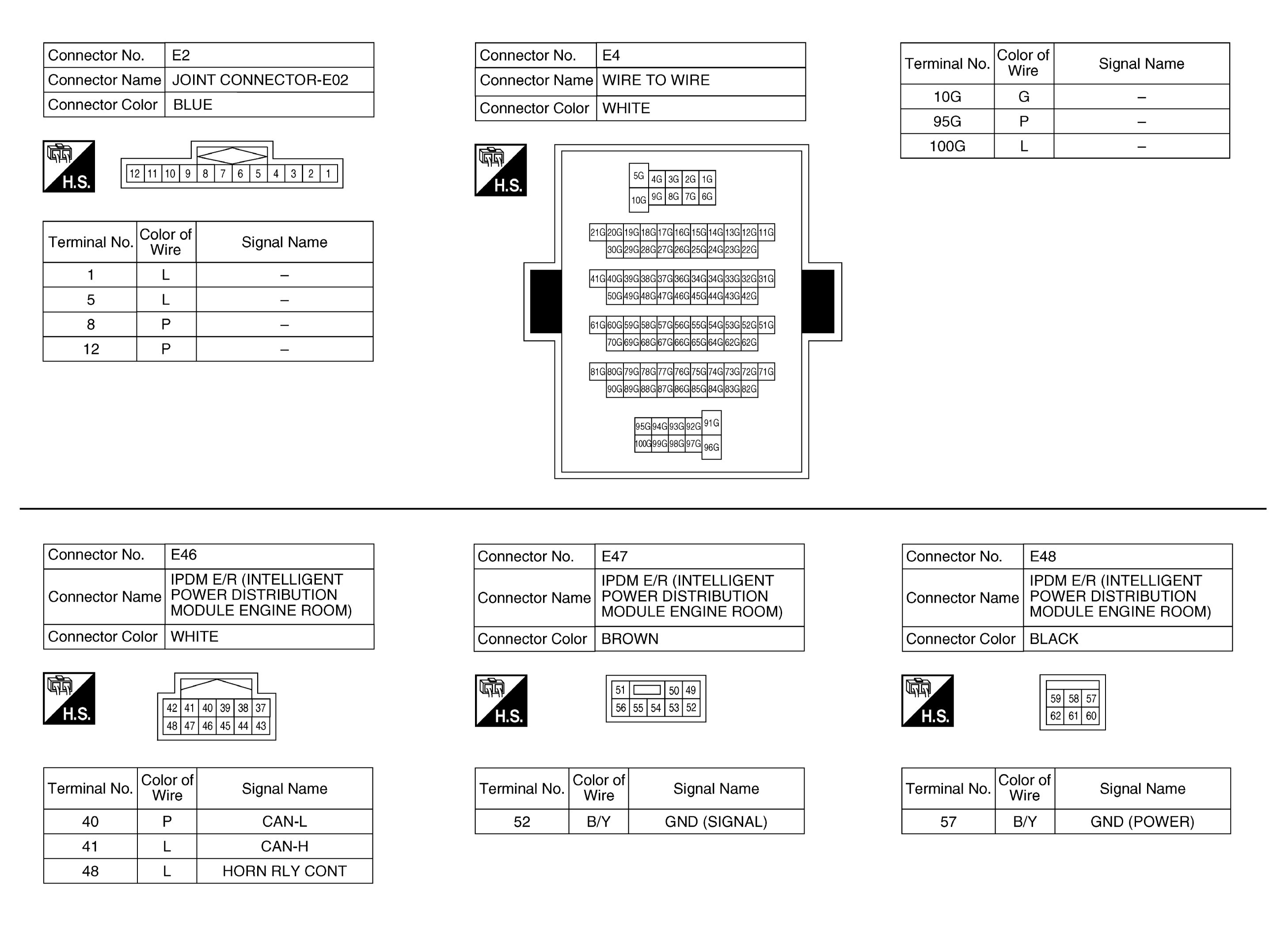

Fig 3: Vehicle Security System Connector End Views - With Intelligent Key System (3 Of 7)
G09460186Courtesy of NISSAN NORTH AMERICA, INC.

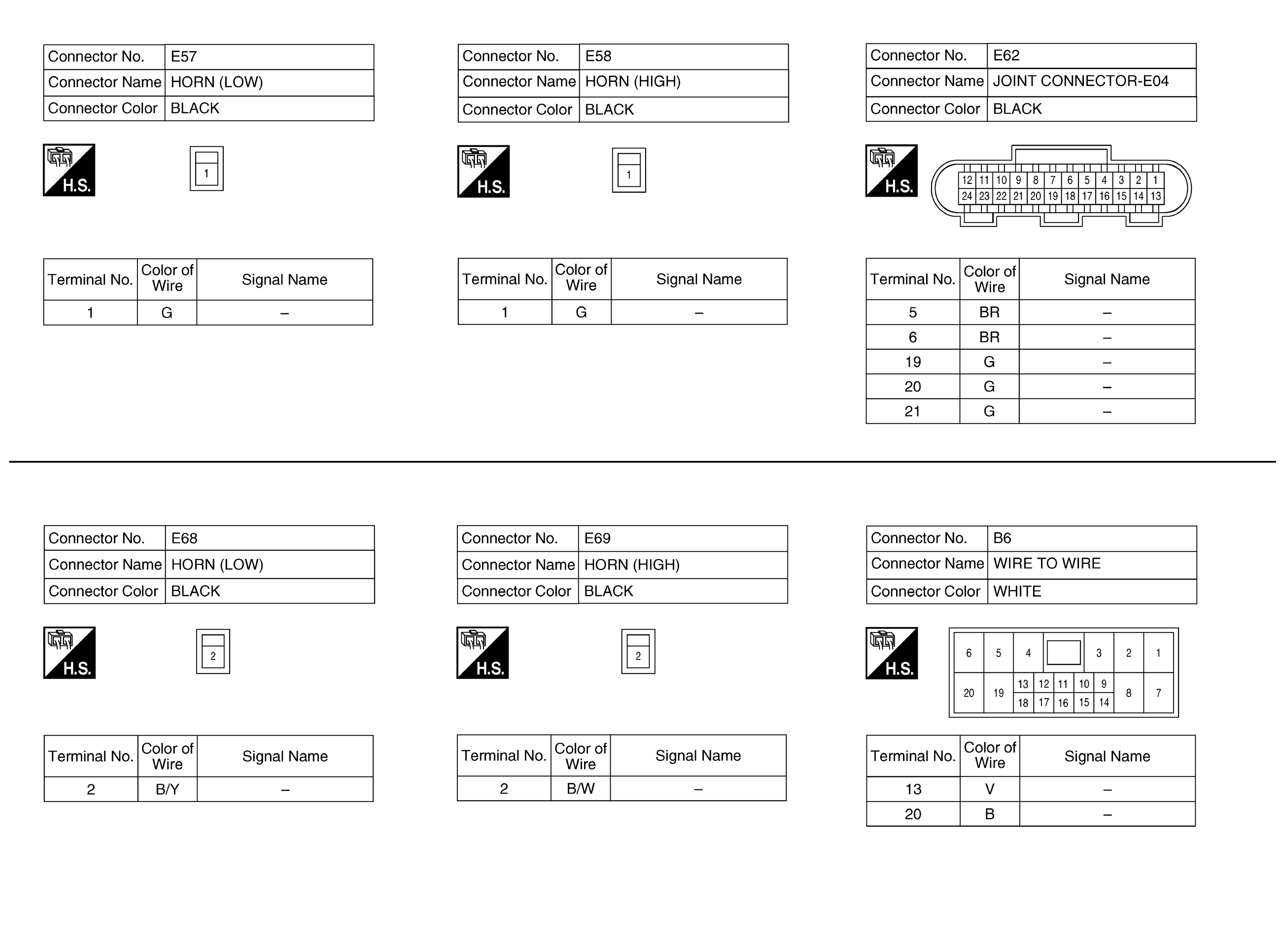

Fig 4: Vehicle Security System Connector End Views - With Intelligent Key System (4 Of 7)
G09460187Courtesy of NISSAN NORTH AMERICA, INC.

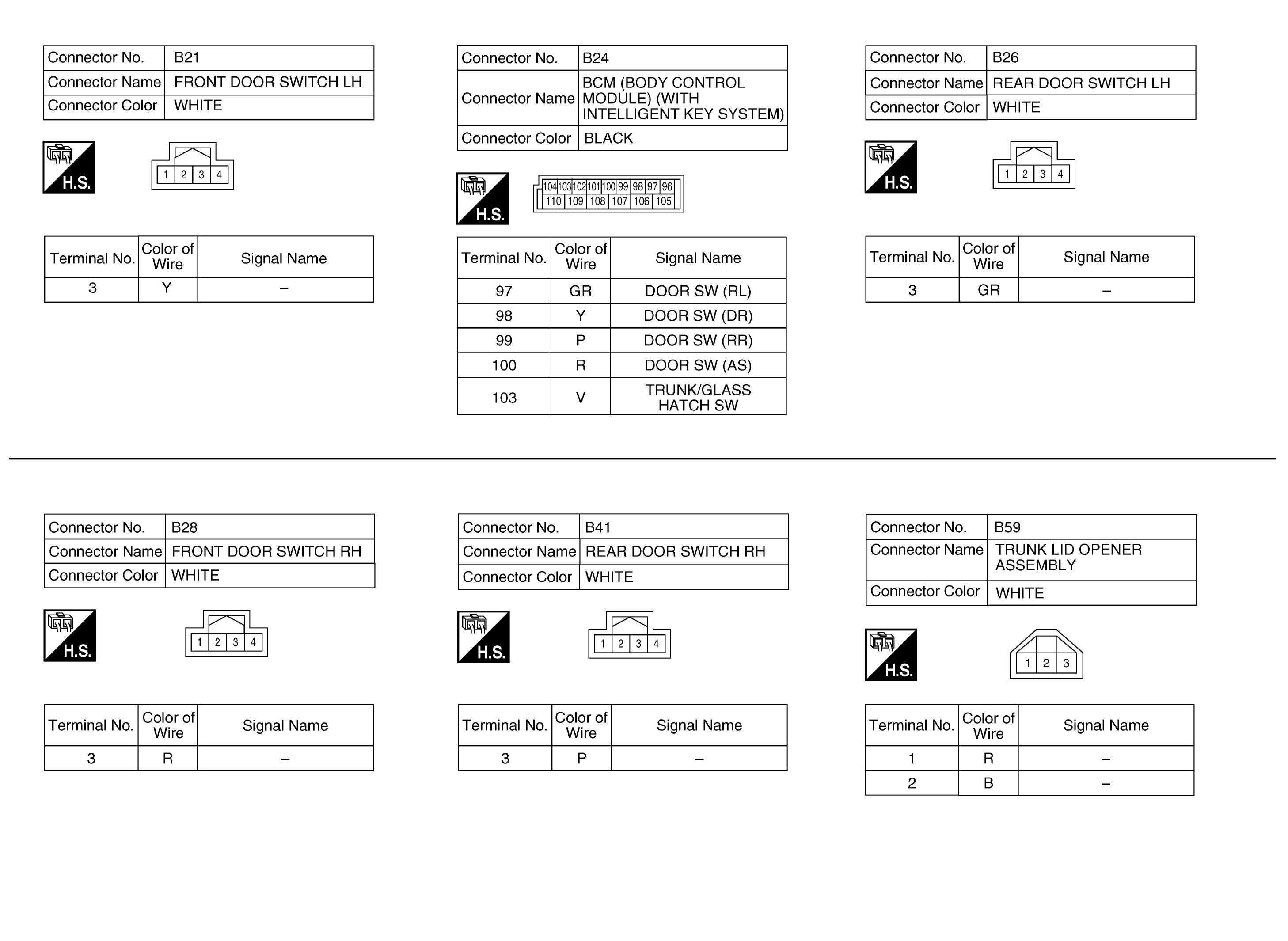

Fig 5: Vehicle Security System Connector End Views - With Intelligent Key System (5 Of 7)
G09460188Courtesy of NISSAN NORTH AMERICA, INC.

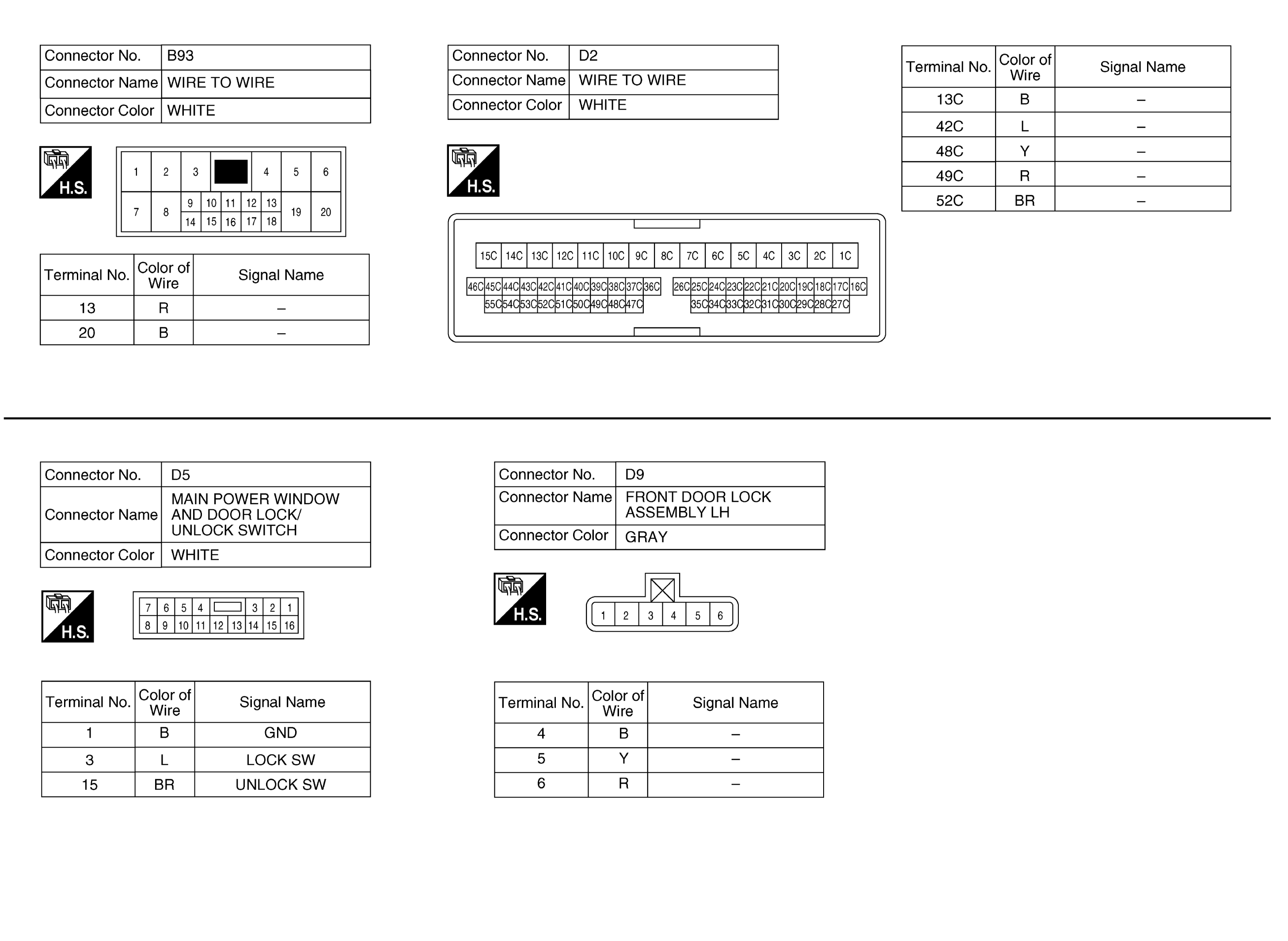

Fig 6: Vehicle Security System Connector End Views - With Intelligent Key System (6 Of 7)
G09460189Courtesy of NISSAN NORTH AMERICA, INC.

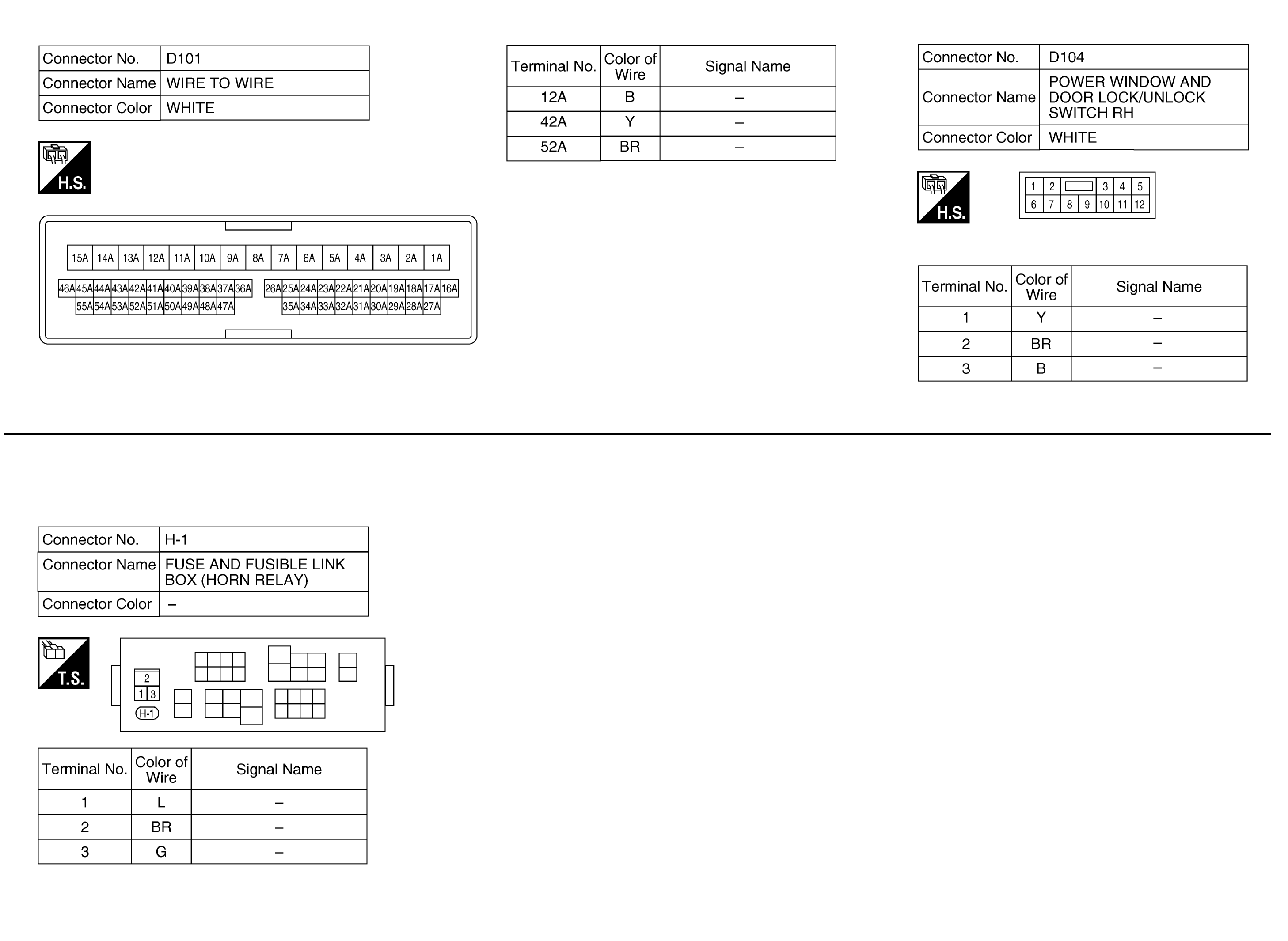

Fig 7: Vehicle Security System Connector End Views - With Intelligent Key System (7 Of 7)
G09460190Courtesy of NISSAN NORTH AMERICA, INC.
