Case And Housing

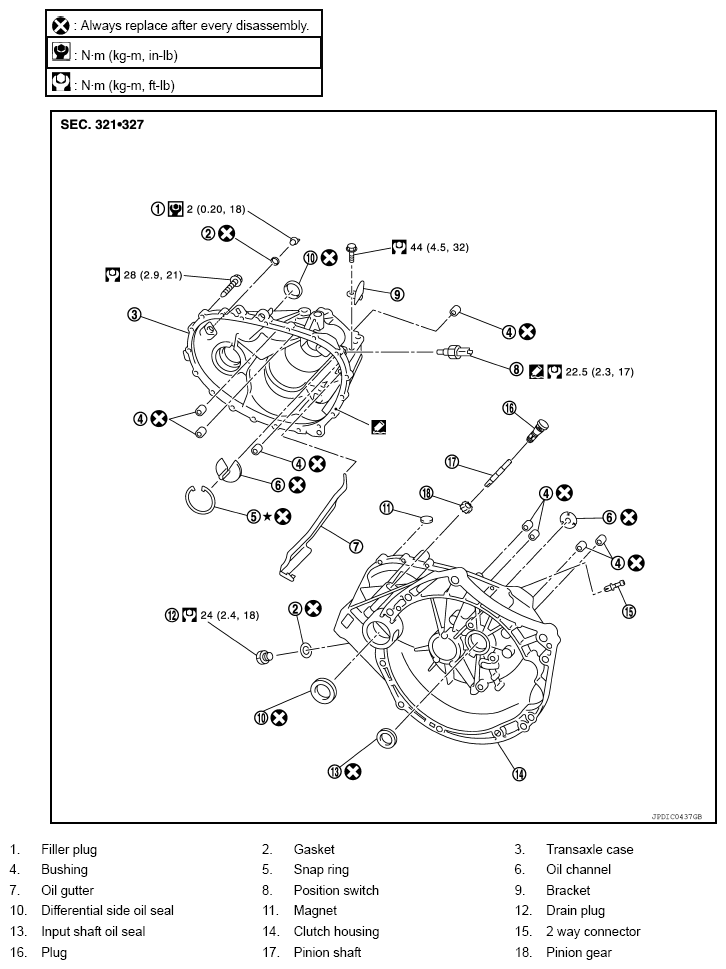

Fig 1: Exploded View Of Case And Housing With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
