Connector End Views

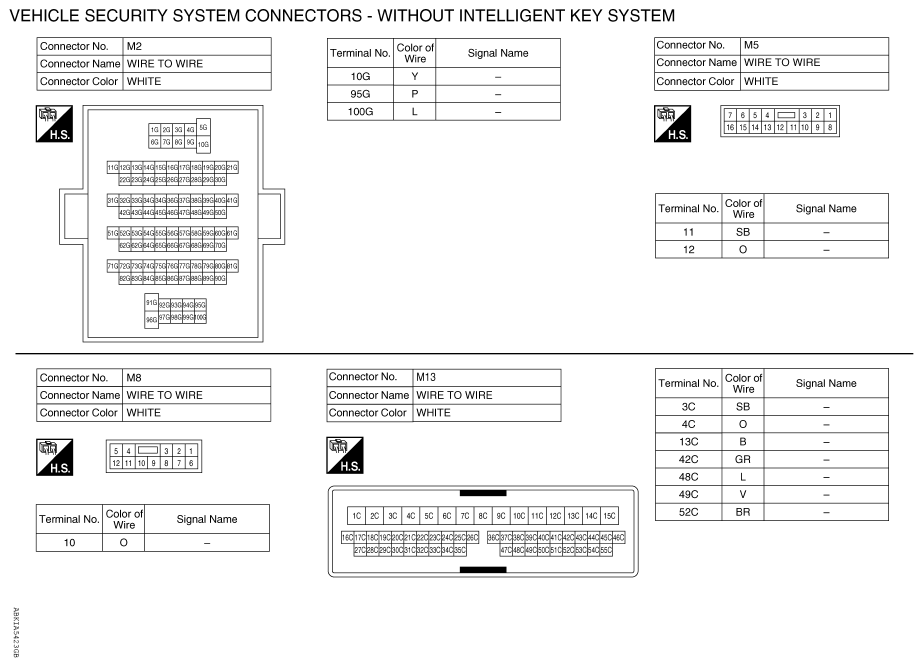

Fig 1: Vehicle Security System Connector End Views - Without Intelligent Key (1 Of 9)
G09460211Courtesy of NISSAN NORTH AMERICA, INC.

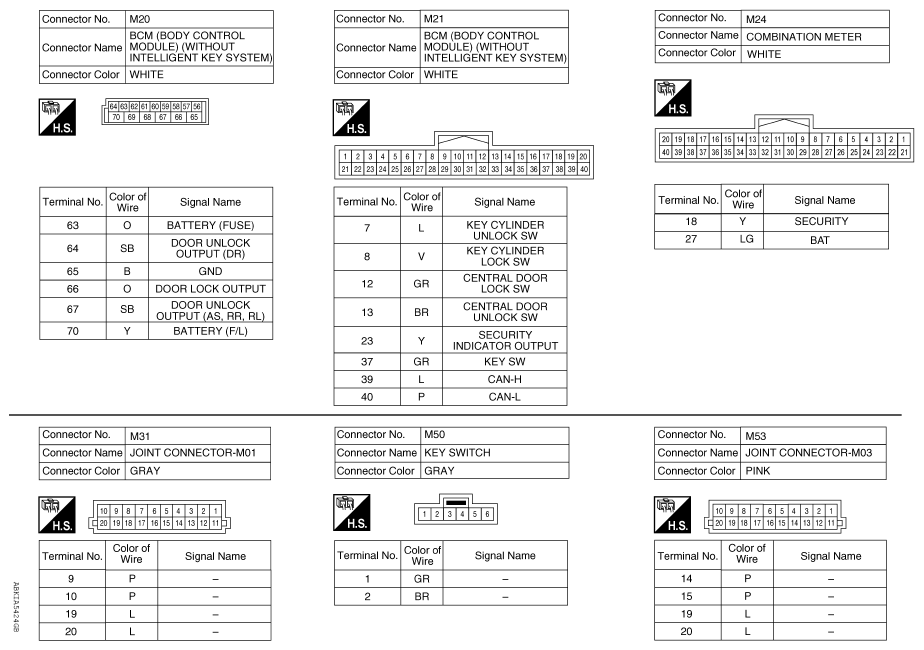

Fig 2: Vehicle Security System Connector End Views - Without Intelligent Key (2 Of 9)
G09460212Courtesy of NISSAN NORTH AMERICA, INC.

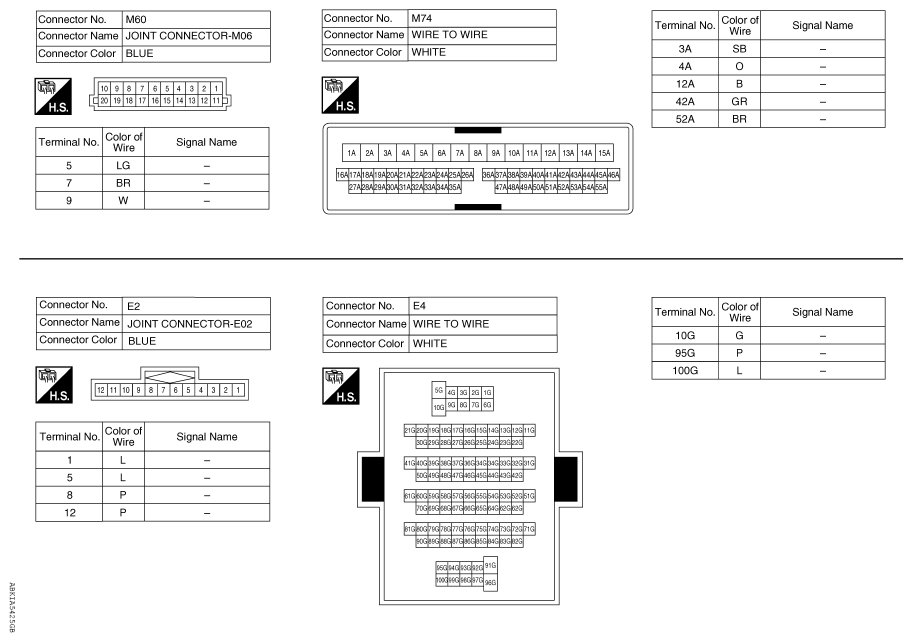

Fig 3: Vehicle Security System Connector End Views - Without Intelligent Key (3 Of 9)
G09460213Courtesy of NISSAN NORTH AMERICA, INC.

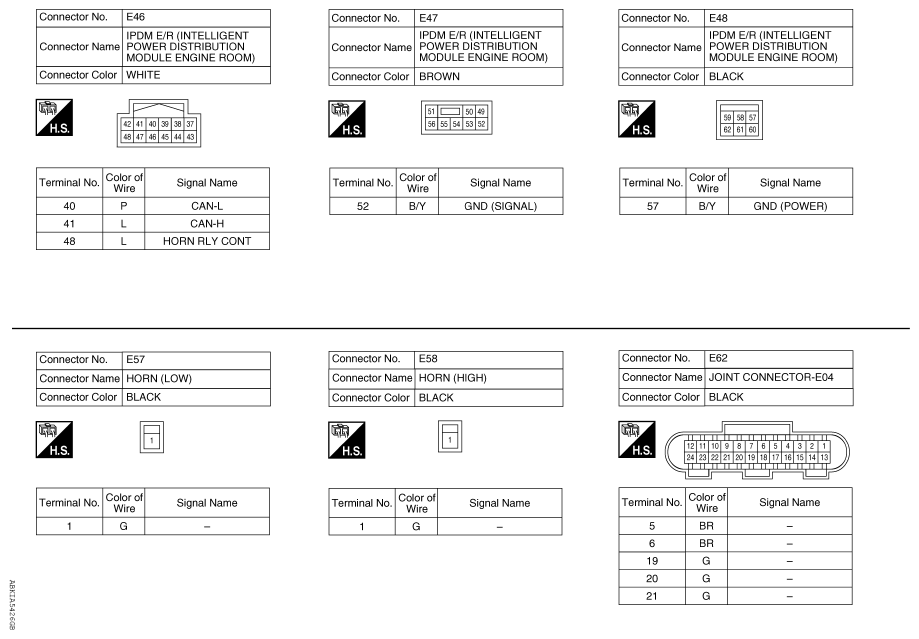

Fig 4: Vehicle Security System Connector End Views - Without Intelligent Key (4 Of 9)
G09460214Courtesy of NISSAN NORTH AMERICA, INC.
Fig 5: Vehicle Security System Connector End Views - Without Intelligent Key (5 Of 9)
G08991082Courtesy of NISSAN NORTH AMERICA, INC.

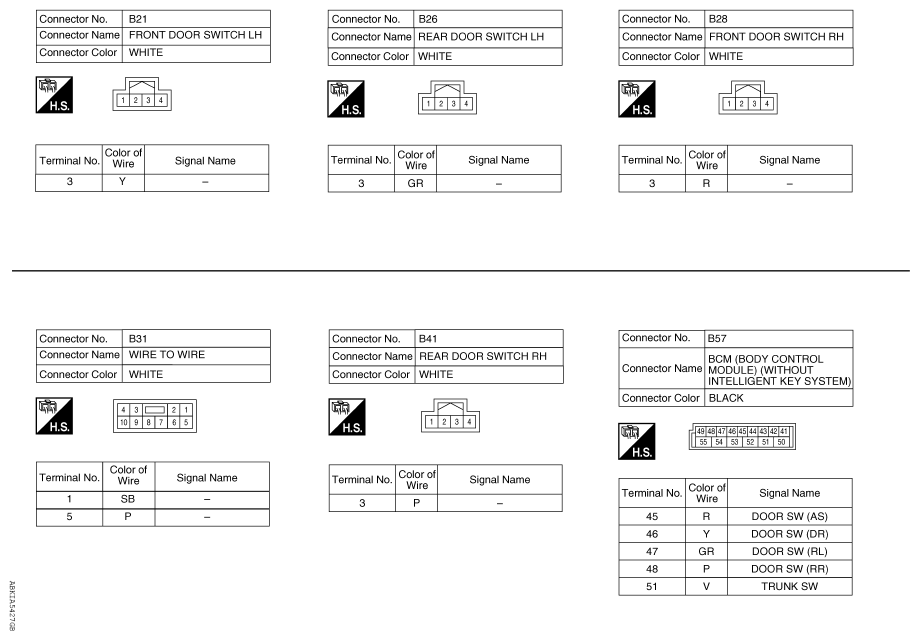

Fig 6: Vehicle Security System Connector End Views - Without Intelligent Key (6 Of 9)
G09460216Courtesy of NISSAN NORTH AMERICA, INC.
Fig 7: Vehicle Security System Connector End Views - Without Intelligent Key (7 Of 9)
G09460217Courtesy of NISSAN NORTH AMERICA, INC.

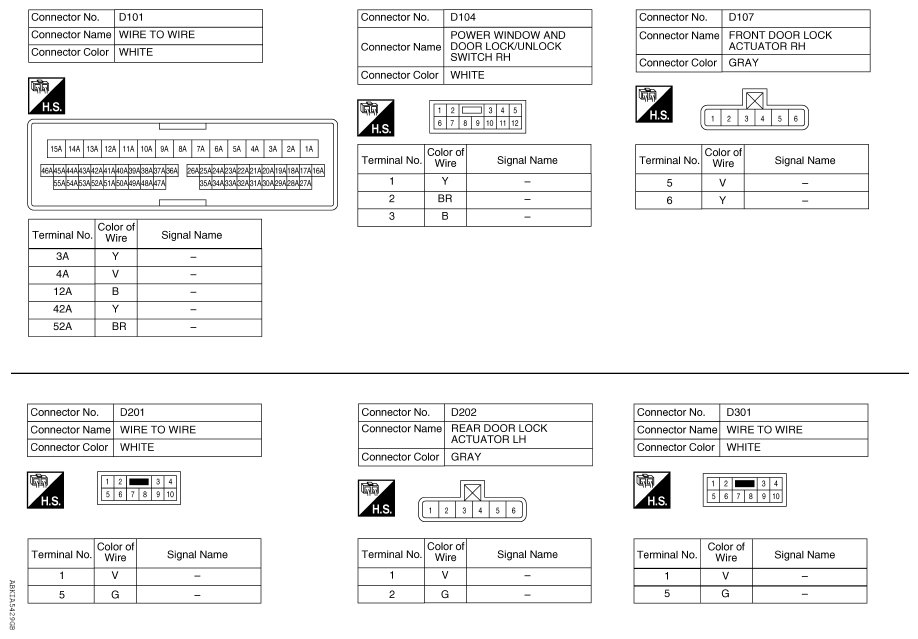

Fig 8: Vehicle Security System Connector End Views - Without Intelligent Key (8 Of 9)
G09460218Courtesy of NISSAN NORTH AMERICA, INC.
Fig 9: Vehicle Security System Connector End Views - Without Intelligent Key (9 Of 9)
G08991086Courtesy of NISSAN NORTH AMERICA, INC.
