DTC Detection Logic

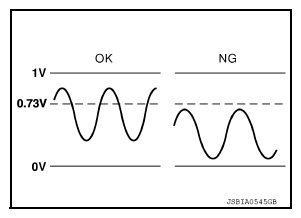

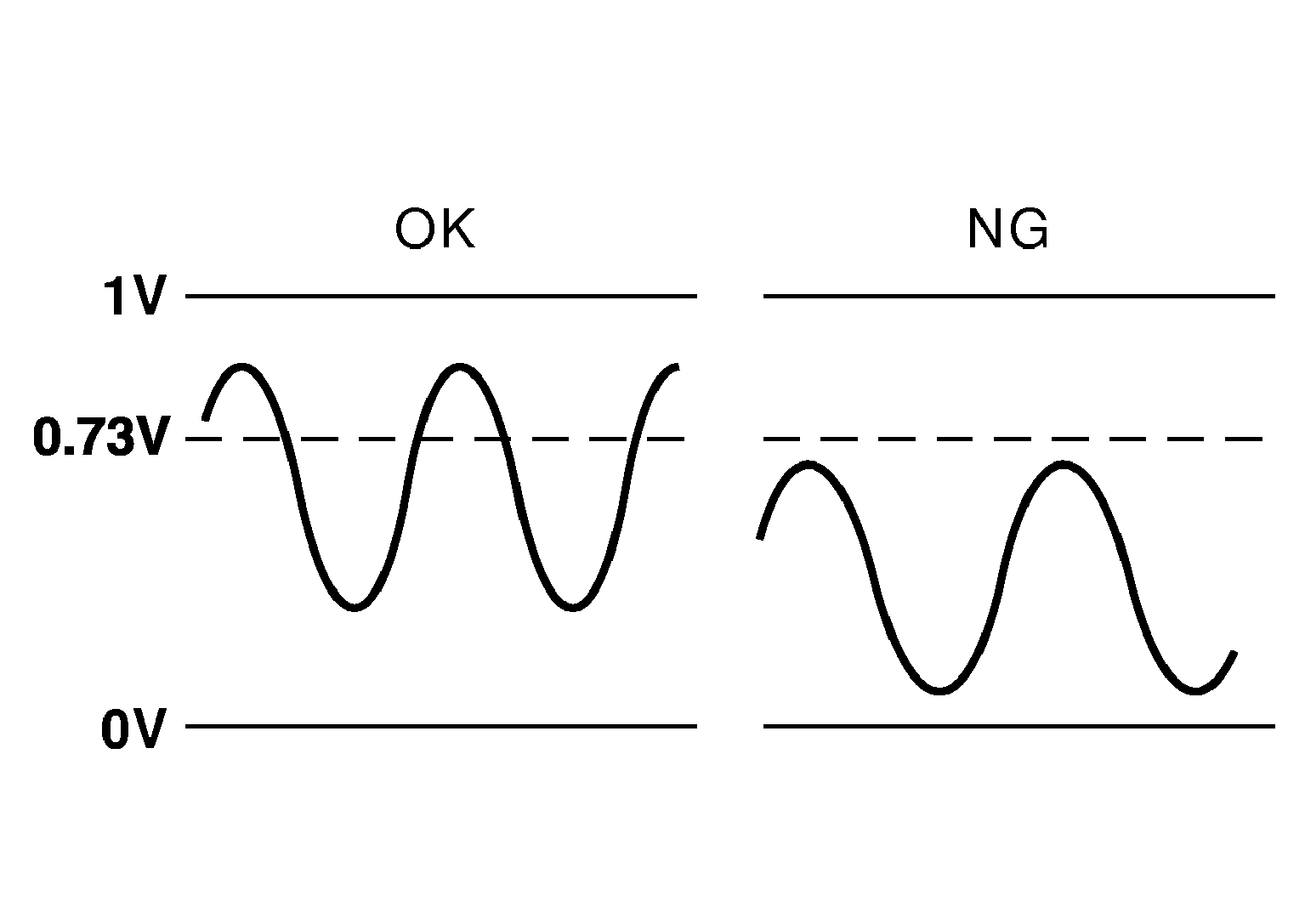

The heated oxygen sensor 2 has a much longer switching time between rich and lean than the air fuel ratio (A/F) sensor 1. The oxygen storage capacity of the three way catalyst (manifold) causes the longer switching time. To judge the malfunctions of heated oxygen sensor 2, ECM monitors whether the maximum voltage of the sensor is sufficiently high during the various driving condition such as fuel-cut.
| DTC No. | CONSULT screen terms (Trouble diagnosis content) | DTC detecting condition | Possible cause |
|---|---|---|---|
| P0137 | HO2S2 (B1) (O2 sensor circuit low voltage bank 1 sensor 2) |
The maximum voltage from the heated oxygen sensor 2 is not reached to the specified voltage. |
|
