Exploded View

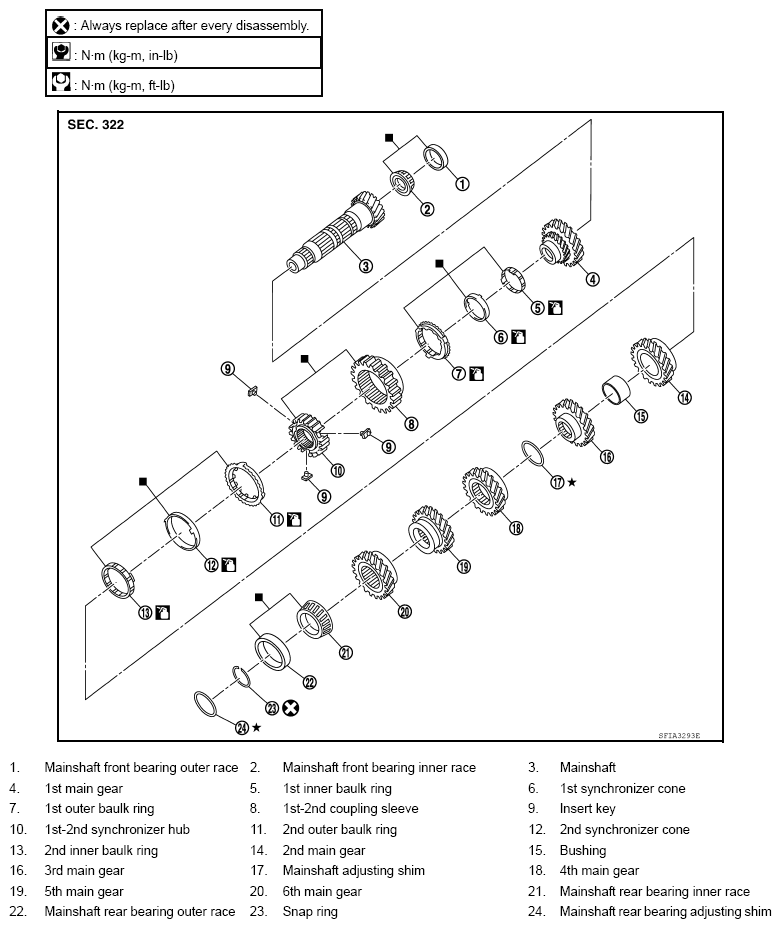

Fig 1: Exploded View Of Mainshaft And Gear
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
