Connector End Views

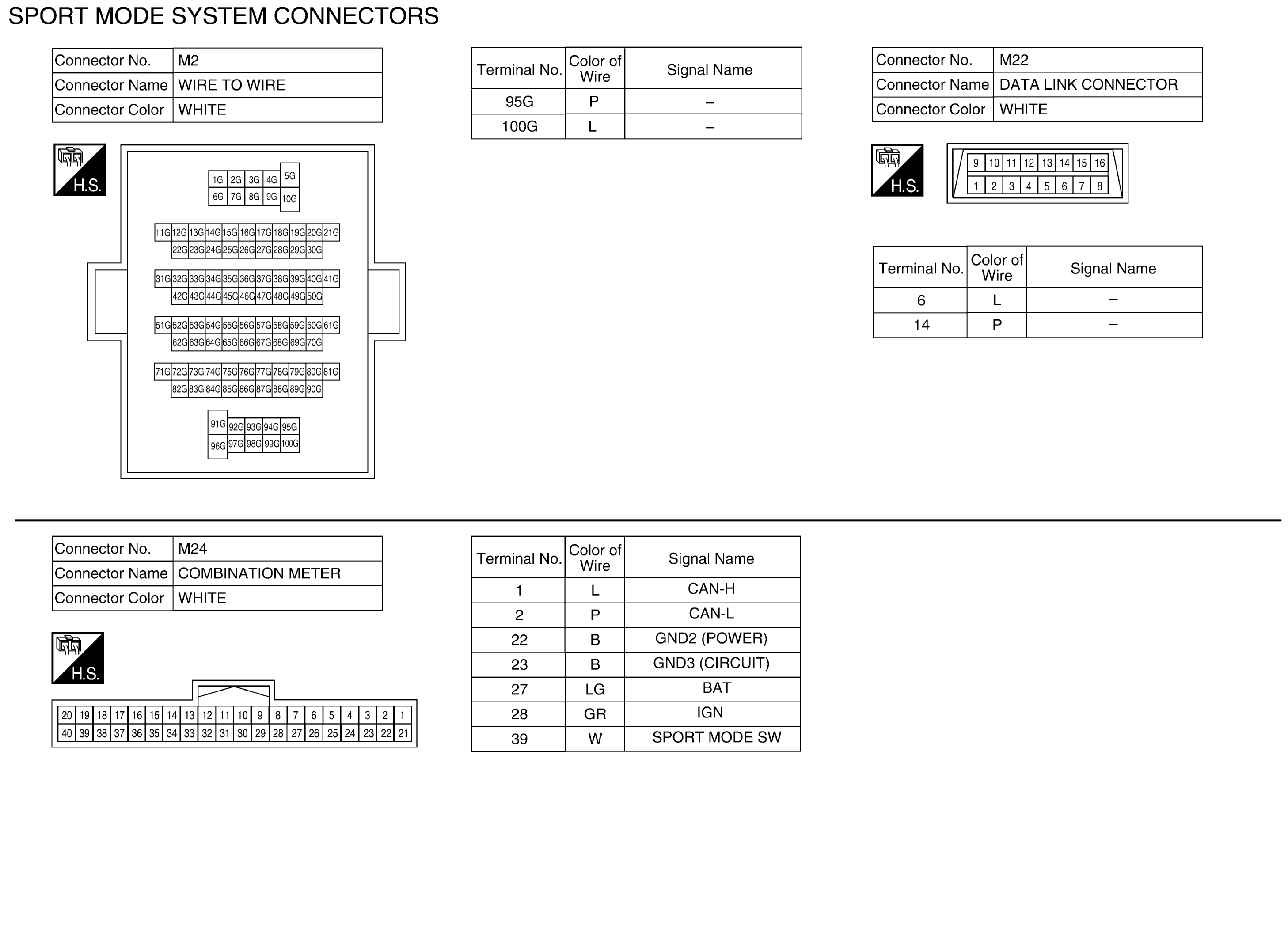

Fig 1: Sport Mode System Connector End Views (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: Sport Mode System Connector End Views (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 3: Sport Mode System Connector End Views (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 4: Sport Mode System Connector End Views (4 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
