Exploded View

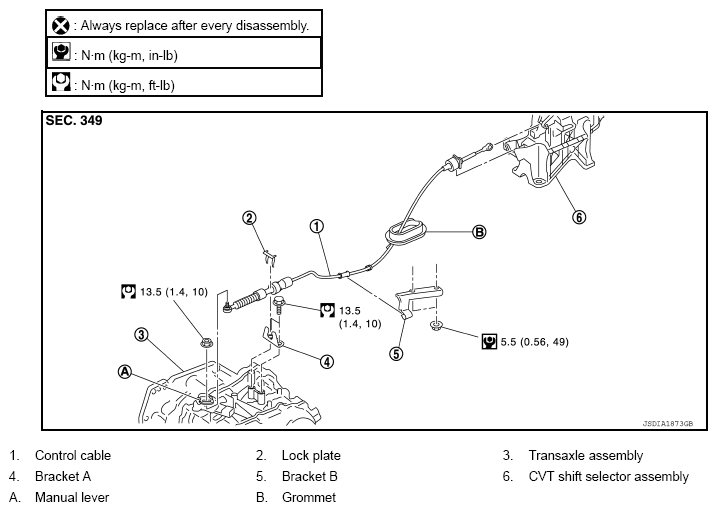

Fig 1: Exploded View Of Control Cable
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
