DRIVER SIDE: Exploded View

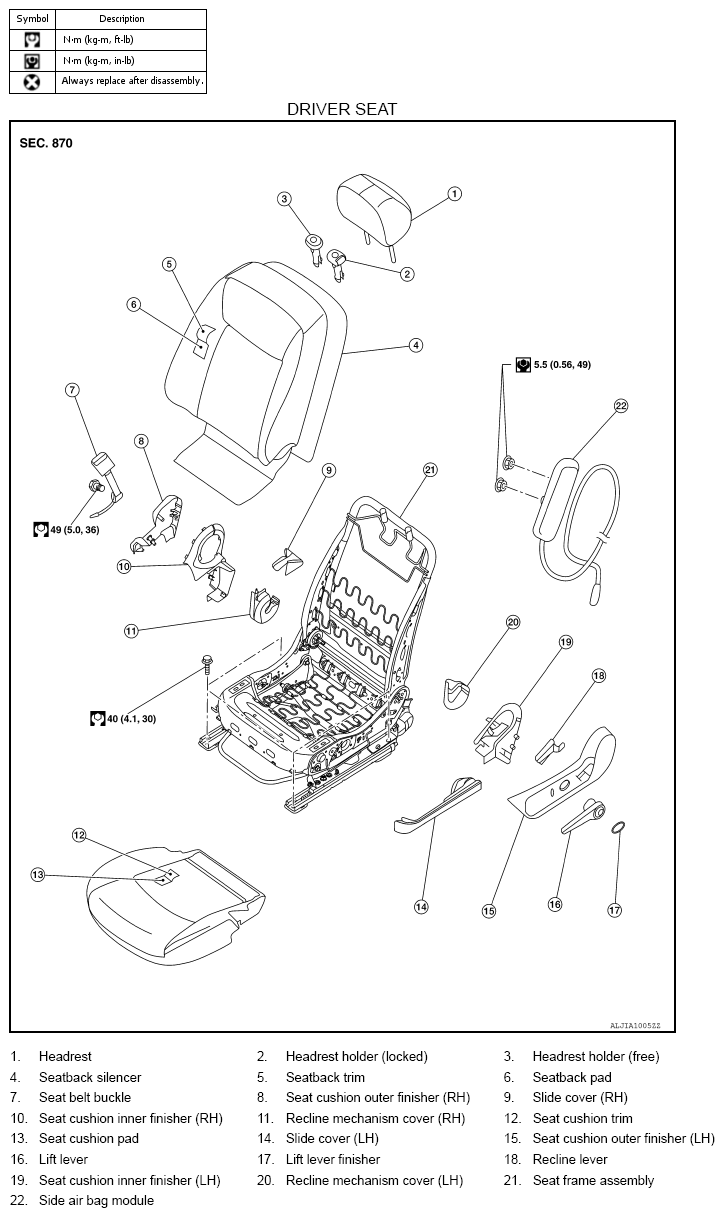

Fig 1: Exploded View Of Front Seat (Driver Seat) With Torque Specifications
G09459773Courtesy of NISSAN NORTH AMERICA, INC.
