Key Lock Mechanism

The key is not set to LOCK when the selector lever is not selected to P position. This prevents the key from being removed from the key cylinder.

Key lock status

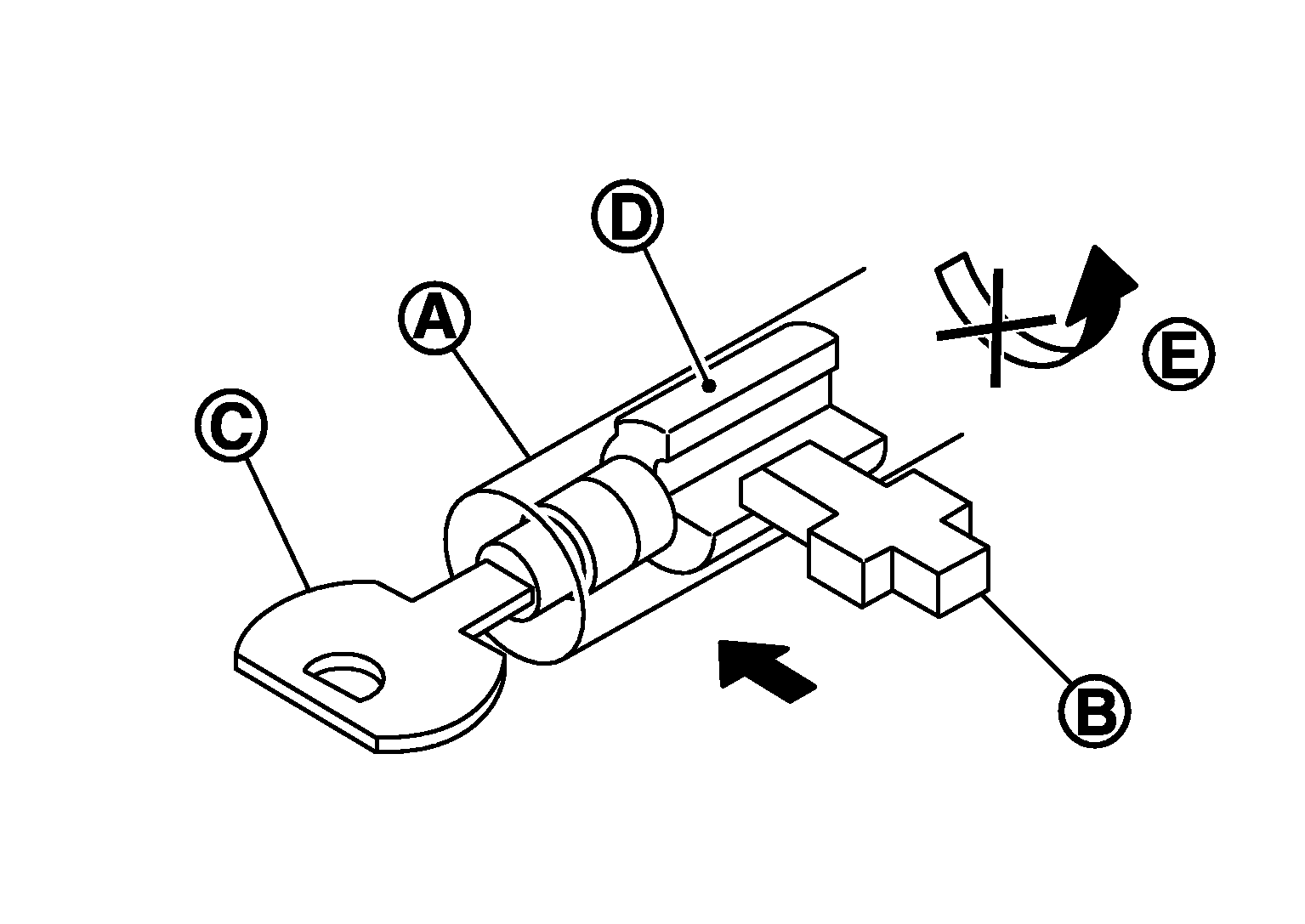

The slider (B) in the key cylinder (A) is moved to the left side of the figure when the selector lever is in any position other than "P" position. The rotator (D) that rotates together with the key (C) cannot be rotated for this reason. The key cannot be removed from the key cylinder because it cannot be turned to LOCK (E).

Fig 1: Sliding Slider In Key Cylinder Toward Left

Courtesy of NISSAN NORTH AMERICA, INC.

Key unlock status

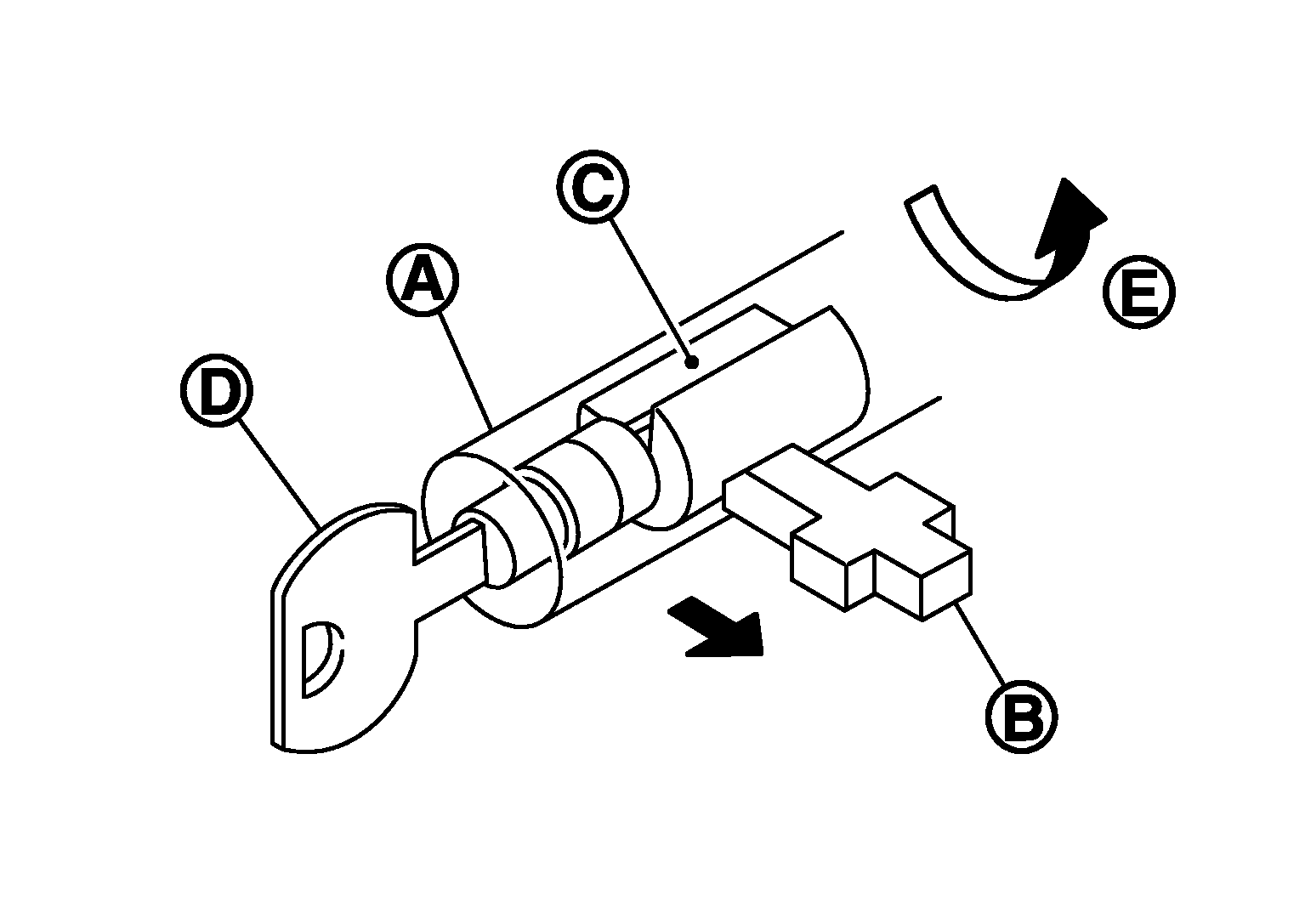

The slider (B) in the key cylinder (A) is moved to the right side of the figure when the selector lever is in "P" position and the finger is removed from the selector button. The rotator (C) can be rotated for this reason. The key (D) can be removed from the key cylinder because it can be turned to LOCK (E).

Fig 2: Sliding Slider In Key Cylinder Toward Right

Courtesy of NISSAN NORTH AMERICA, INC.
