Method Of Starting

  1. Turn the ignition ON.
  2. Turn the audio system OFF.
  3. While pressing the FORWARD SEEK button, turn the TUNE-dial counterclockwise 3 or more clicks, then clockwise 3 or more clicks, then counterclockwise 3 or more clicks. Shifting from current screen to previous screen is performed by pressing BACK button.

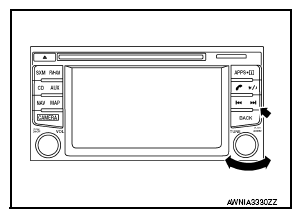

    Fig 1: Pressing Back Button
    G09148738Courtesy of NISSAN NORTH AMERICA, INC.
  4. The trouble diagnosis initial screen is displayed, and Version, User Config, Radio, System State or Self Test can be selected.
    Fig 2: Display - Trouble Diagnosis Initial Screen
    G08687055Courtesy of NISSAN NORTH AMERICA, INC.
