Connector End Views

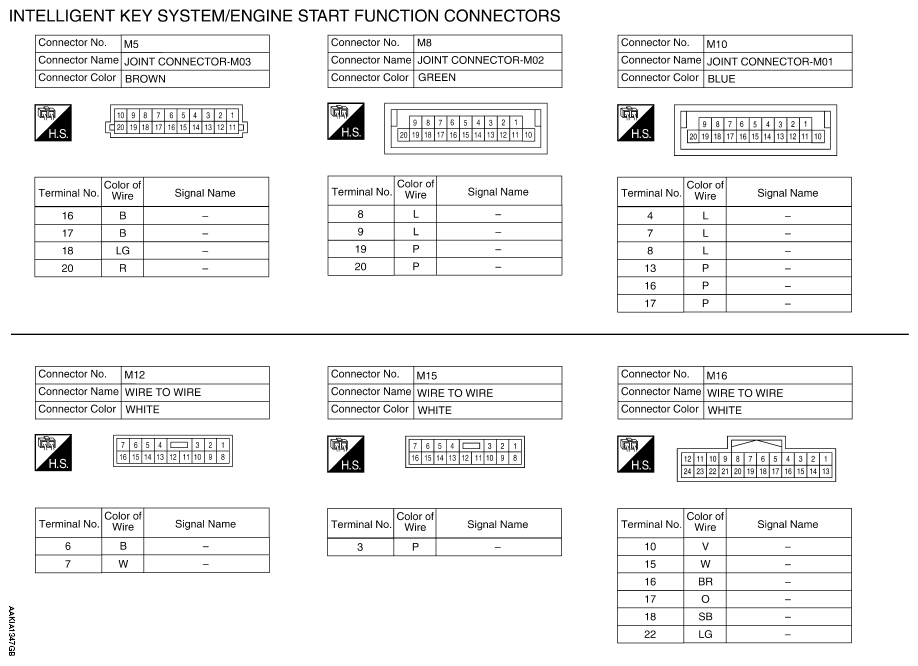

Fig 1: Intelligent Key System/Engine Start Function Connector End View (1 Of 11)
G09604430Courtesy of NISSAN NORTH AMERICA, INC.

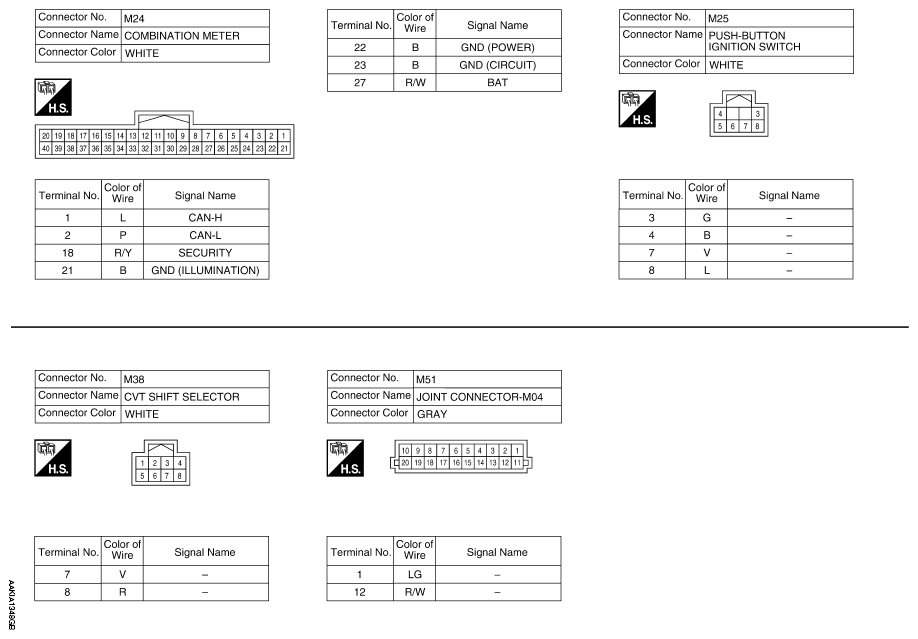

Fig 2: Intelligent Key System/Engine Start Function Connector End View (2 Of 11)
G09604431Courtesy of NISSAN NORTH AMERICA, INC.

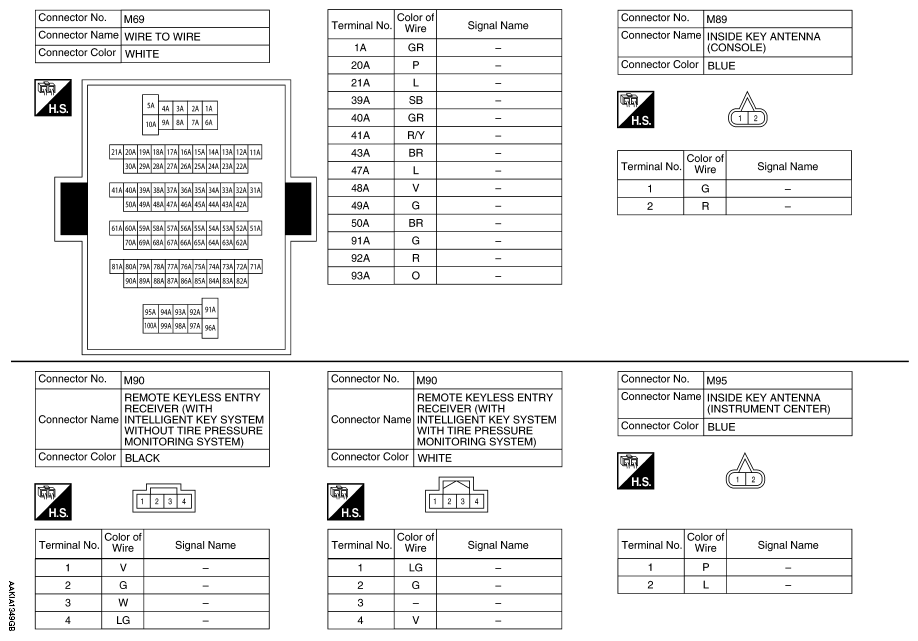

Fig 3: Intelligent Key System/Engine Start Function Connector End View (3 Of 11)
G09604432Courtesy of NISSAN NORTH AMERICA, INC.

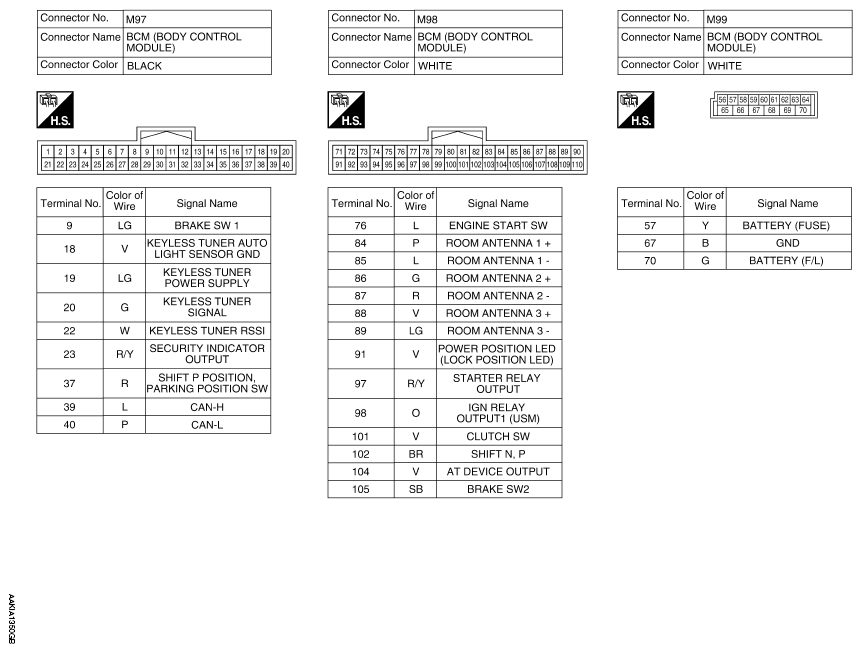

Fig 4: Intelligent Key System/Engine Start Function Connector End View (4 Of 11)
G09604433Courtesy of NISSAN NORTH AMERICA, INC.

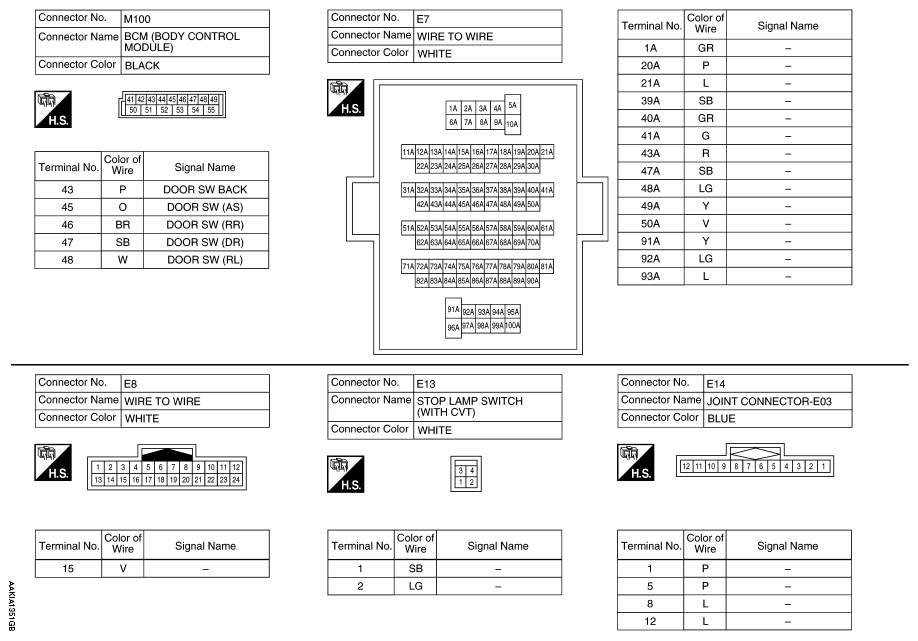

Fig 5: Intelligent Key System/Engine Start Function Connector End View (5 Of 11)
G09604434Courtesy of NISSAN NORTH AMERICA, INC.

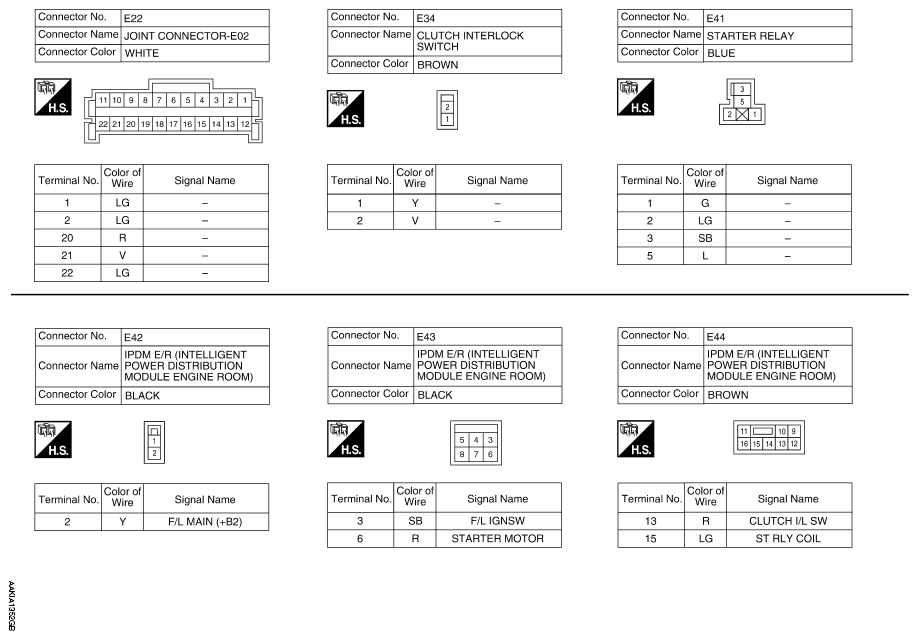

Fig 6: Intelligent Key System/Engine Start Function Connector End View (6 Of 11)
G09604435Courtesy of NISSAN NORTH AMERICA, INC.

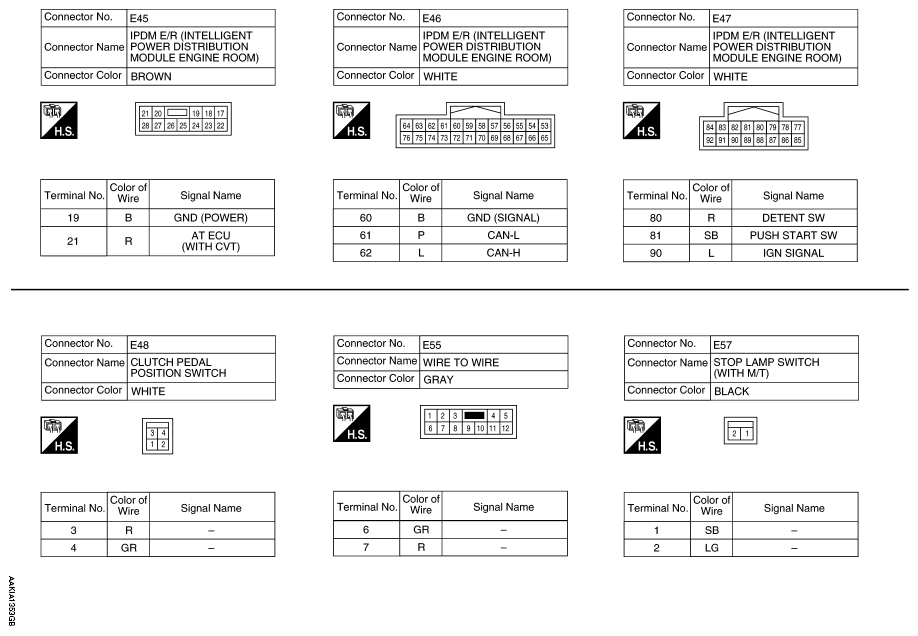

Fig 7: Intelligent Key System/Engine Start Function Connector End View (7 Of 11)
G09604436Courtesy of NISSAN NORTH AMERICA, INC.

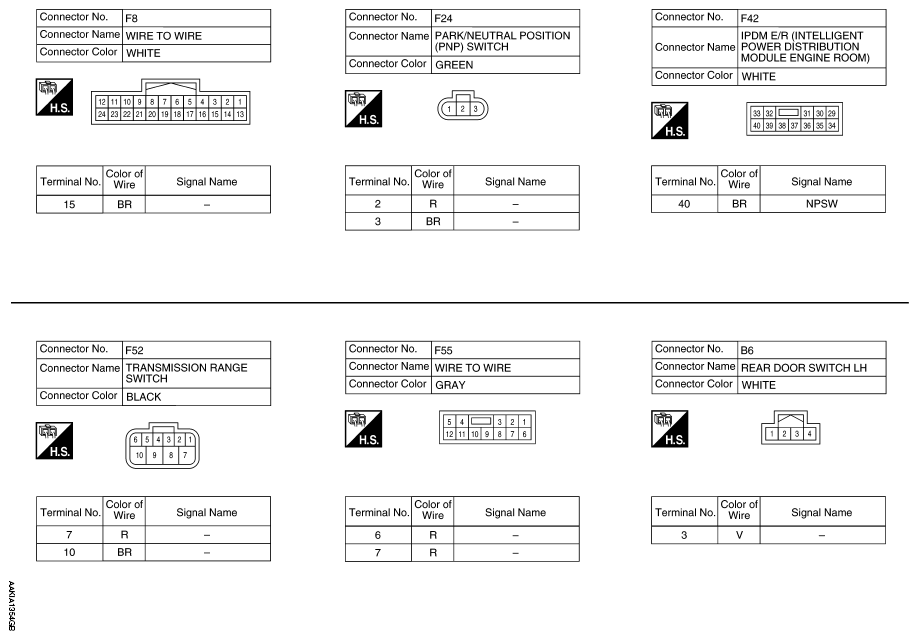

Fig 8: Intelligent Key System/Engine Start Function Connector End View (8 Of 11)
G09604437Courtesy of NISSAN NORTH AMERICA, INC.

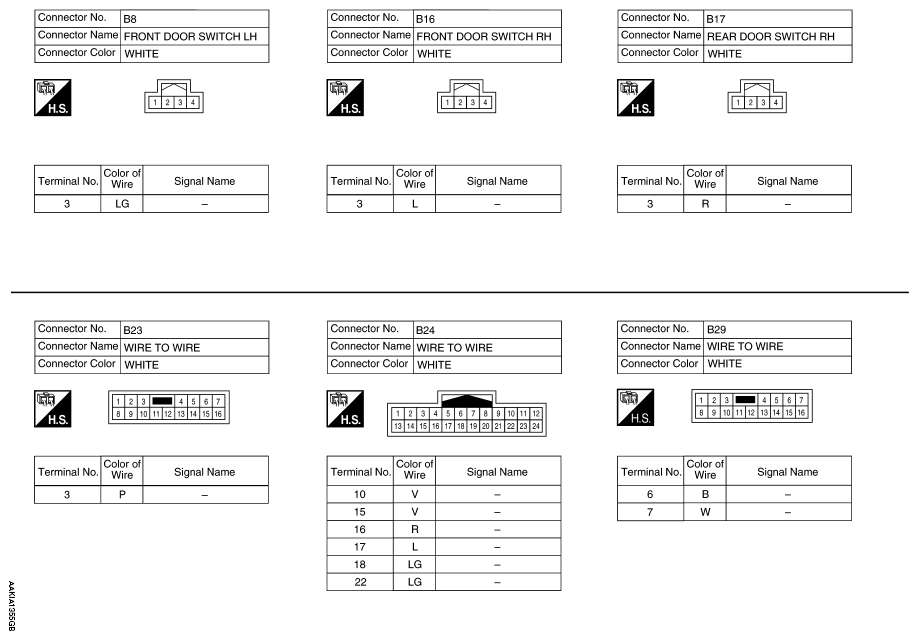

Fig 9: Intelligent Key System/Engine Start Function Connector End View (9 Of 11)
G09604438Courtesy of NISSAN NORTH AMERICA, INC.

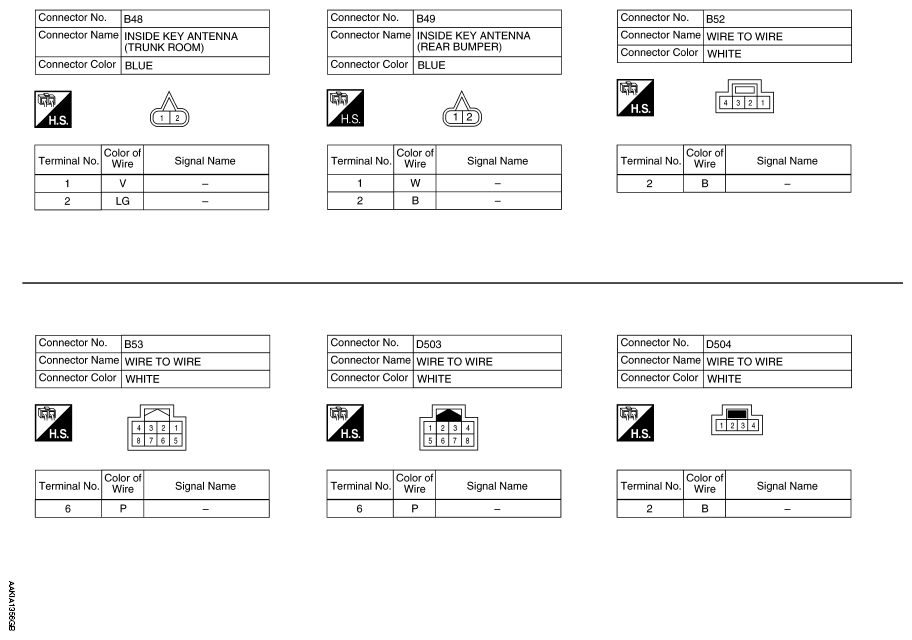

Fig 10: Intelligent Key System/Engine Start Function Connector End View (10 Of 11)
G09604439Courtesy of NISSAN NORTH AMERICA, INC.

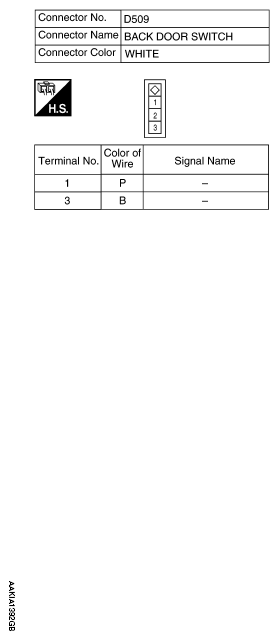

Fig 11: Intelligent Key System/Engine Start Function Connector End View (11 Of 11)
G09604440Courtesy of NISSAN NORTH AMERICA, INC.
