DRIVER SIDE: Exploded View

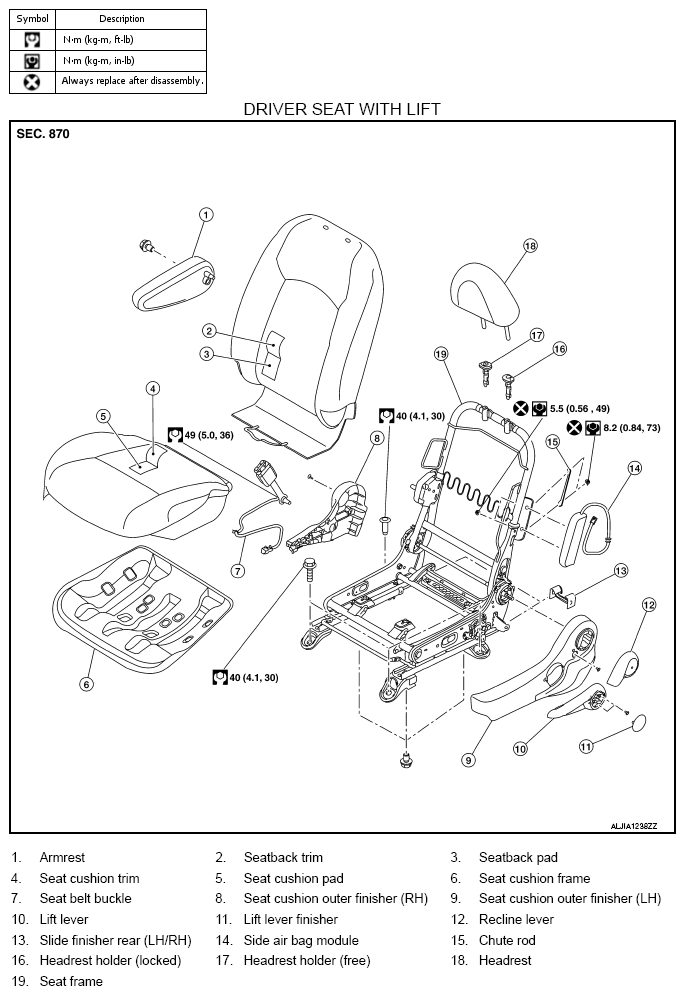

Fig 1: Exploded View Of Front Seat (Driver Seat With Lift) With Torque Specifications
G09604067Courtesy of NISSAN NORTH AMERICA, INC.

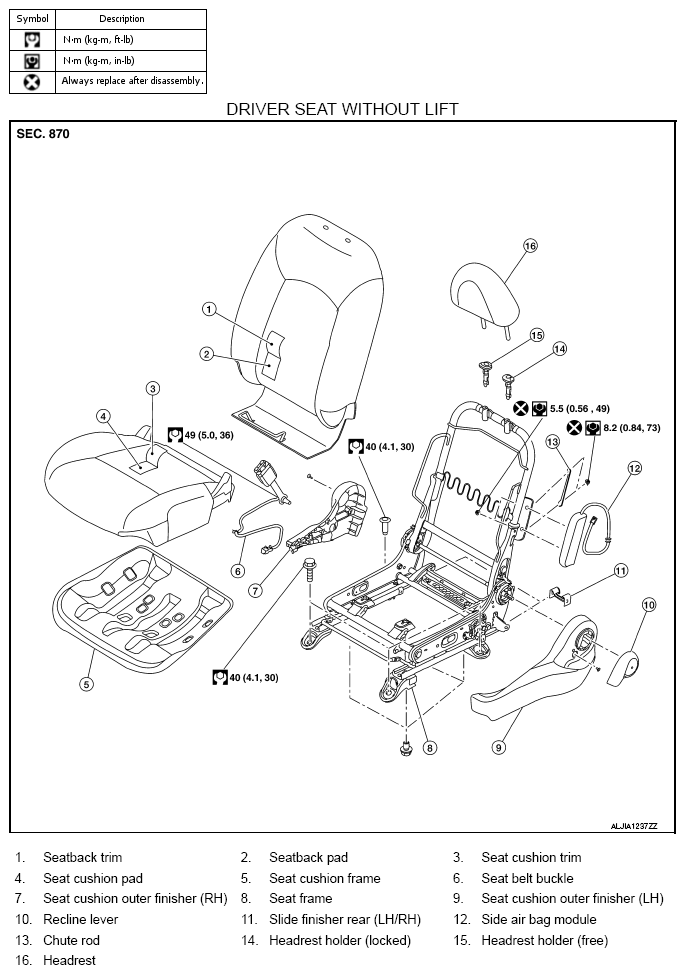

Fig 2: Exploded View Of Front Seat (Driver Seat Without Lift) With Torque Specifications
G09604068Courtesy of NISSAN NORTH AMERICA, INC.
