System - Basic Engine Control System

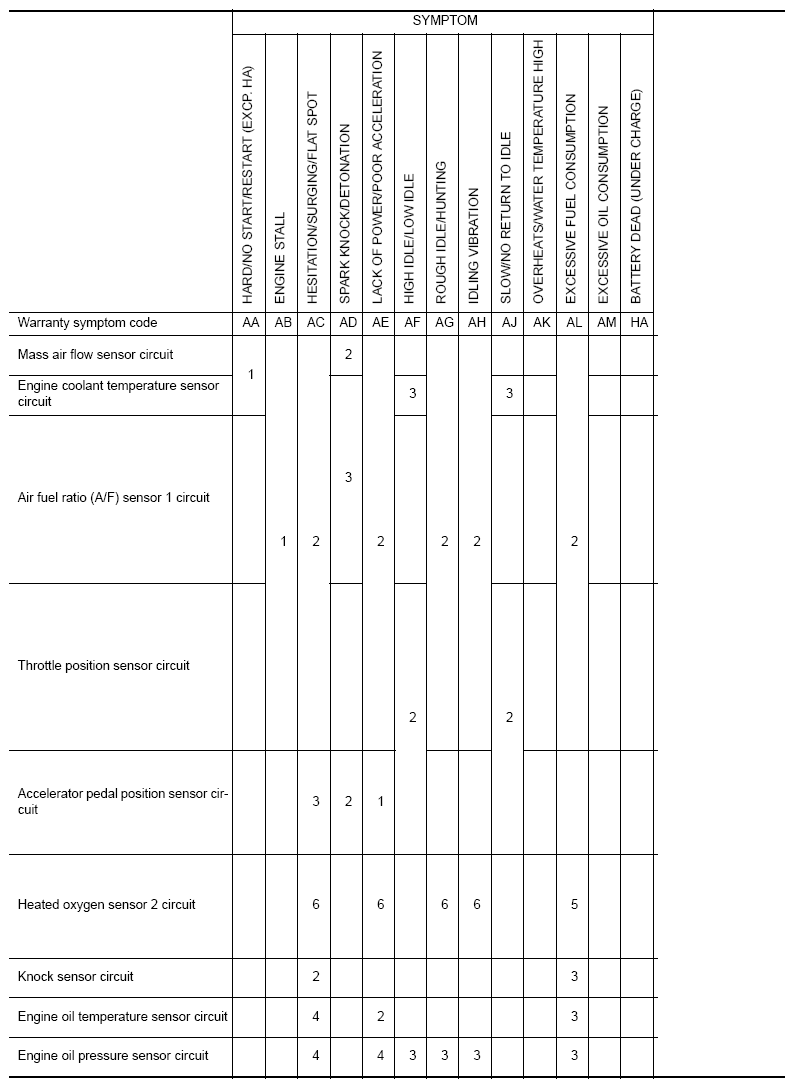

Fig 1: Symptoms Chart - System - Basic Engine Control System (1 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

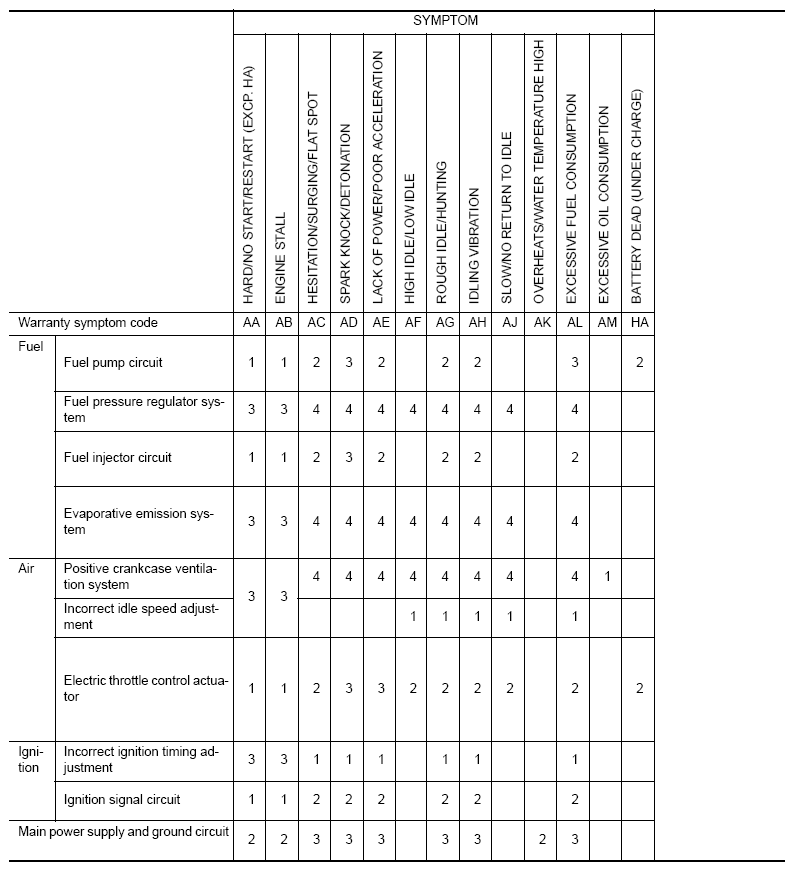

Fig 2: Symptoms Chart - System - Basic Engine Control System (2 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.

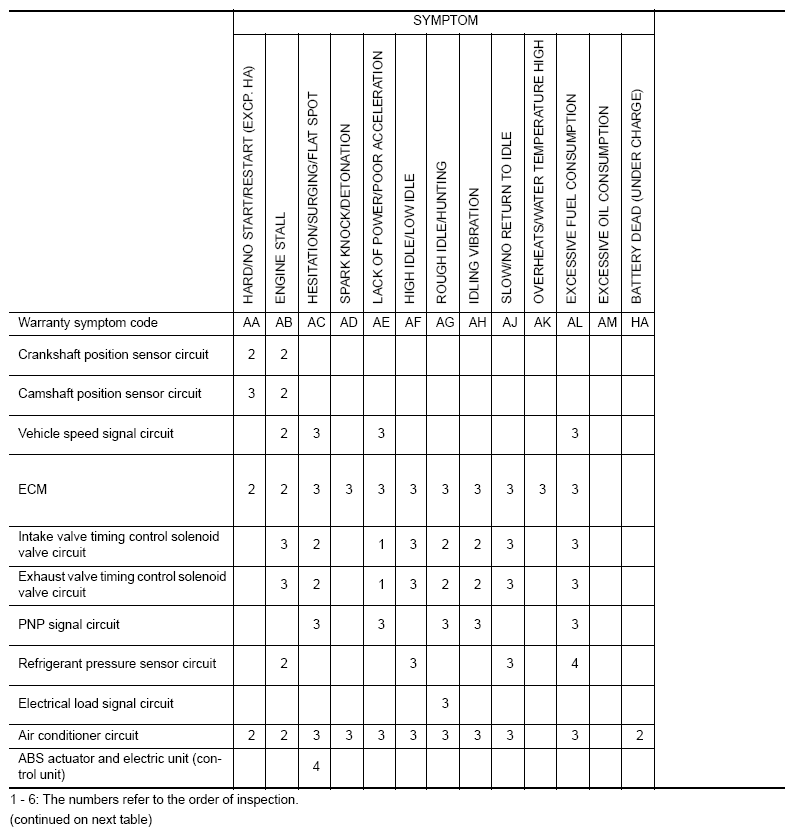

Fig 3: Symptoms Chart - System - Basic Engine Control System (3 Of 3)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
