Connector End Views

Fig 1: NVIS Connector End View - With Intelligent Key System (1 Of 7)
G09604443Courtesy of NISSAN NORTH AMERICA, INC.

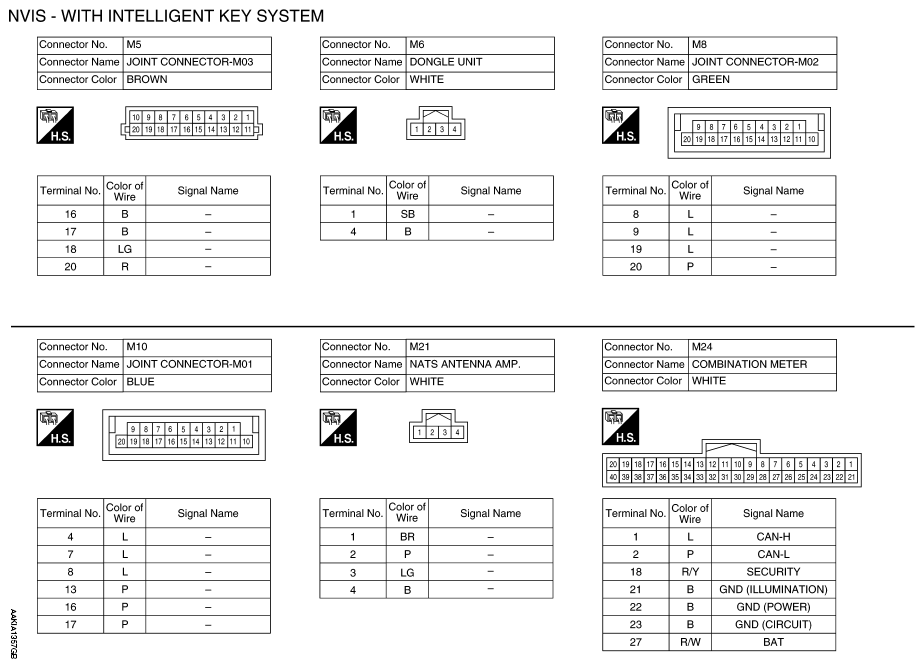

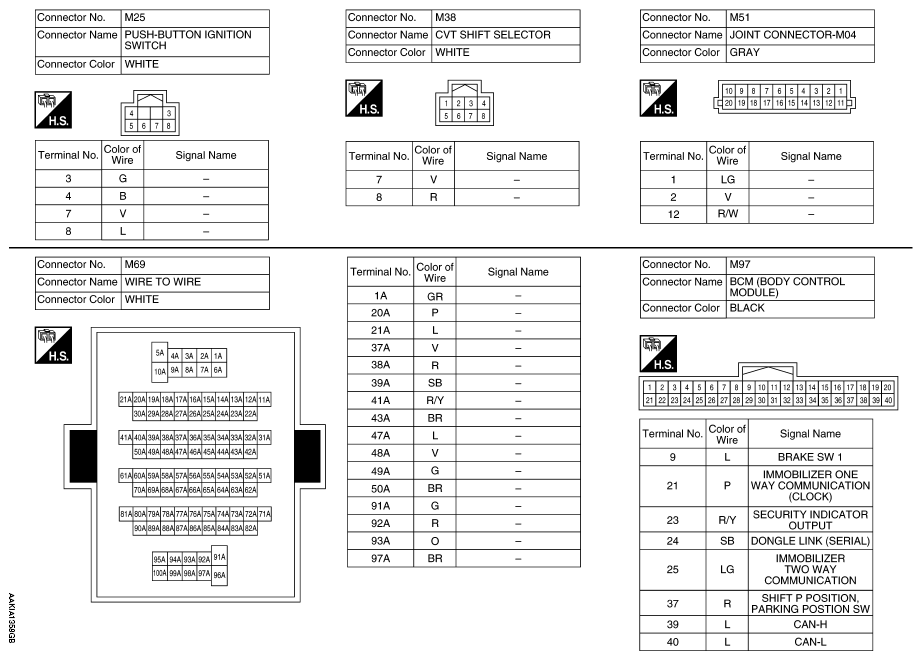

Fig 2: NVIS Connector End View - With Intelligent Key System (2 Of 7)
G09604444Courtesy of NISSAN NORTH AMERICA, INC.

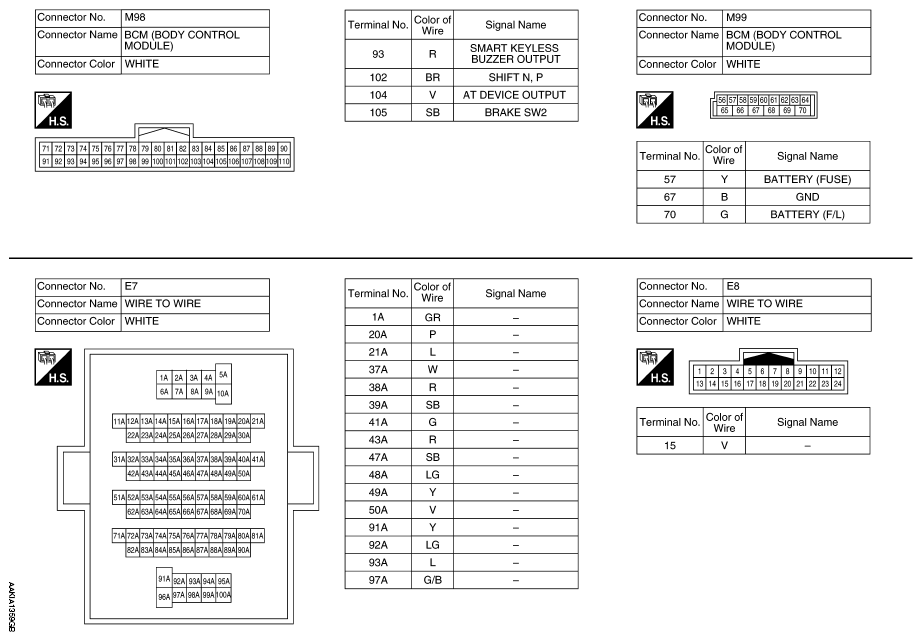

Fig 3: NVIS Connector End View - With Intelligent Key System (3 Of 7)
G09604445Courtesy of NISSAN NORTH AMERICA, INC.

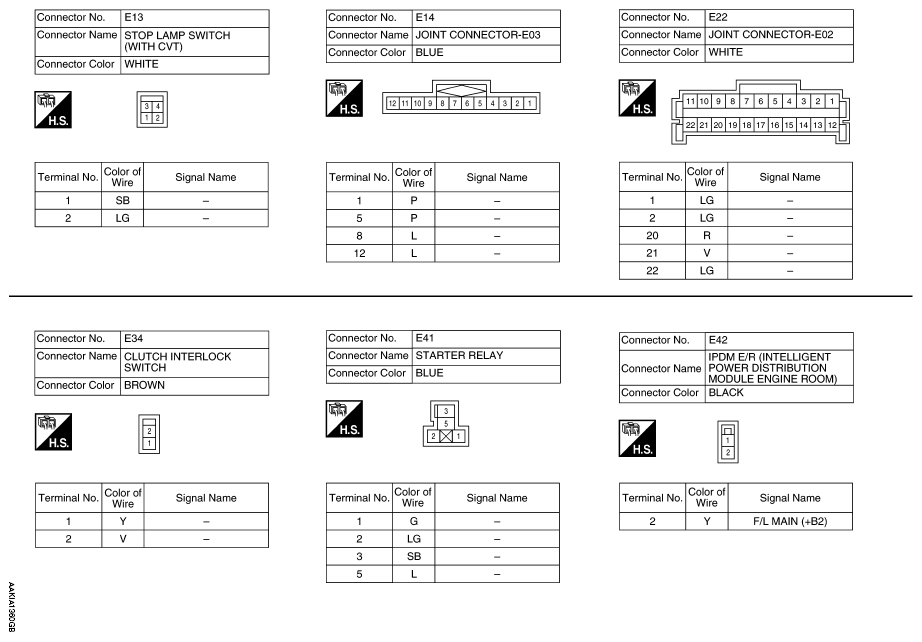

Fig 4: NVIS Connector End View - With Intelligent Key System (4 Of 7)
G09604446Courtesy of NISSAN NORTH AMERICA, INC.

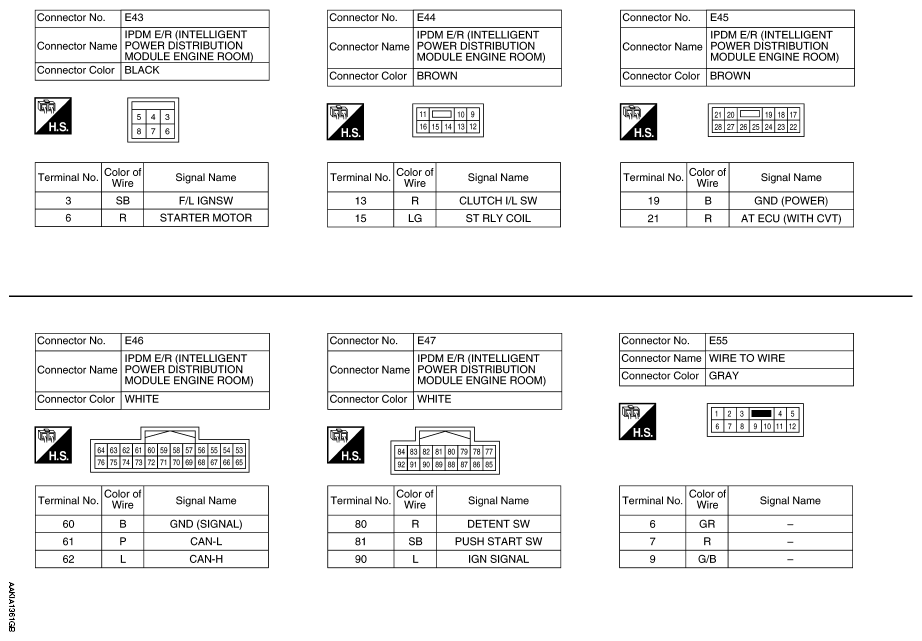

Fig 5: NVIS Connector End View - With Intelligent Key System (5 Of 7)
G09604447Courtesy of NISSAN NORTH AMERICA, INC.

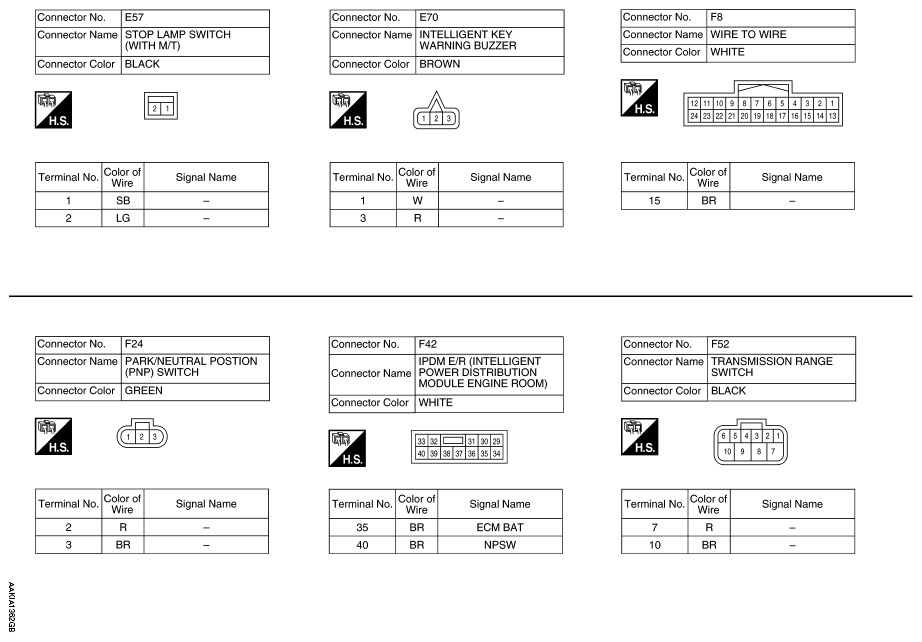

Fig 6: NVIS Connector End View - With Intelligent Key System (6 Of 7)
G09604448Courtesy of NISSAN NORTH AMERICA, INC.

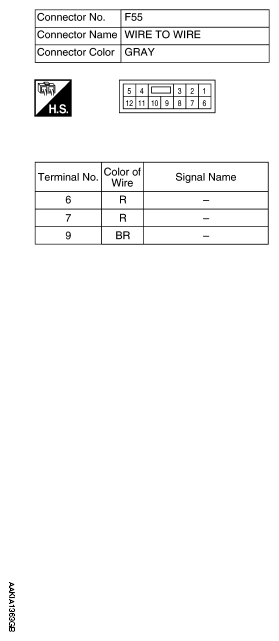

Fig 7: NVIS Connector End View - With Intelligent Key System (7 Of 7)
G09604449Courtesy of NISSAN NORTH AMERICA, INC.
