Combination Switch Matrix (Without Variable Intermittent Wipers)

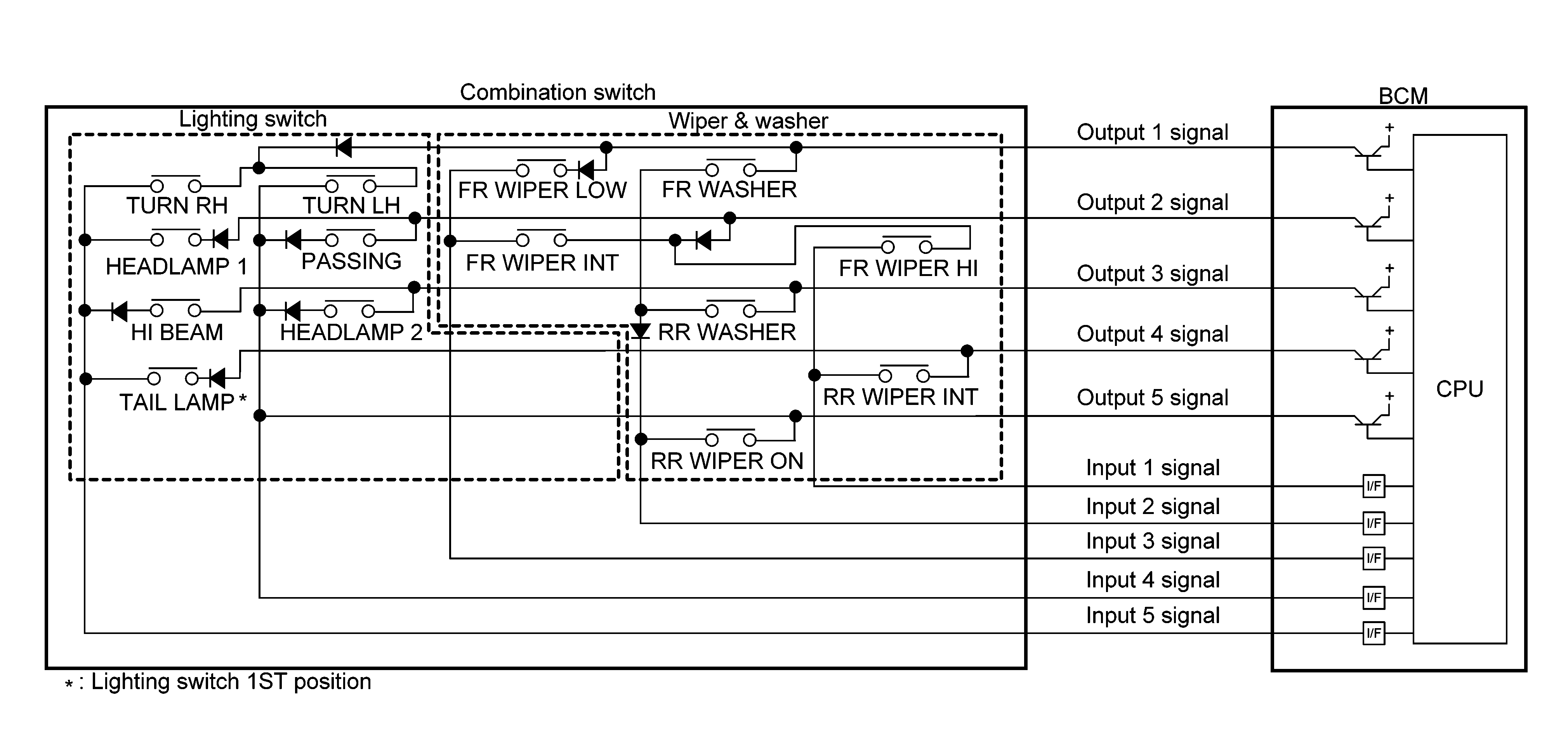

Fig 1: Combination Switch - Circuit Diagram (Without Variable Intermittent Wipers)

Courtesy of NISSAN NORTH AMERICA, INC.

COMBINATION SWITCH INPUT-OUTPUT SYSTEM LIST

System	INPUT 1	INPUT 2	INPUT 3	INPUT 4	INPUT 5
OUTPUT 1	-	FR WASHER	FR WIPER LOW	TURN LH	TURN RH
OUTPUT 2	FR WIPER HI	-	FR WIPER INT	PASSING	HEADLAMP 1
OUTPUT 3	-	RR WASHER	-	HEADLAMP 2	HI BEAM
OUTPUT 4	RR WIPER INT	-	-	-	TAIL LAMP
OUTPUT 5	-	RR WIPER ON	-	-	-
