COMBINATION SWITCH READING SYSTEM: System Description
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

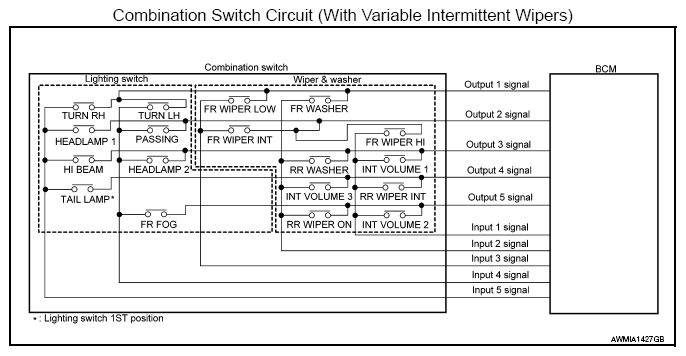

Fig 1: Combination Switch - Circuit Diagram (With Variable Intermittent Wipers)
Courtesy of NISSAN NORTH AMERICA, INC.

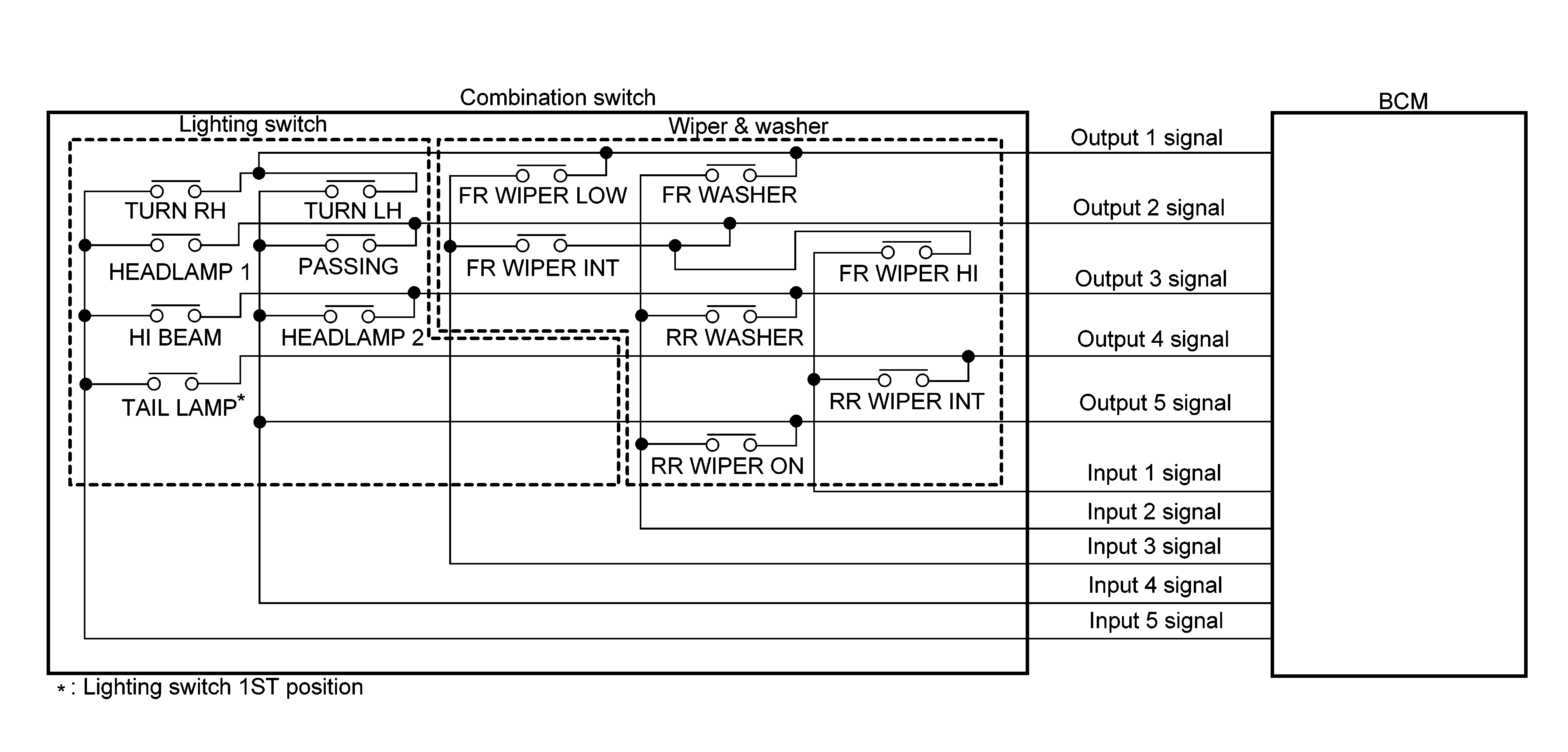

Fig 2: Combination Switch - Circuit Diagram (Without Variable Intermittent Wipers)
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
