Method Of Starting

  1. Turn the ignition ON.
  2. Turn the audio system OFF.
  3. While pressing the preset 1 button, turn the volume control dial clockwise or counterclockwise for 40 clicks or more. Shifting from current screen to previous screen is performed by pressing BACK button.

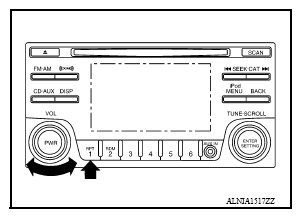

    Fig 1: Turning Volume Control Dial Clockwise
    G09616944Courtesy of NISSAN NORTH AMERICA, INC.
  4. The trouble diagnosis initial screen is displayed, and Self Diagnosis or Confirmation/Adjustment can be selected.
    Fig 2: Screen Display - Self-Diagnosis And Confirmation/Adjustment
    G05219839Courtesy of NISSAN NORTH AMERICA, INC.
