Versa Note S, Standard Trans
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
Power Control System (IPDM/Er) (With I-Key)
>>
Ecu Diagnosis Information
>>
IPDM E/R (Intelligent Power Distribution Module Engine Room)
>>
Reference Value
>>
Terminal Layout
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Terminal Layout

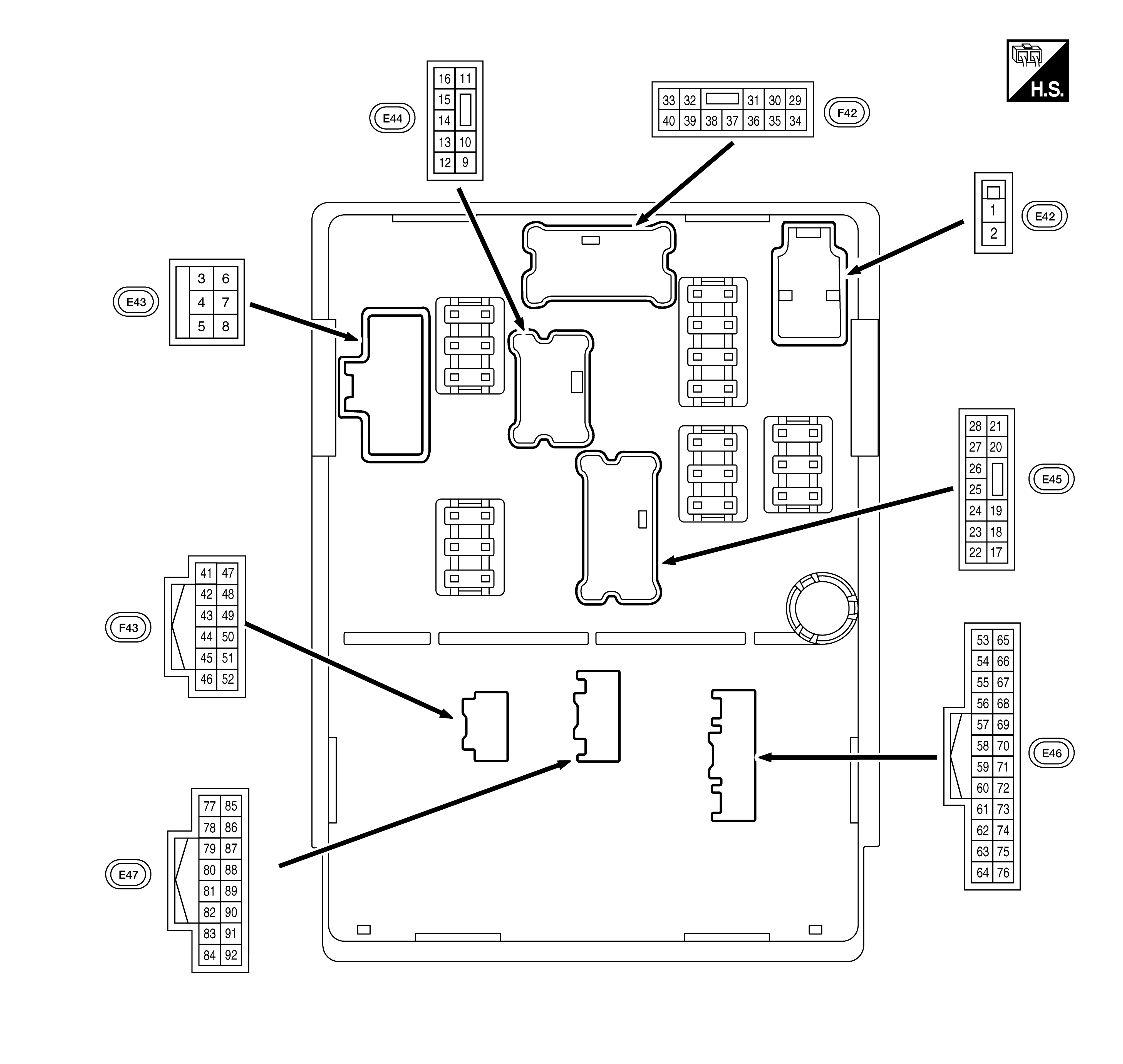

Fig 1: Intelligent Power Distribution Module Engine Room Connector End Views
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
