STARTING SYSTEM (WITH INTELLIGENT KEY): System Diagram

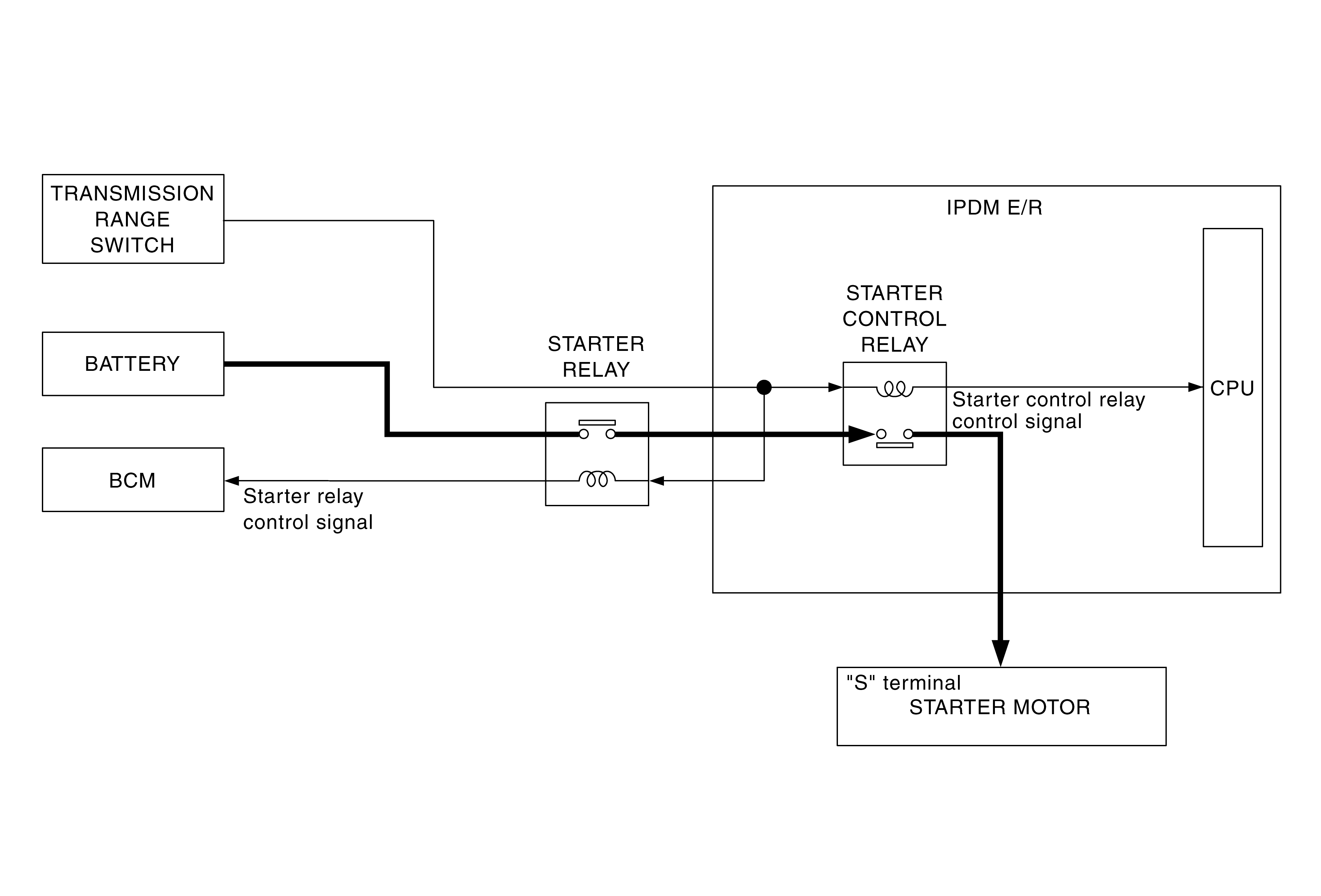

Fig 1: Starting (With Intelligent Key) - System Diagram
G09054437Courtesy of NISSAN NORTH AMERICA, INC.
