Vacuum Hose Drawing

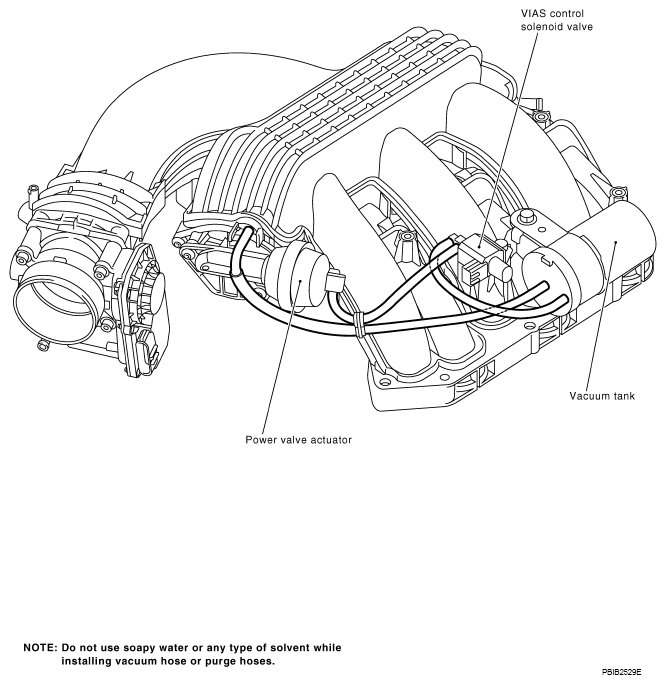

Fig 1: Identifying Power Valve Actuator, VIAS Control Solenoid Valve And Vacuum Tank
G09522933Courtesy of NISSAN NORTH AMERICA, INC.

Refer to  "SYSTEM DIAGRAM " for Vacuum Control System.
