Physical Values

Terminal No. (Wire color)		Description		Condition		Value (Approx.)
+	-	Signal name	Input/Output	Condition		Value (Approx.)
1 (BR)	Ground	Washer fluid level switch	Input	Ignition switch ON	When washer fluid is low (switch closed)	0 V
1 (BR)	Ground	Washer fluid level switch	Input	Ignition switch ON	When washer fluid is not low (switch open)	12 V
2 (G)	Ground	Washer signal pump to camera	Input	Ignition switch ON		5 V
3 (W)	Ground	Washer signal camera to pump	Output	Ignition switch ON		5 V
7 (P)	Ground	CAN low	-	-		-
17 (G)	Ground	SOW LED signal R	Output	While driving	LDW/BSW detected	12 V
17 (G)	Ground	SOW LED signal R	Output	While driving	LDW/BSW is not detected	0 V
20 (G)	Ground	Battery supply	Input	-	-	12 V
22 (P)	Ground	Serial ground	Output	-	-	0 V
27 (L)	Ground	CAN high	-	-	-	-
28 (R)	Ground	Reverse	Input	Ignition switch ON	Shift selector in R (reverse)	12 V
28 (R)	Ground	Reverse	Input	Ignition switch ON	Shift selector not in R (reverse)	0 V
32 (P)	Ground	Cancel SW output	Input	Ignition switch ON	Cancel switch pressed	0 V
32 (P)	Ground	Cancel SW output	Input	Ignition switch ON	Cancel switch not pressed	12 V
33 (BG)	Ground	LED input	Output	Ignition switch ON	Warning system is ON	12 V
33 (BG)	Ground	LED input	Output	Ignition switch ON	Warning system is OFF	0 V
37 (W)	Ground	SOW LED signal L	Output	While driving	LDW/BSW detected	12 V
37 (W)	Ground	SOW LED signal L	Output	While driving	LDW/BSW is not detected	0 V
39 (BG)	Ground	Ignition power supply	Input	Ignition switch ON		Battery Voltage
40 (B)	Ground	Ground	-	-		0 V
50	Ground	Shield	-	- -		0 V
51 (R)	Ground	RR CAM GND	Output	Ignition switch ON		0 V
52 (W)	Ground	RR CAM ON	Output	Ignition switch ON		6 V
53	Ground	Shield	-	- -		0 V

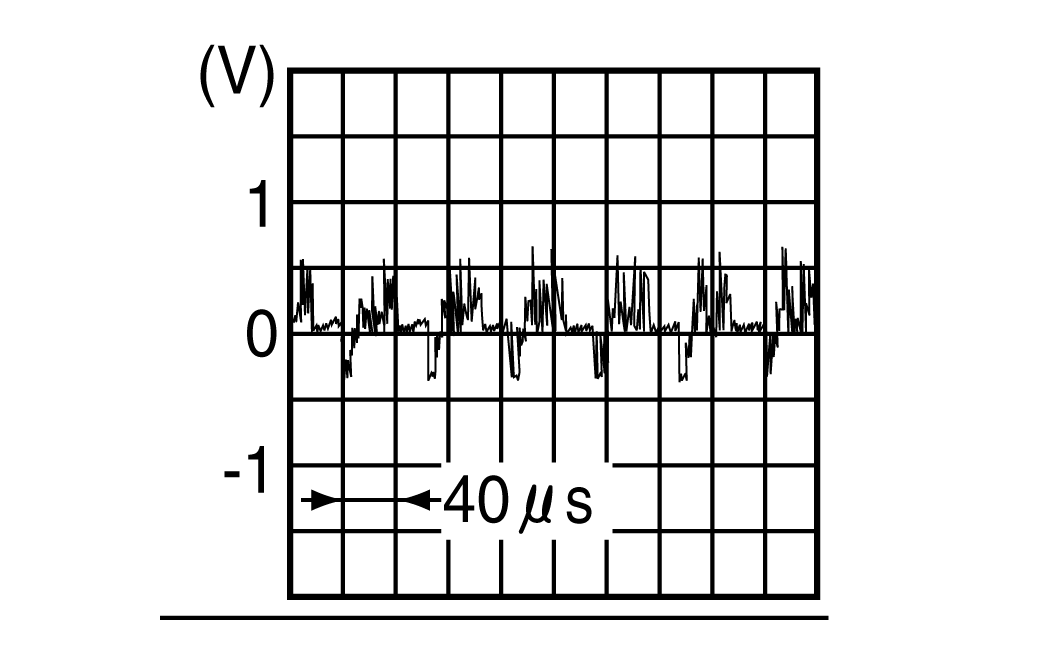

66 (B)	Ground	RR CAM COMP +	Input	Ignition switch ON		Courtesy of NISSAN NORTH AMERICA, INC.
68 (G)	Ground	RR CAM CONT	Input	Ignition switch ON		5 V
69 (B)	Ground	Camera image signal	Input	When camera image is displayed		Courtesy of NISSAN NORTH AMERICA, INC.
