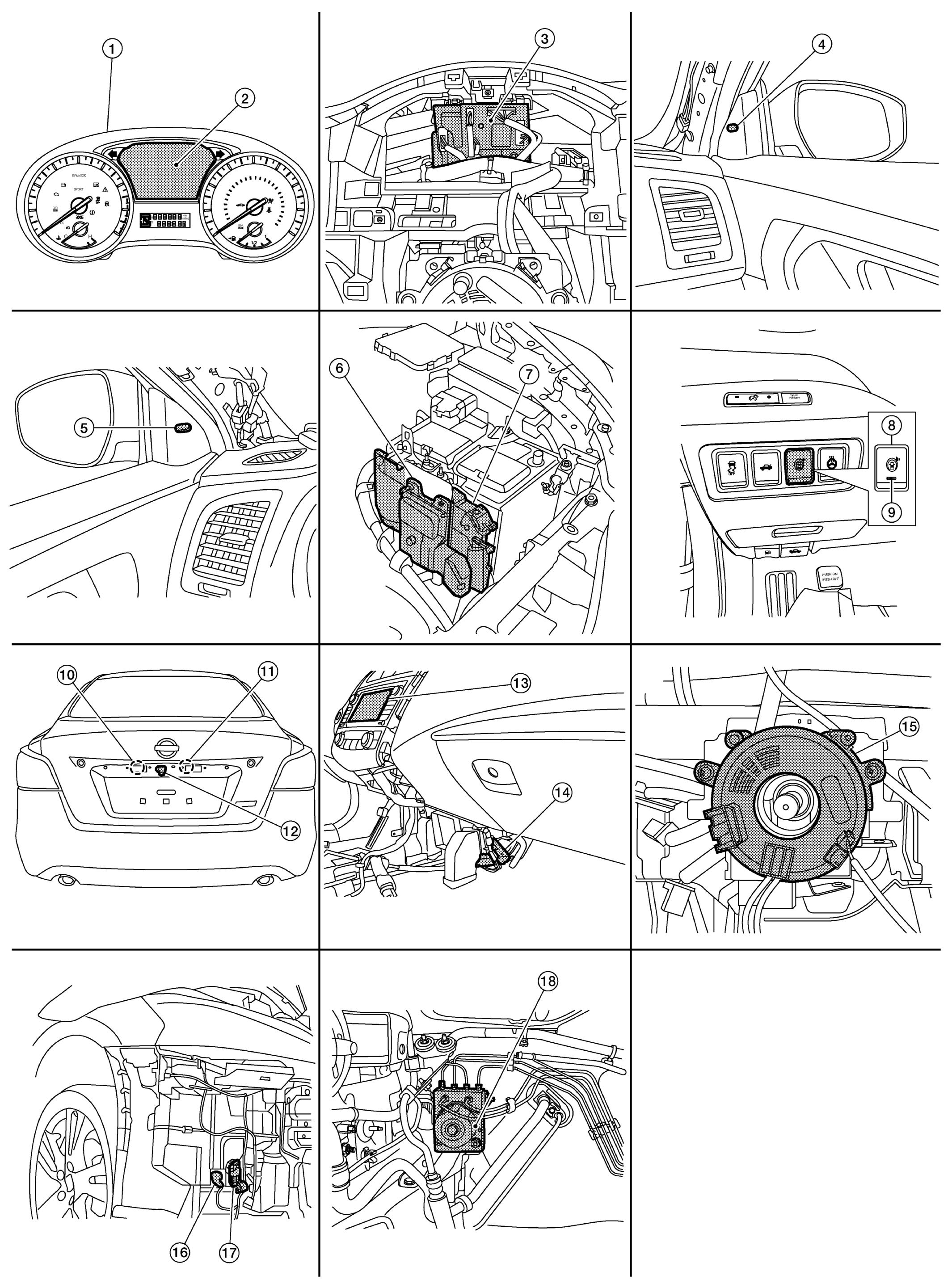

Component Parts Location
| 1. | Combination Meter | 2. | Vehicle Information Display | 3. | BCM (View With Combination Meter Removed) |
| 4. | Blind Spot Warning Indicator RH | 5. | Blind Spot Warning Indicator LH | 6. | TCM |
| 7. | ECM | 8. | Warning Systems Switch | 9. | Warning Systems ON Indicator |
| 10. | Rear View Camera Washer Control Unit | 11. | Rear View Camera Air Pump Motor | 12. | Rear View Camera |
| 13. | AV Control Unit | 14. | ITS Control Unit (View With Center Console Assembly Removed) |
15. | Steering Angle Sensor (View With Steering Wheel Removed) |
| 16. | Washer Fluid Level Switch (View With Front Bumper Fascia Removed) |
17. | Washer Motor | 18. | ABS Actuator And Electric Unit (Control Unit) |
