Switch Name And Function

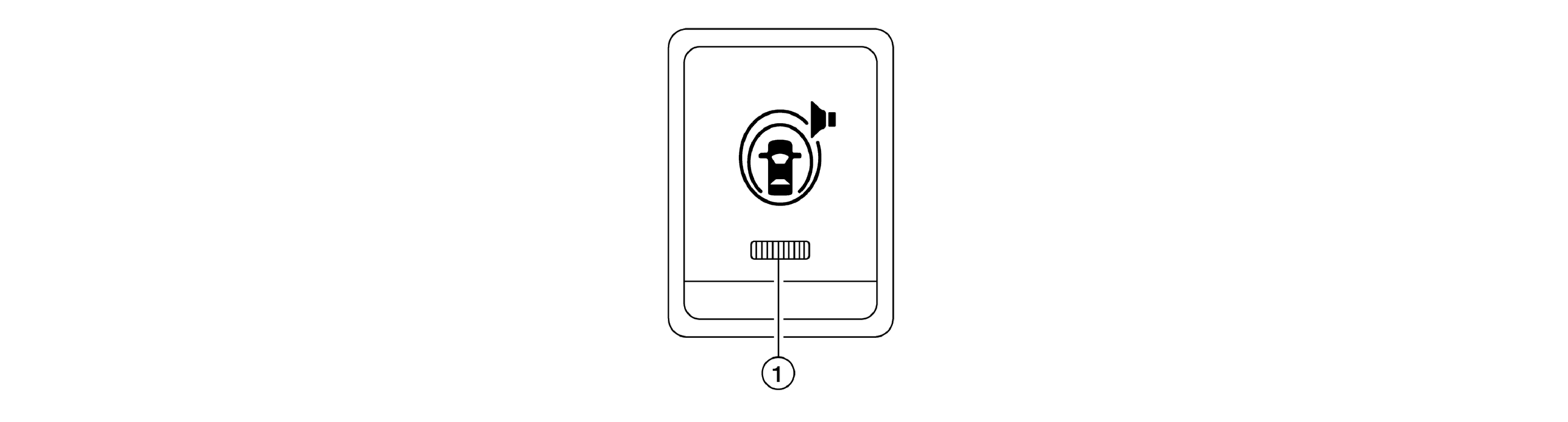

Fig 1: Warning System Switch Operation Diagram
G08687258Courtesy of NISSAN NORTH AMERICA, INC.
No. Switch Name Description
1 Warning systems switch Turns the LDW system ON/OFF.
(When the setting of LDW system on the combination meter information display is ON).
