Speaker Channel Check

Press the RPT/DRM button to enter speaker channel check, and the front left tweeter (front speaker LH) is displayed.

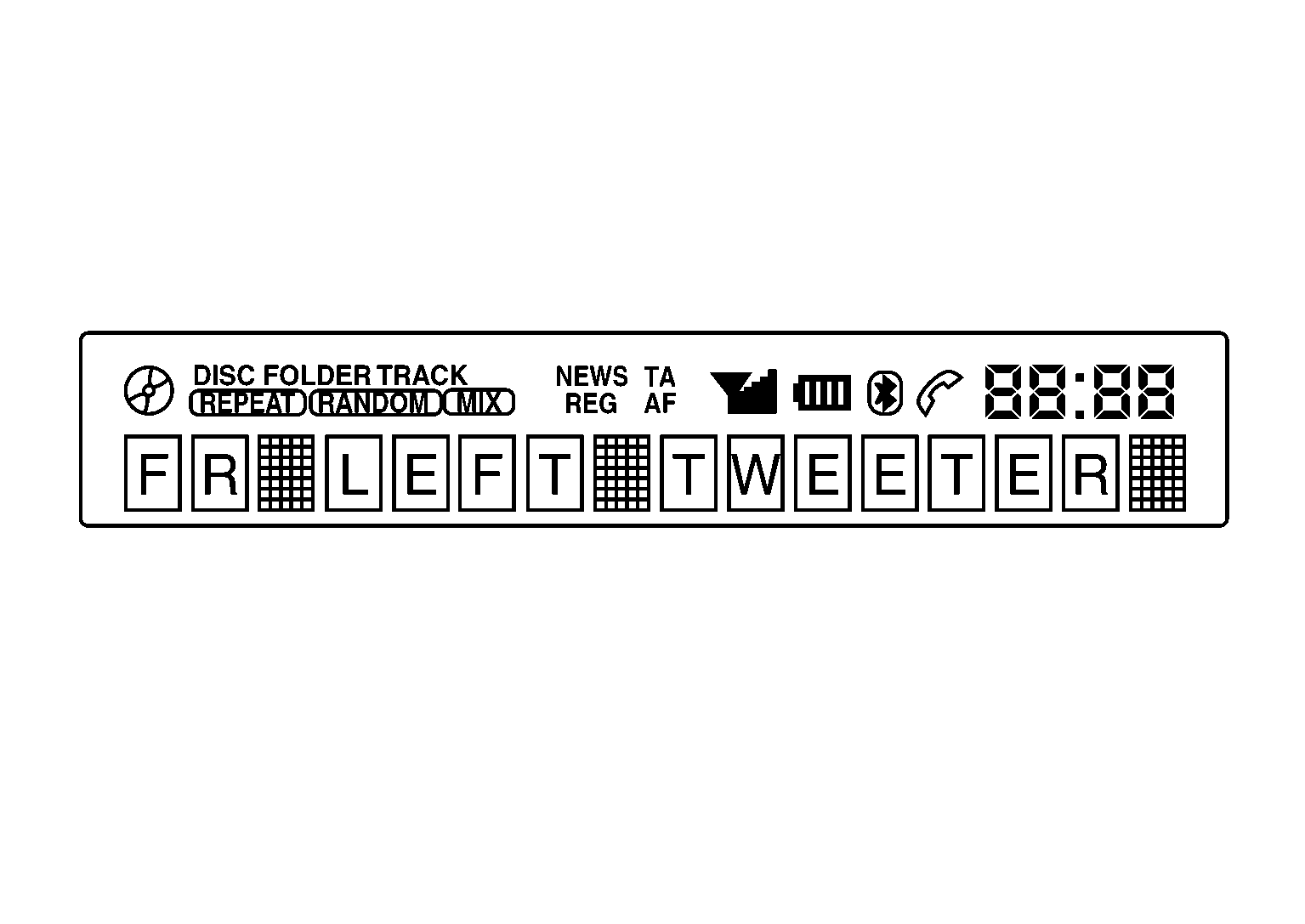

Fig 1: Front Left Tweeter (Front Speaker LH) Screen Display
Courtesy of NISSAN NORTH AMERICA, INC.
With each additional press of the RPT/DRM button, the following information is available:
- FR RIGHT TWEETER (front speaker RH)
- FR RIGHT (front door speaker RH)
- RR RIGHT (rear speaker RH)
- RR LEFT (rear speaker LH)
- FR LEFT (front door speaker LH)
Hold the RPT/DRM button down to return to all display segments screen.
