Exploded View With Torque Specifications

DRIVER SEAT - POWER

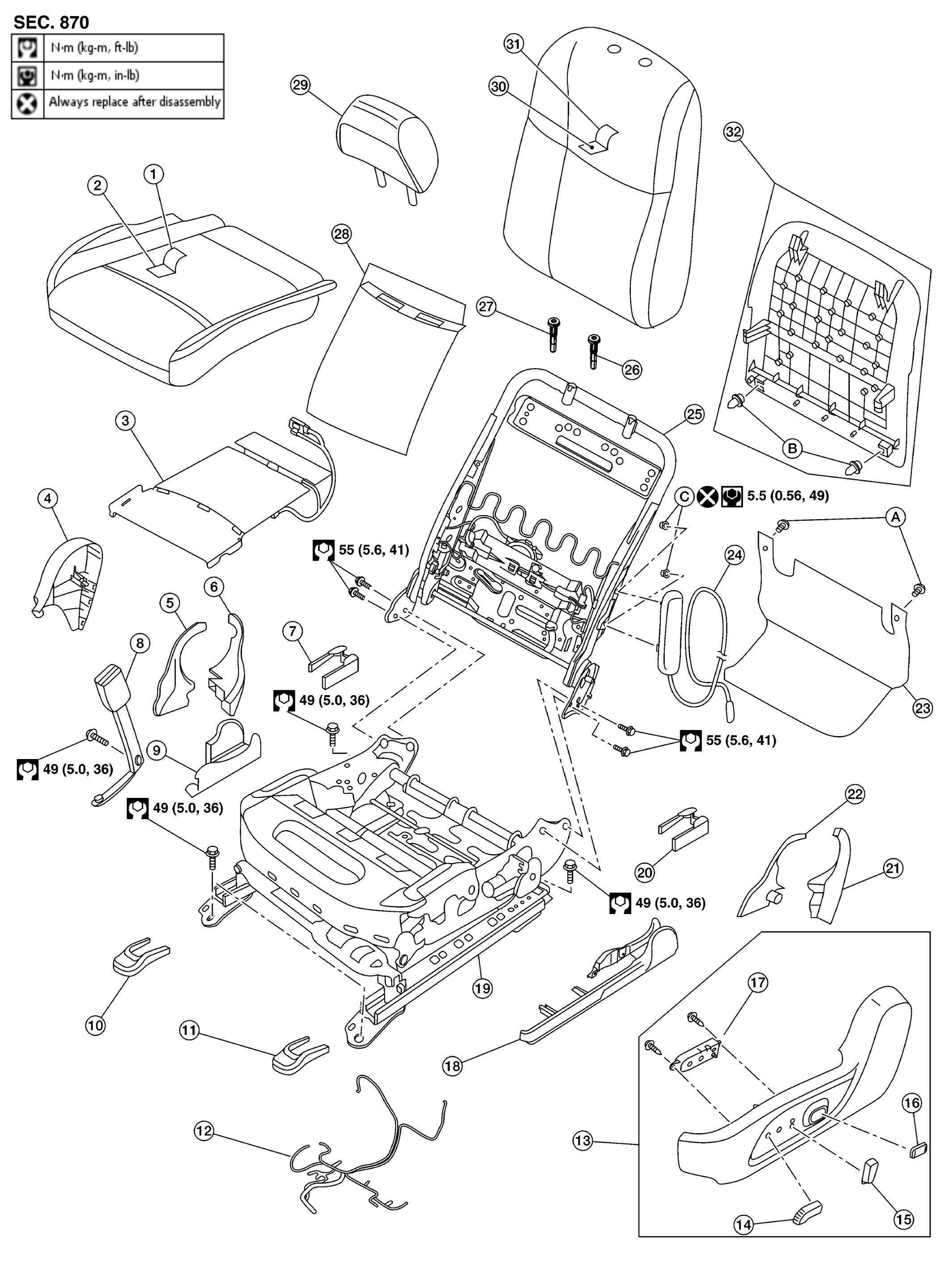

Fig 1: Exploded View Of Power Driver Seat With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat cushion trim	2.	Seat cushion pad	3.	Seat cushion heater (if equipped)
4.	Seat cushion outer finisher (RH)	5.	Seat cushion inner finisher (RH front)	6.	Seat cushion inner finisher (RH rear)
7.	Rear slide cover (RH)	8.	Seat belt buckle	9.	Slide cover (RH)
10.	Front slide cover (RH)	11.	Front slide cover (LH)	12.	Seat harness
13.	Seat cushion outer finisher (LH)	14.	Seat slide knob	15.	Seat recline knob
16.	Lumbar support switch (if equipped)	17.	Power seat switch	18.	Slide cover (LH)
19.	Seat cushion frame	20.	Rear slide cover (LH)	21.	Seat cushion inner finisher (LH rear)
22.	Seat cushion inner finisher (LH front)	23.	Rear hinge cover	24.	Side air bag module
25.	Seatback frame	26.	Headrest holder (locked)	27.	Headrest holder (free)
28.	Seatback heater (if equipped)	29.	Headrest	30.	Seatback pad
31.	Seatback trim	32.	Seatback board	A.	Rear hinge cover clips
B.	Seatback board clips	C.	Side air bag module nuts

DRIVER SEAT - MANUAL

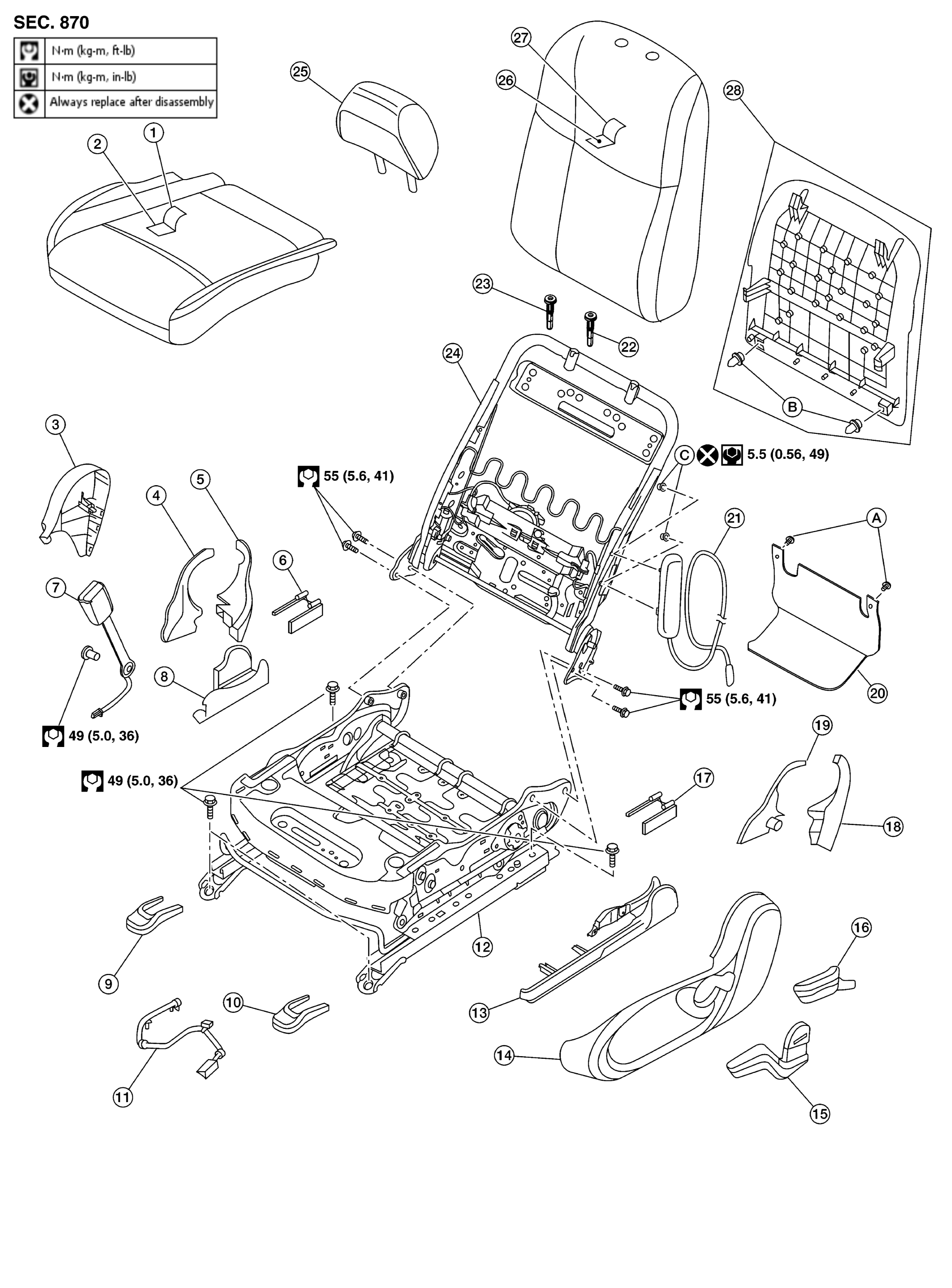

Fig 2: Exploded View Of Driver Side Manual Front Seat With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat cushion trim	2.	Seat cushion pad	3.	Seat cushion outer finisher (RH)
4.	Seat cushion inner finisher (RH front)	5.	Seat cushion inner finisher (RH rear)	6.	Rear slide cover (RH)
7.	Seat belt buckle	8.	Slide cover (RH)	9.	Front slide cover (RH)
10.	Front slide cover (LH)	11.	Seat harness	12.	Seat cushion frame
13.	Slide cover (LH)	14.	Seat cushion outer finisher (LH)	15.	Lift lever
16.	Recline lever	17.	Rear slide cover (LH)	18.	Seat cushion inner finisher (LH rear)
19.	Seat cushion inner finisher (LH front)	20.	Rear hinge cover	21.	Side air bag module
22.	Headrest holder (locked)	23.	Headrest holder (free)	24.	Seatback frame
25.	Headrest	26.	Seatback pad	27.	Seatback trim
28.	Seatback board	A.	Rear hinge cover clips	B.	Seatback board clips
C.	Side air bag module nuts
