Component Parts Location

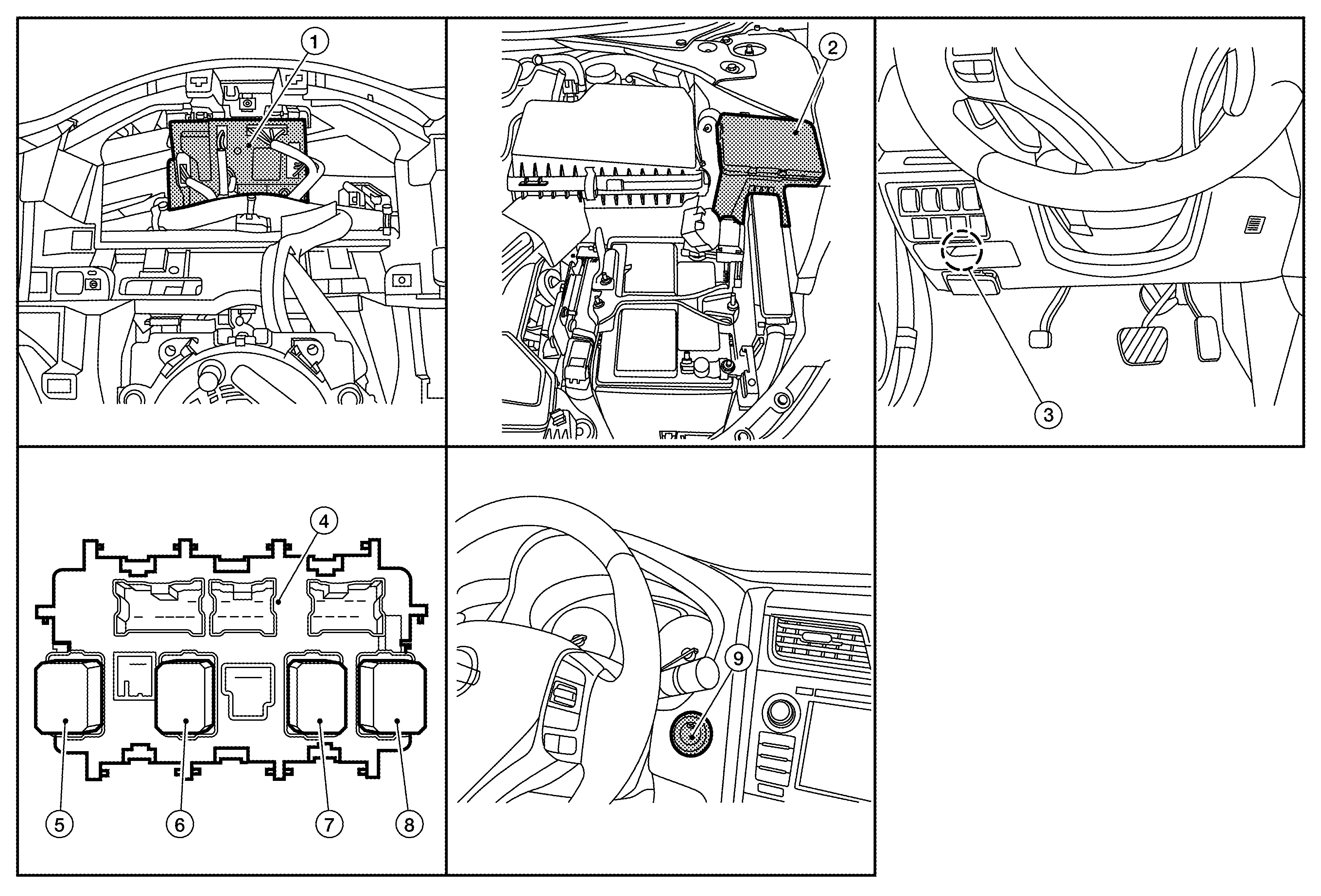

Fig 1: Power Distribution System Component Parts Location
GNSAWMIA1309ZZ-309Courtesy of NISSAN NORTH AMERICA, INC.
1. BCM (view with combination meter removed) 2. IPDM E/R (contains Ignition relay-1) 3. Fuse block (J/B)
4. Fuse block (J/B) (back side shown) 5. Ignition relay-2 6. Front blower motor relay
7. Rear window defogger relay 8. Accessory relay-1 9. Push-button ignition switch
