Exploded View With Torque Specifications

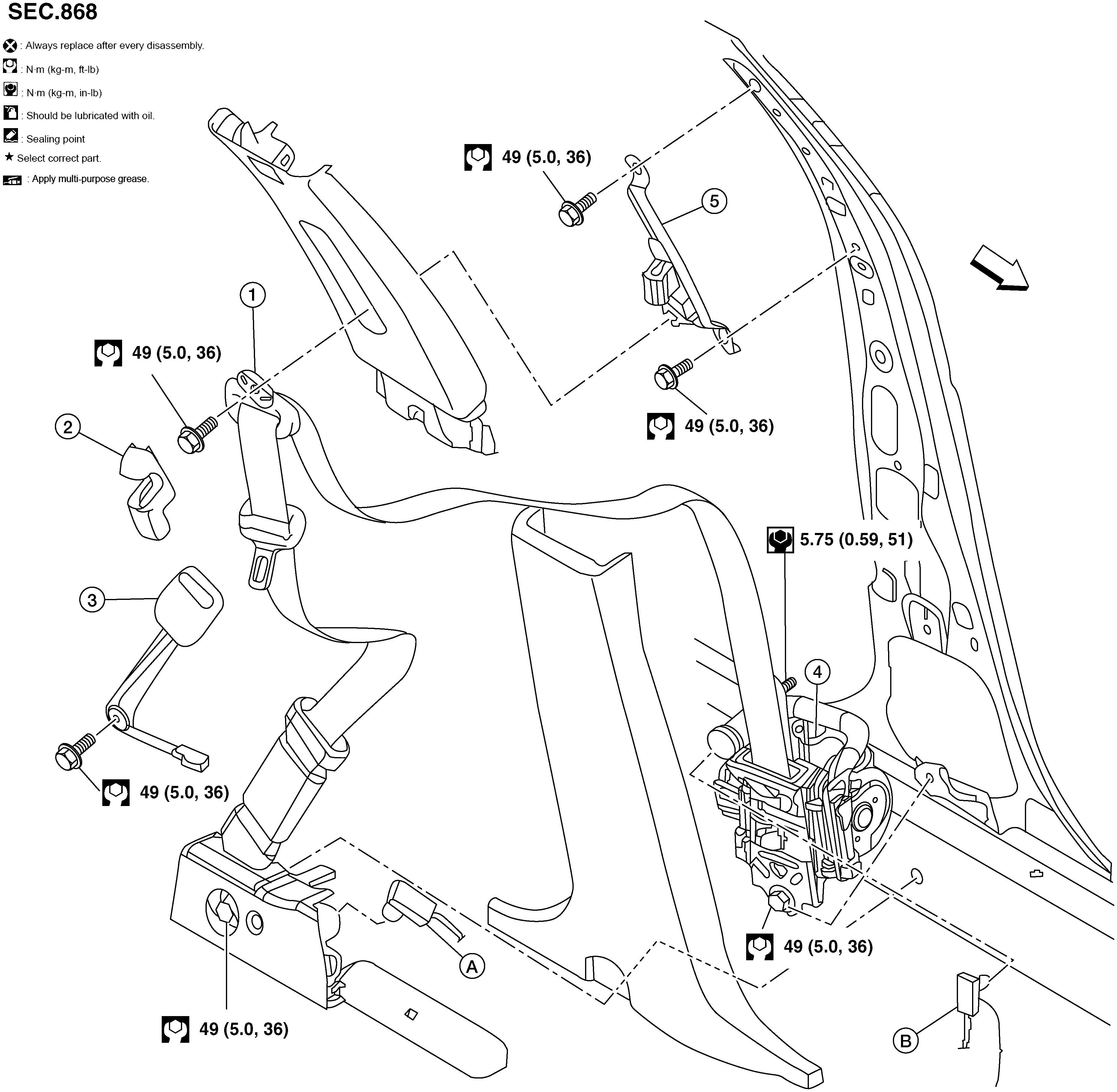

Fig 1: Exploded View Of Front Seat Belt With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	D-ring anchor	2.	Seat belt height adjuster cover	3.	Seat belt buckle
4.	Seat belt retractor	5.	Seat belt height adjuster	A.	Lap belt pre-tensioner harness connector
B.	Shoulder belt pre-tensioner harness connector		Front
