Exploded View With Torque Specifications

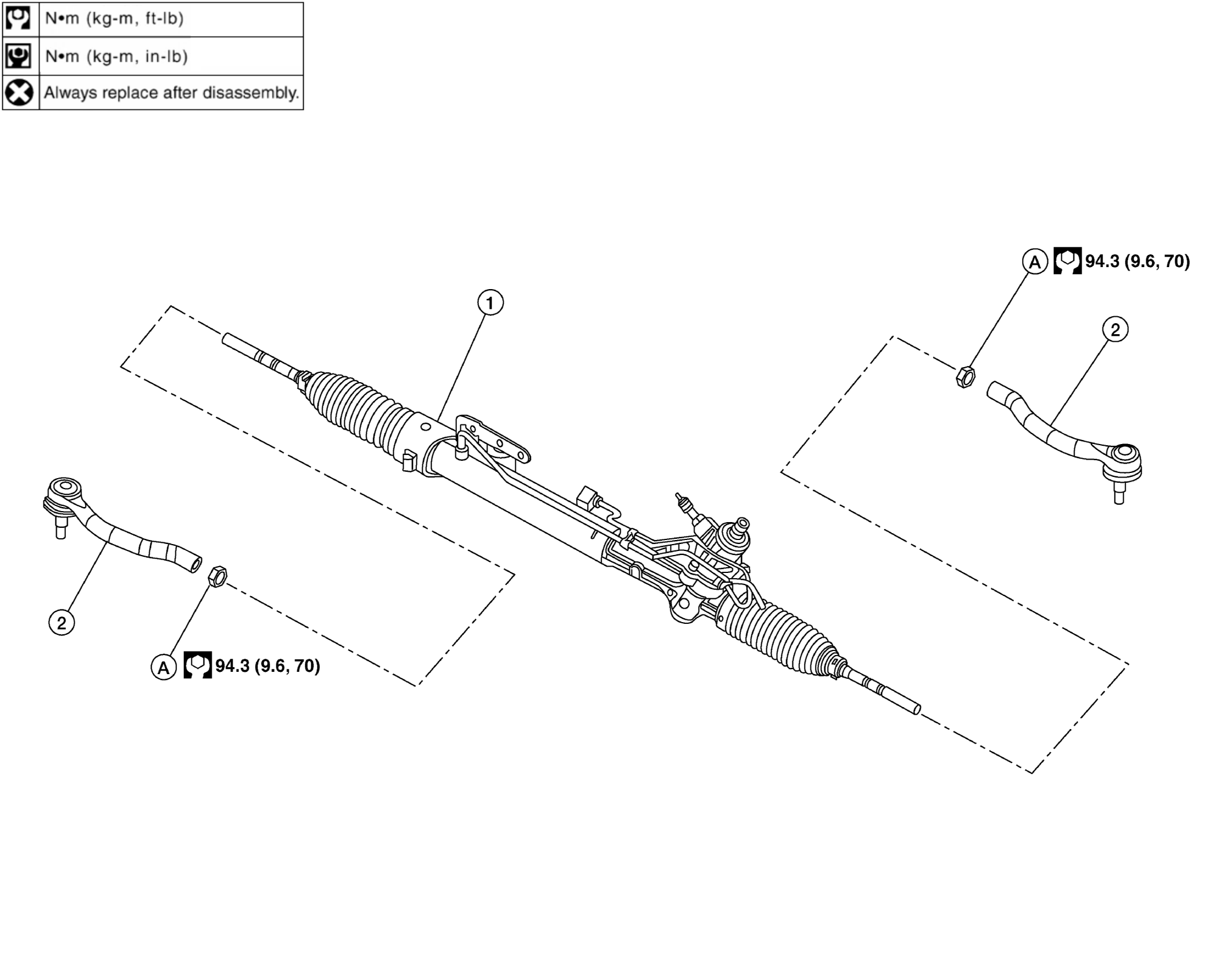

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications
GNSALGIA0194ZZ-194Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering gear assembly 2. Outer socket A. Inner socket lock nut
