Exploded View With Torque Specifications

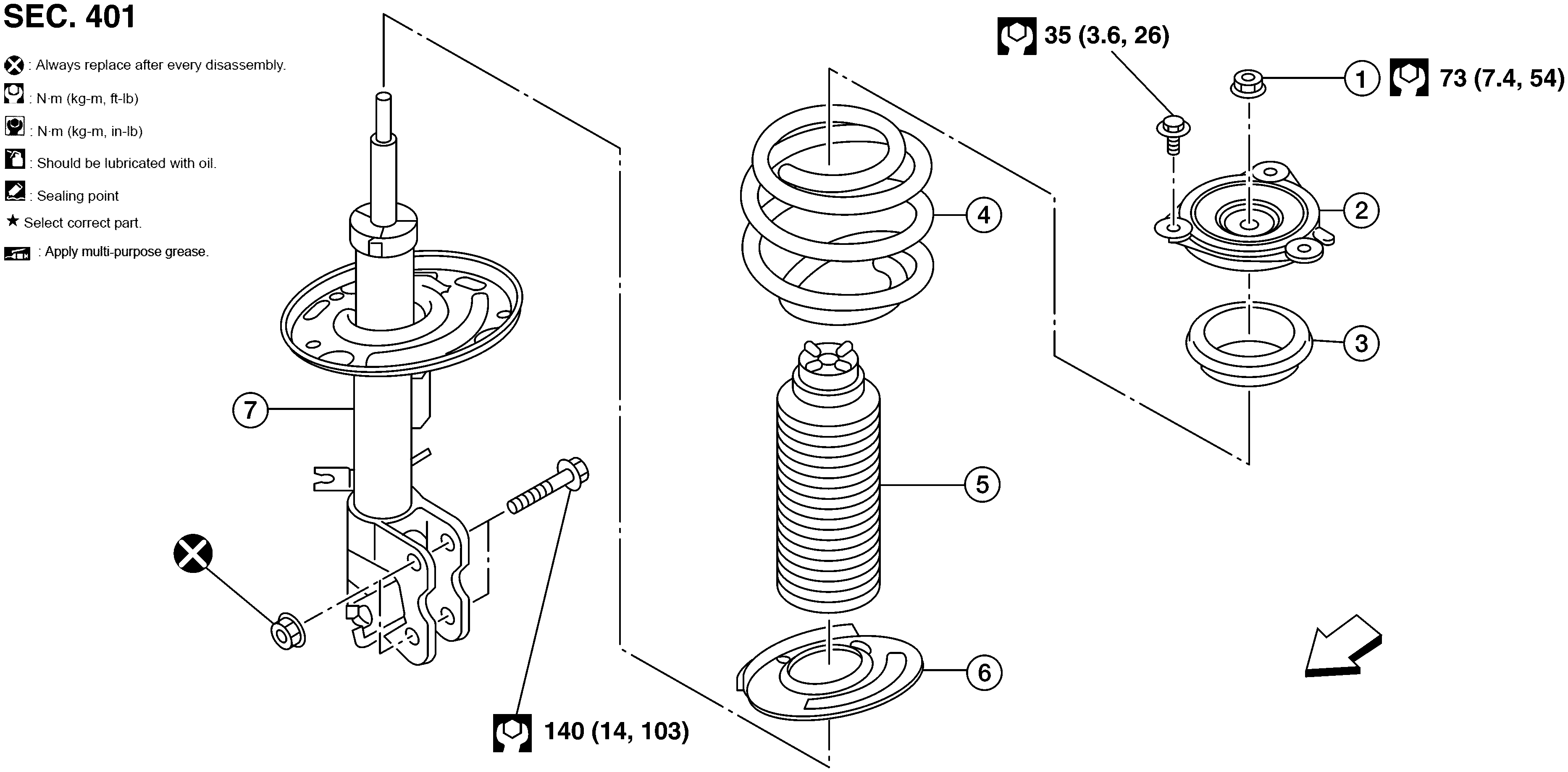

Fig 1: Exploded View Of Front Coil Spring And Strut With Torque Specifications
GNSAWEIA0328ZZ-328Courtesy of NISSAN NORTH AMERICA, INC.
1. Piston rod lock nut 2. Strut mount insulator 3. Upper rubber seat
4. Front coil spring 5. Dust cover 6. Lower rubber seat
7. Strut   Front
