Removal And Installation: Removal

  1. Remove power window main switch finisher. Refer to REMOVAL AND INSTALLATION .
  2. Remove power window main switch (1) from power window main switch finisher (2) using remover tool (A).

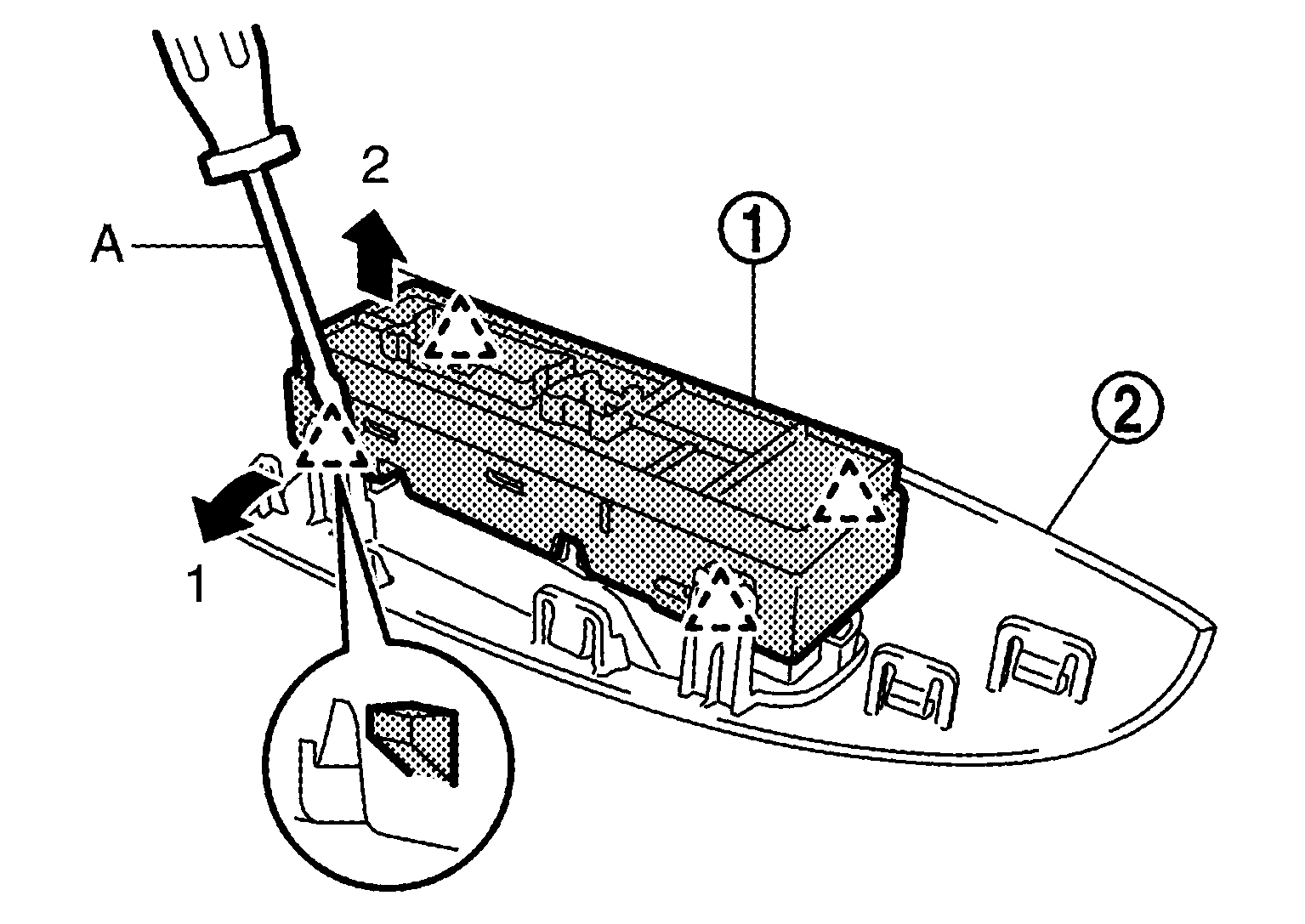

    Fig 1: Removing Power Window Main Switch
    GNSJMKIA6199ZZ-199Courtesy of NISSAN NORTH AMERICA, INC.
    Δ Pawl
    CAUTION:

    Do not fold the pawl of power window main switch finisher.

    NOTE:

    The same procedure is also performed for front power window switch (passenger side) and rear power window switch (LH & RH).
