Exploded View With Torque Specifications

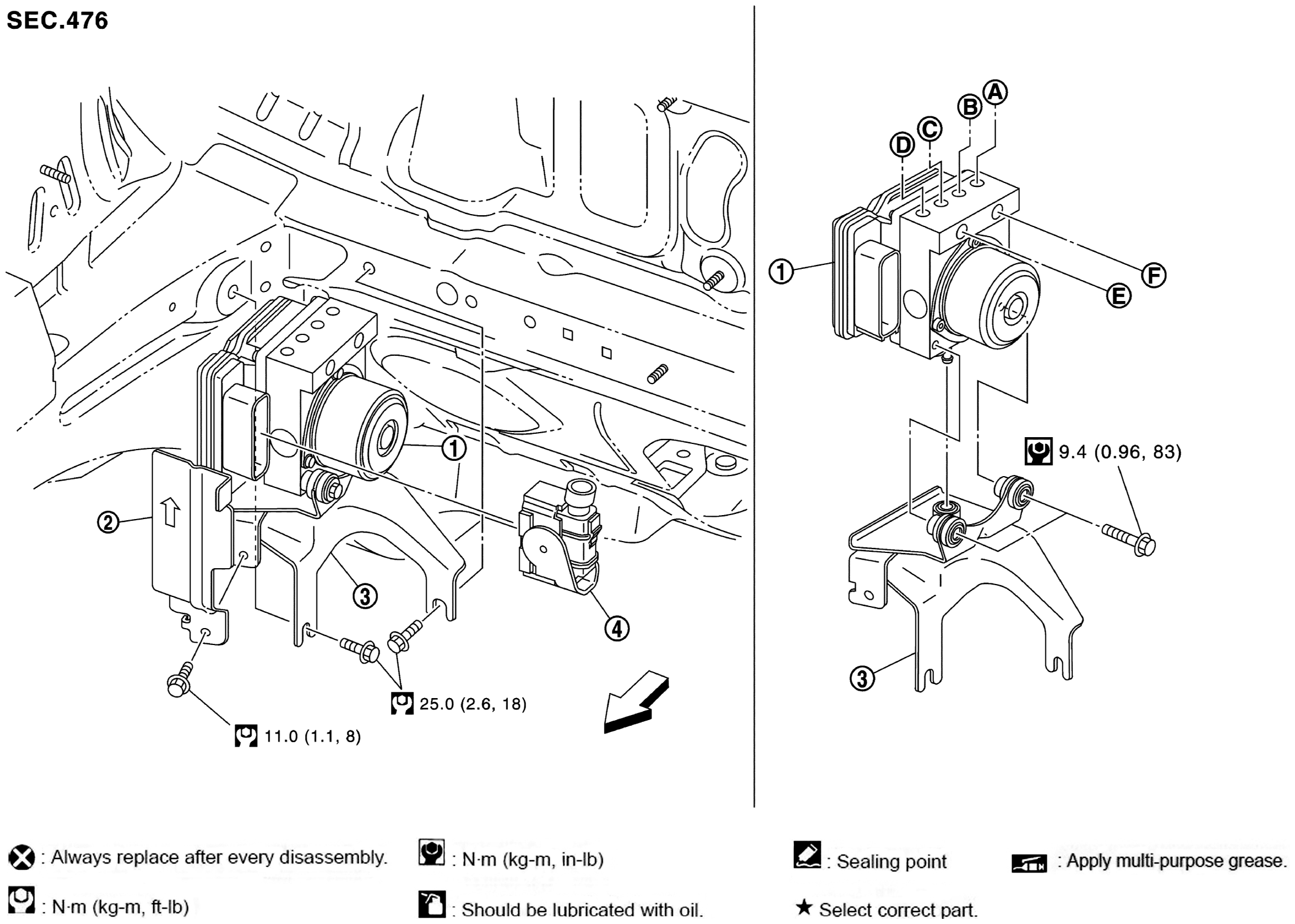

Fig 1: Exploded View Of ABS Actuator And Electric Unit (Control Unit) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ABS Actuator And Electric Unit (Control Unit)	2.	Bracket A	3.	Bracket B
4.	ABS Actuator And Electric Unit (Control Unit) Harness Connector
A.	To Front LH Caliper	B.	To Rear RH Caliper	C.	To Rear LH Caliper
D.	To Front RH Caliper	E.	To Master Cylinder Secondary Side	F.	To Master Cylinder Primary Side
Arrow: Vehicle Front
