Component Parts Location

ENGINE ROOM COMPARTMENT

Fig 1: Engine Control System Components Location (Engine Room Compartment)
GNSJSBIA6007ZZ-007Courtesy of NISSAN NORTH AMERICA, INC.
1. Intercooler 2. Engine Coolant Temperature Sensor 2 3. Cooling Fan Control Module
4. EVAP Canister Purge Volume Control Solenoid Valve 5. Cooling Fan Motor 6. Turbocharger Boost Sensor
7. Refrigerant Pressure Sensor 8. ECM 9. Battery Current Sensor
10. IPDM E/R 11. TCM 12. Mass Air Flow Sensor

ENGINE COMPARTMENT

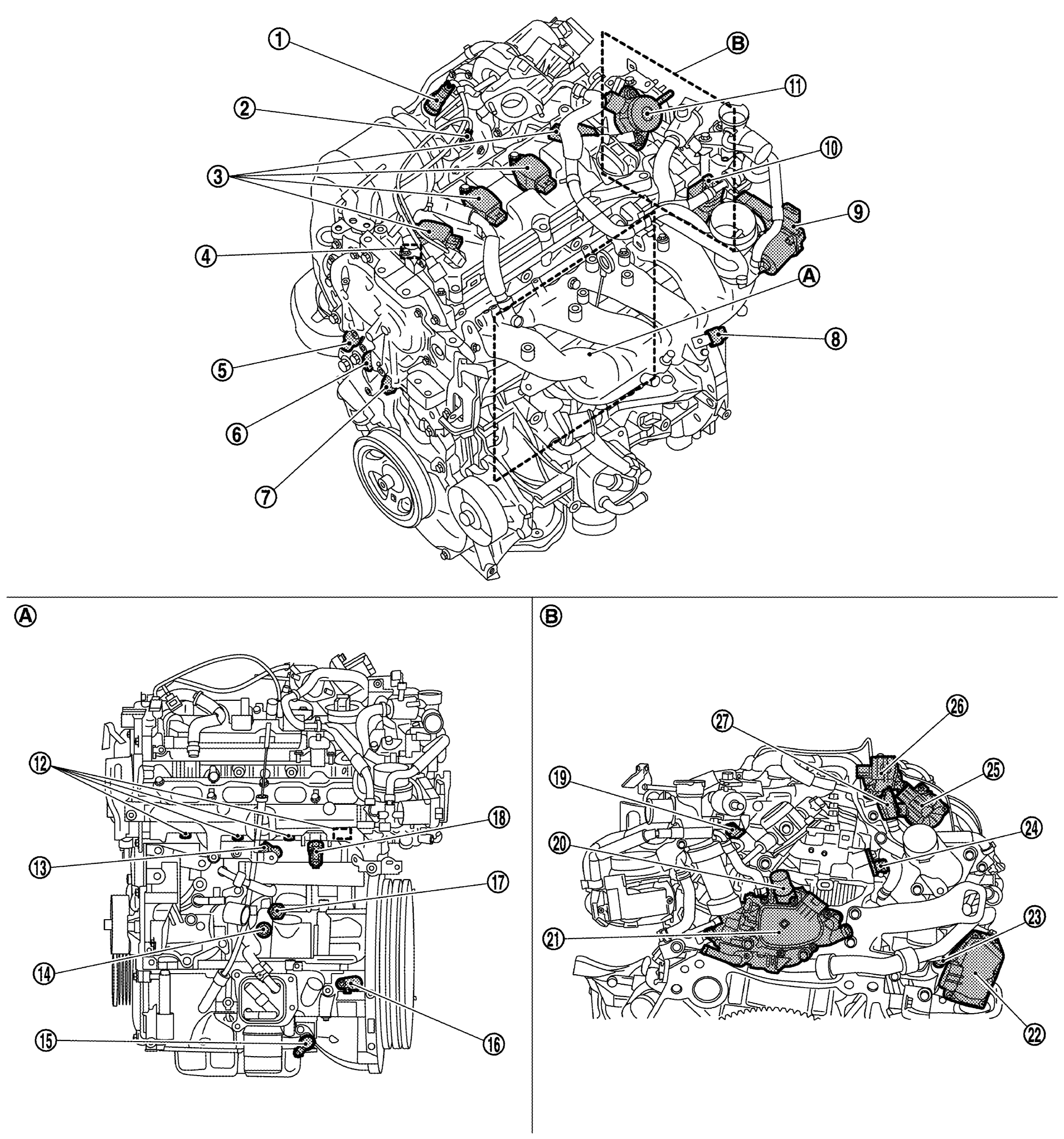

Fig 2: Engine Control System Components Location (Engine Compartment)
GNSJSBIA5803ZZ-803Courtesy of NISSAN NORTH AMERICA, INC.
1. Air Fuel Ratio (A/F) Sensor 1 2. Exhaust Gas Temperature Sensor 3. Ignition Coil (With Power Transistor)
4. PCV valve 5. Exhaust Valve Timing Control Solenoid Valve 6. Intake Valve Timing Intermediate Lock Control Solenoid Valve
7. Intake Valve Timing Control Solenoid Valve 8. Manifold Absolute Pressure Sensor 9. Electric Throttle Control Actuator
10. Intake Manifold Runner Control Valve 11. High Pressure Fuel Pump 12. Fuel Injector
13. Knock Sensor 14. Engine Oil Temperature Sensor 15. Engine Oil Pressure Control Solenoid Valve
16. Crankshaft Position Sensor 17. Engine Oil Pressure Sensor 18. Fuel Rail Pressure Sensor
19. Camshaft Position Sensor 20. Engine Coolant Temperature Sensor 21. Multi - Way Control Valve
22. EGR Volume Control Valve 23. EGR Temperature Sensor 24. Exhaust Valve Timing Control Position Sensor
25. Electric Wastegate Control Actuator 26. Turbocharger Bypass Control Valve 27. EGR Pressure Sensor
A. Cylinder Block Left Side B. Engine Rear End

EXHAUST COMPARTMENT

2WD

Fig 3: Locating A/F Sensor 1 And Heated Oxygen Sensor 2 (2WD)
GNSJPBIA4609ZZ-609Courtesy of NISSAN NORTH AMERICA, INC.
1. A/F Sensor 1 2. Heated Oxygen Sensor 2

AWD

Fig 4: Locating A/F Sensor 1 And Heated Oxygen Sensor 2 (AWD)
GNSJPBIA4610ZZ-610Courtesy of NISSAN NORTH AMERICA, INC.
1. A/F Sensor 1 2. Heated Oxygen Sensor 2

BODY COMPARTMENT

Fig 5: Engine Control System Components Location (Body Compartment)
GNSJPBIA4893ZZ-893Courtesy of NISSAN NORTH AMERICA, INC.
1. ASCD Steering Switch 2. Fuel Level Sensor Unit, Fuel Filter And Fuel Pump Assembly 3. Fuel Tank Temperature Sensor
4. Clutch Pedal Position Switch
(With M/T Models)
5. Brake Pedal Position Switch
(With M/T Models)
6. Stop Lamp Switch
(With M/T Models)
7. Accelerator Pedal Position Sensor
(With M/T Models)
8. Brake Pedal Position Switch
(With CVT Models)
9. Stop Lamp Switch
(With CVT Models)
10. Accelerator Pedal Position Sensor
(With CVT Models)
11. G Sensor
(With 2WD Models)
12. G Sensor
(With AWD Models)
13. EVAP Control System Pressure Sensor 14. EVAP Canister Vent Control Valve 15. EVAP Canister
A. Under Of Right Side Second Seat B. Periphery Of Pedals C. Under Of Left Side Front Seat
D. Fuel Tank Rear
  Arrow: Vehicle front
