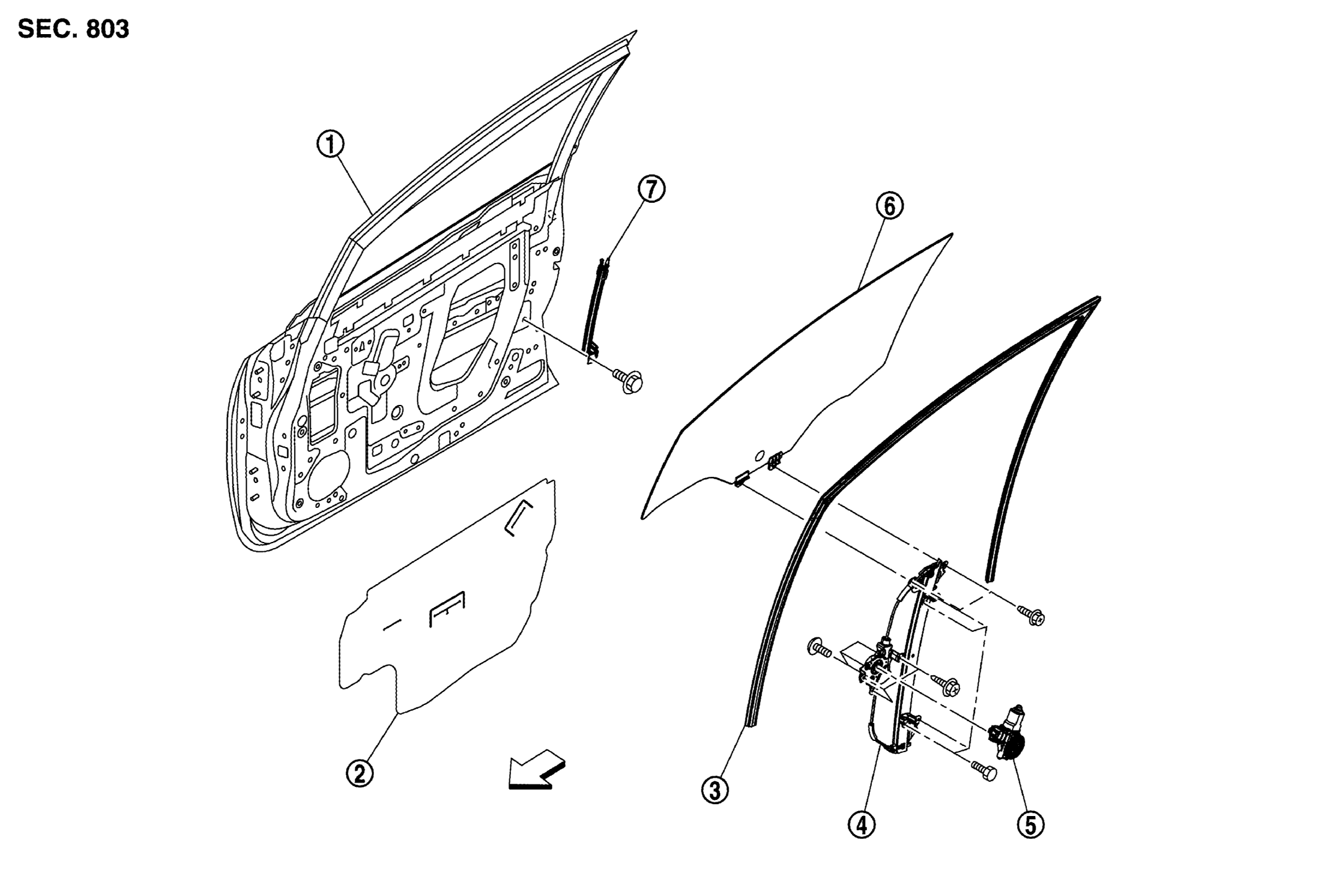

Exploded View With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Front Door Panel |
2. |
Sealing Screen |
3. |
Front Door Glass Run |
| 4. |
Front Door Regulator |
5. |
Power Window Motor |
6. |
Front Door Glass |
| 7. |
Lower Sash |
Arrow |
Front |
|
|
