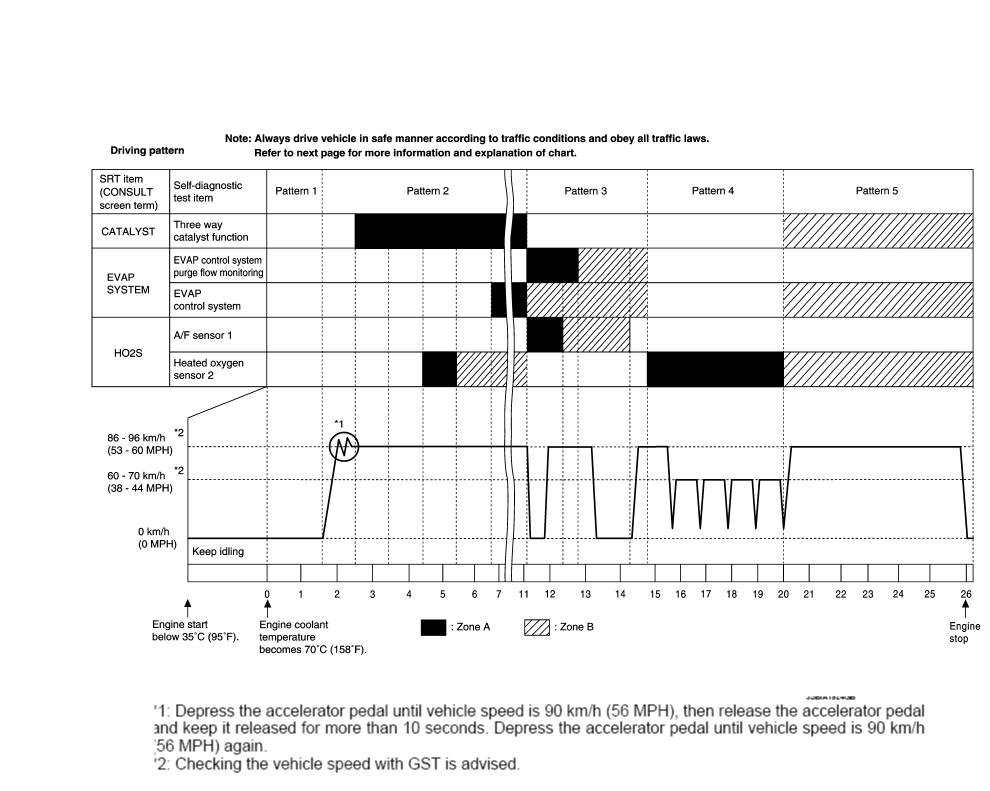

SRT Set Driving Pattern
WARNING: This page is about a different car, the 2014 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Always drive the vehicle in safe manner according to traffic conditions and obey all traffic laws.
- The time required for each diagnosis varies with road surface conditions, weather, altitude, individual driving habits, etc.
Zone A refers to the range where the time, required for the diagnosis under normal conditions*, is the shortest.
Zone B refers to the range where the diagnosis can still be performed if the diagnosis is not completed within zone A.
*: Normal conditions refer to the following:
- Sea level
- Flat road
- Ambient air temperature: 20 - 30°C (68 - 86°F)
- Diagnosis is performed as quickly as possible under normal conditions.
Under different conditions [For example: ambient air temperature other than 20 - 30°C (68 - 86°F)], diagnosis may also be performed.
