Engine Control Component Parts Location
WARNING: This page is about a different car, the 2015 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

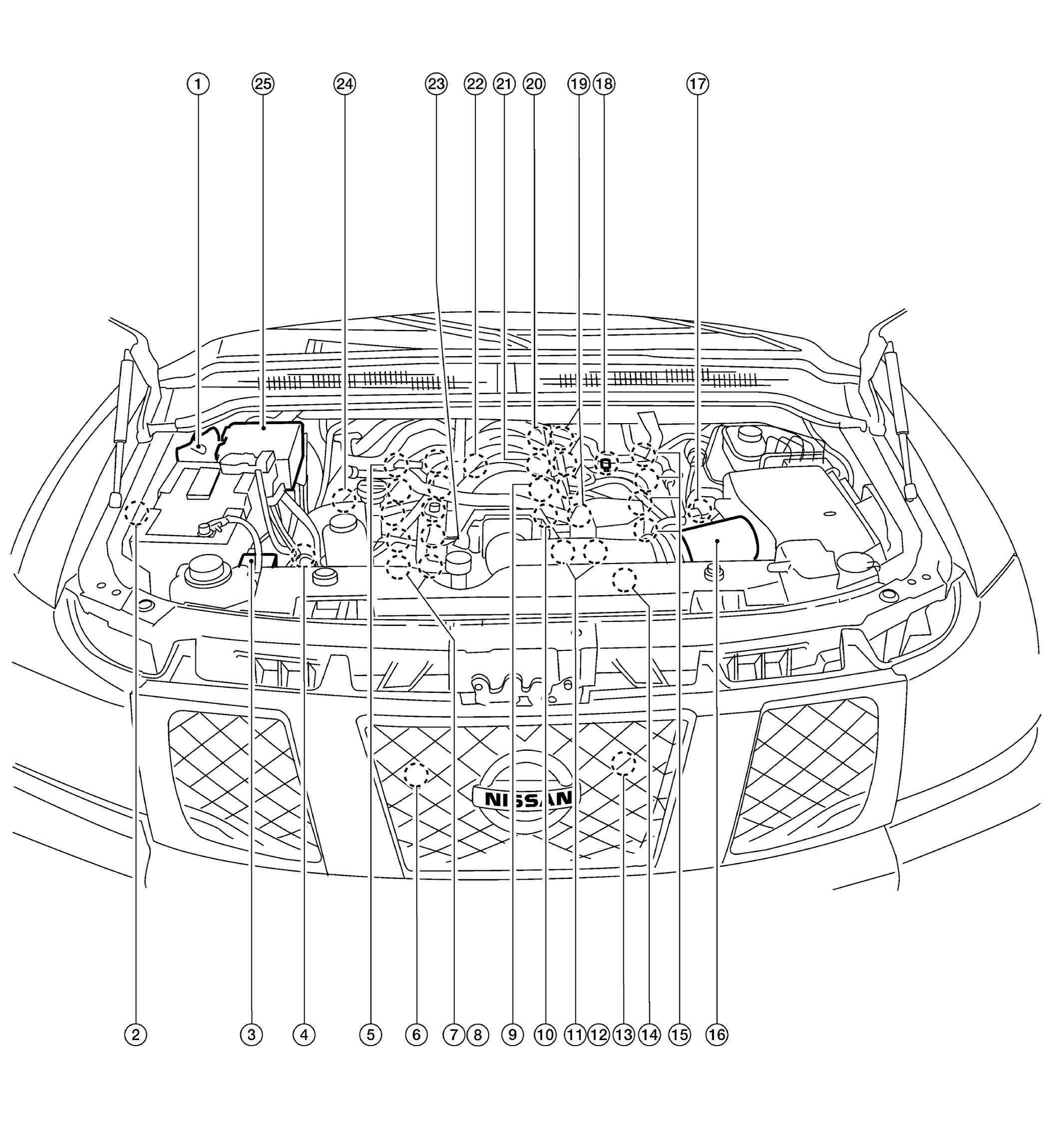

Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
ECM |
2. |
Dropping Resistor (FFV Models Only) |
3. |
Battery Current Sensor |
| 4. |
Power Steering Pressure Sensor |
5. |
Ignition Coil (With Power Transistor) And Spark Plug (Bank 2) |
6. |
Refrigerant Pressure Sensor |
| 7. |
Intake Valve Timing Control Position Sensor (Bank 2) |
8. |
Intake Valve Timing Control Solenoid Valve (Bank 2) |
9. |
Engine Coolant Temperature Sensor |
| 10. |
Electric Throttle Control Actuator |
11. |
Intake Valve Timing Control Position Sensor (Bank 1) |
12. |
Intake Valve Timing Control Solenoid Valve (Bank 1) |
| 13. |
Cooling Fan Motor |
14. |
Camshaft Position Sensor (PHASE) |
15. |
Ignition Coil (With Power Transistor) And Spark Plug (Bank 1) |
| 16. |
Mass Air Flow Sensor (With Intake Air Temperature Sensor) |
17. |
A/F Sensor 1 (Bank 1) |
18. |
EVAP Service Port |
| 19. |
Fuel Injector (Bank 1) |
20. |
Knock Sensor (Bank 1) |
21. |
EVAP Canister Purge Volume Control Solenoid Valve |
| 22. |
Knock Sensor (Bank 2) |
23. |
Fuel Injector (Bank 2) |
24. |
A/F Sensor 1 (Bank 2) |
| 25. |
IPDM E/R |
|
|
|
|

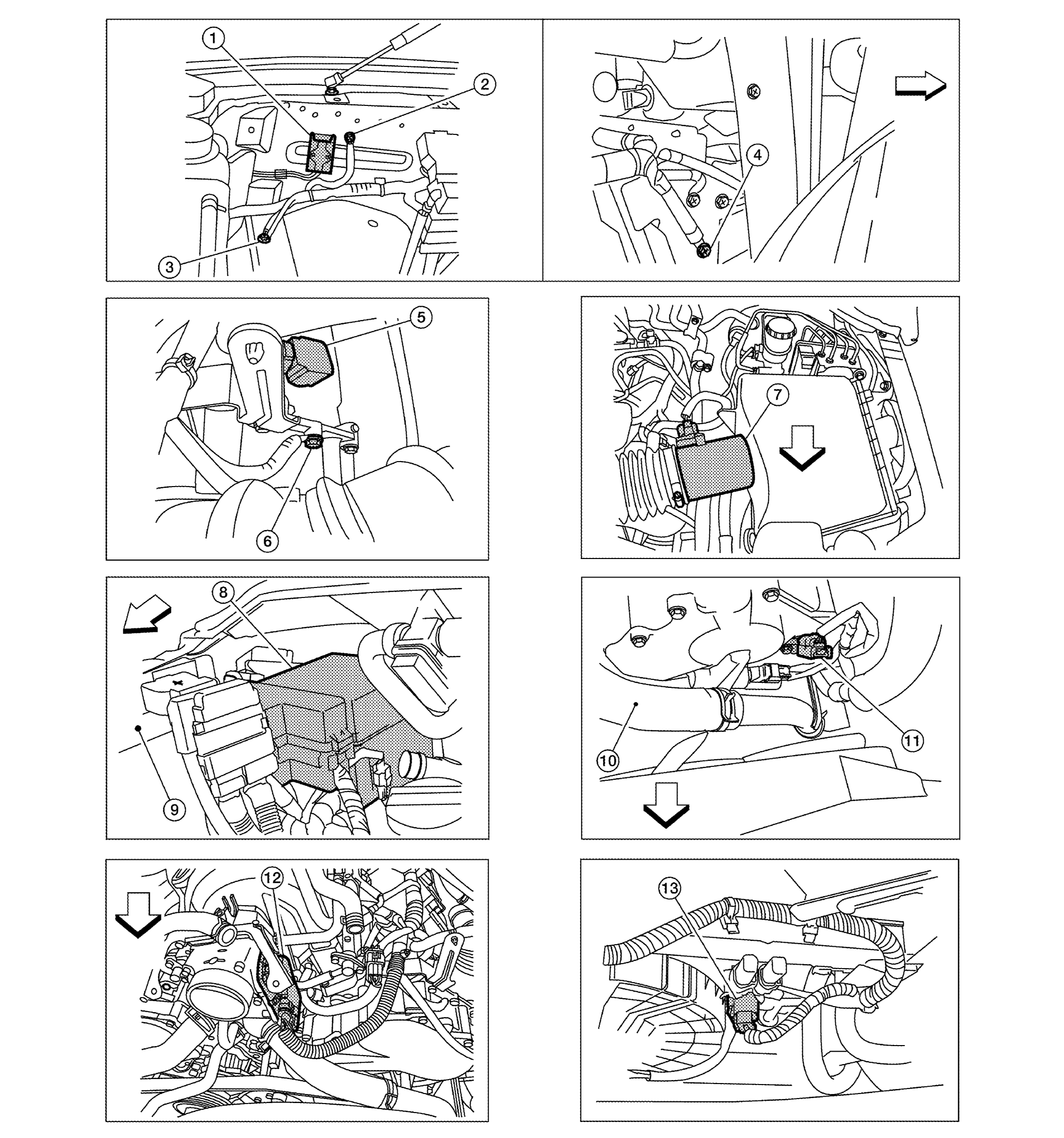

Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Dropping Resistor (FFV Models Only) (View With Battery Removed) |
2. |
Body Ground (View With Battery Removed) |
3. |
Body Ground (View With Battery Removed) |
| 4. |
Body Ground |
5. |
No. 1 Ignition Coil |
6. |
Engine Ground |
| 7. |
Mass Air Flow Sensor (With Intake Air Temperature Sensor) |
8. |
IPDM E/R |
9. |
Battery |
| 10. |
Radiator Hose |
11. |
Camshaft Position Sensor (PHASE) |
12. |
Electric Throttle Control Actuator (View With Intake Air Duct Removed) |
| 13. |
Cooling Fan Motor Harness Connector |
|
|
|
|
| Arrow |
Vehicle Front |
|
|
|
|

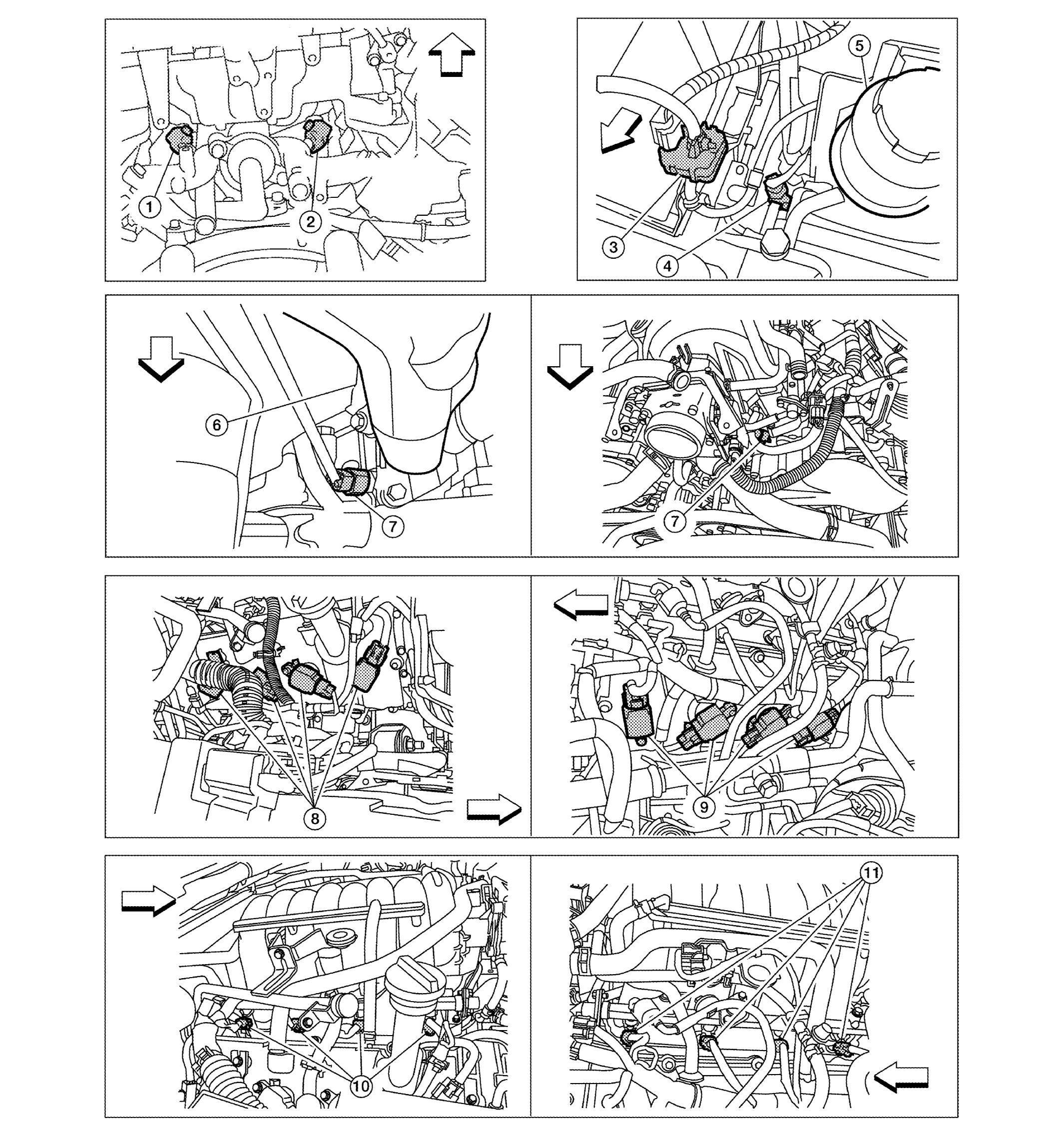

Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Knock Sensor (Bank 1) (View With Engine Removed) |
2. |
Knock Sensor (Bank 2) (View With Engine Removed) |
3. |
Battery Current Sensor |
| 4. |
Power Steering Pressure Sensor |
5. |
Power steering fluid reservoir |
6. |
Intake Manifold |
| 7. |
Engine Coolant Temperature Sensor |
8. |
Ignition Coils (With Power Transistor) |
9. |
Ignition Coil (With Power Transistor) |
| 10. |
Injector Harness Connectors (Bank 2) |
11. |
Injector Harness Connectors (Bank 1) |
|
|
| Arrow |
Vehicle Front |
|
|
|
|

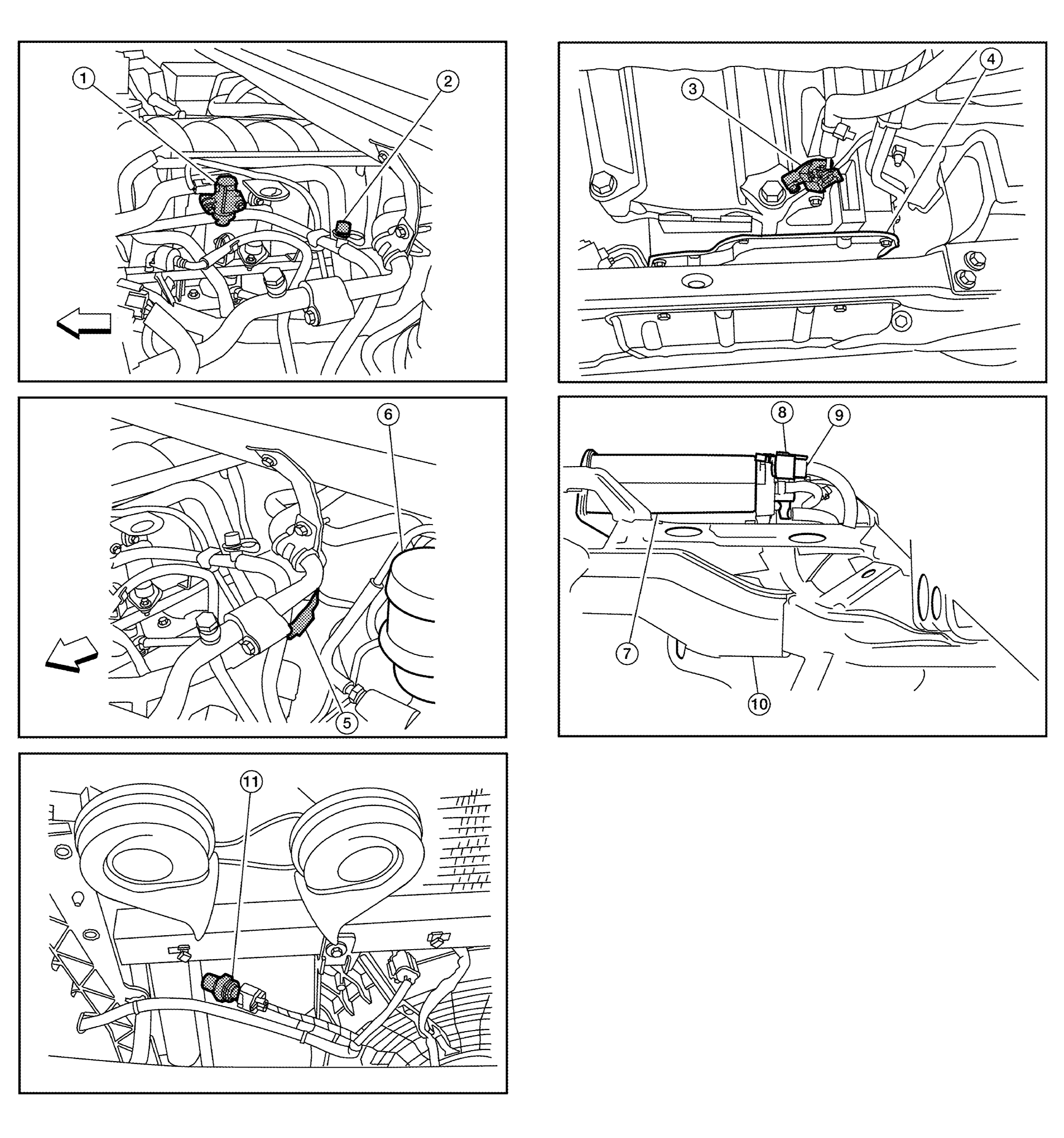

Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
EVAP Canister Purge Volume Control Solenoid Valve (View With Engine Cover Removed) |
2. |
EVAP Service Port (View With Engine Cover Removed) |
3. |
Crankshaft Position Sensor (POS) (View From Under The Vehicle) |
| 4. |
Engine Oil Pan (View From Under The Vehicle) |
5. |
Condenser-1 |
6. |
Brake Fluid Reservoir |
| 7. |
EVAP Canister (View With Fuel Tank Removed) |
8. |
EVAP Control System Pressure Sensor (View With Fuel Tank Removed) |
9. |
EVAP Canister Vent Control Valve (View With Fuel Tank Removed) |
| 10. |
Rear Suspension Member (View With Fuel Tank Removed) |
11. |
Refrigerant Pressure Sensor (View With Front Grille Removed) |
|
|
| Arrow |
Vehicle Front |
|
|
|
|

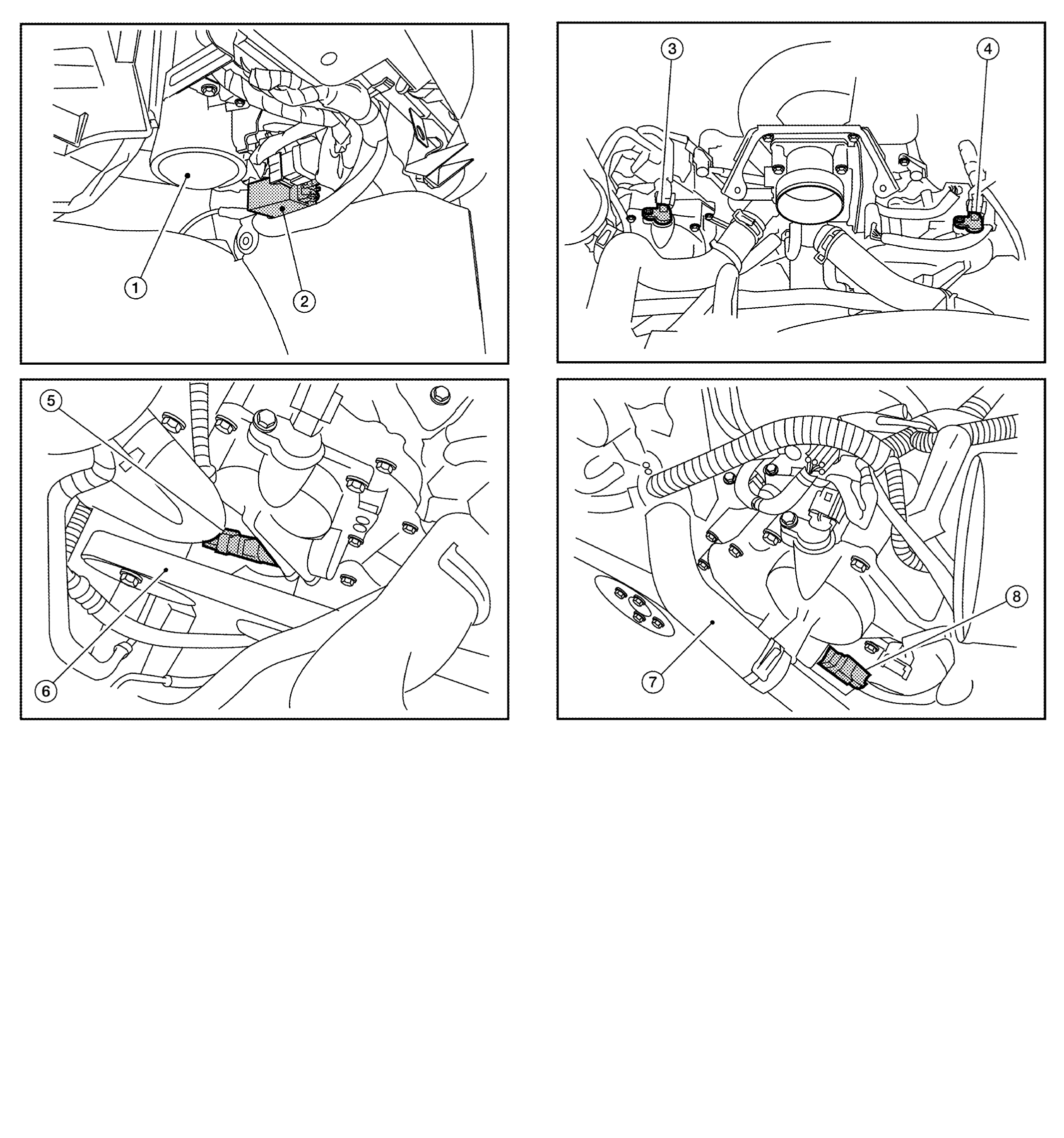

Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Fuel Pump Control Module (FFV Models Only) |
2. |
Blower Motor |
3. |
Intake Valve Timing Control Position Sensor (Bank 2) (View With Engine Cover And Intake Air Duct Removed) |
| 4. |
Intake Valve Timing Control Position Sensor (Bank 1) (View With Engine Cover And Intake Air Duct Removed) |
5. |
Intake Valve Timing Control Solenoid Valve (Bank 2) (View With Engine Cover And Intake Air Duct Removed) |
6 |
Drive Belt (View With Engine Cover And Intake Air Duct Removed) |
| 7. |
Radiator Hose (View With Engine Cover And Intake Air Duct Removed) |
8. |
Intake Valve Timing Control Solenoid Valve (Bank 1) (View With Engine Cover And Intake Air Duct Removed) |
|
|
Courtesy of NISSAN NORTH AMERICA, INC.
