Diagnosis Procedure

WARNING: This page is about a different car, the 2015 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Regarding Wiring Diagram information, refer to WIRING DIAGRAM .

  1. CHECK KEY SWITCH

    With CONSULT

    Check key switch ("KEY SW") in "DATA MONITOR" mode with CONSULT.

    Monitor item Condition
    KEY SW Insert mechanical key into ignition switch: ON
    Remove mechanical key from ignition switch: OFF

    Without CONSULT

    1. Turn ignition switch OFF.
    2. Disconnect Intelligent Key unit harness connector.
    3. Check voltage between Intelligent Key unit harness connector M70 terminal 7 and ground.
      Fig 1: Checking Voltage Between Intelligent Key Unit Harness Connector M70 Terminal 7 And Ground
      G04916801Courtesy of NISSAN NORTH AMERICA, INC.
      Connector Terminals Condition Voltage (V)
      (Approx.)
      (+) (-)
      M70 7 Ground Insert mechanical key into ignition switch Battery voltage
      Remove mechanical key from ignition switch 0

    Is the inspection result normal?

    YES

    Key switch is OK.

    NO

    GO TO STEP 2

  2. CHECK KEY SWITCH POWER SUPPLY CIRCUIT

    1. Remove mechanical key from ignition switch.
    2. Disconnect key switch and ignition knob switch connector.
    3. Check voltage between key switch and ignition knob switch harness connector M12 terminal 3 and ground.

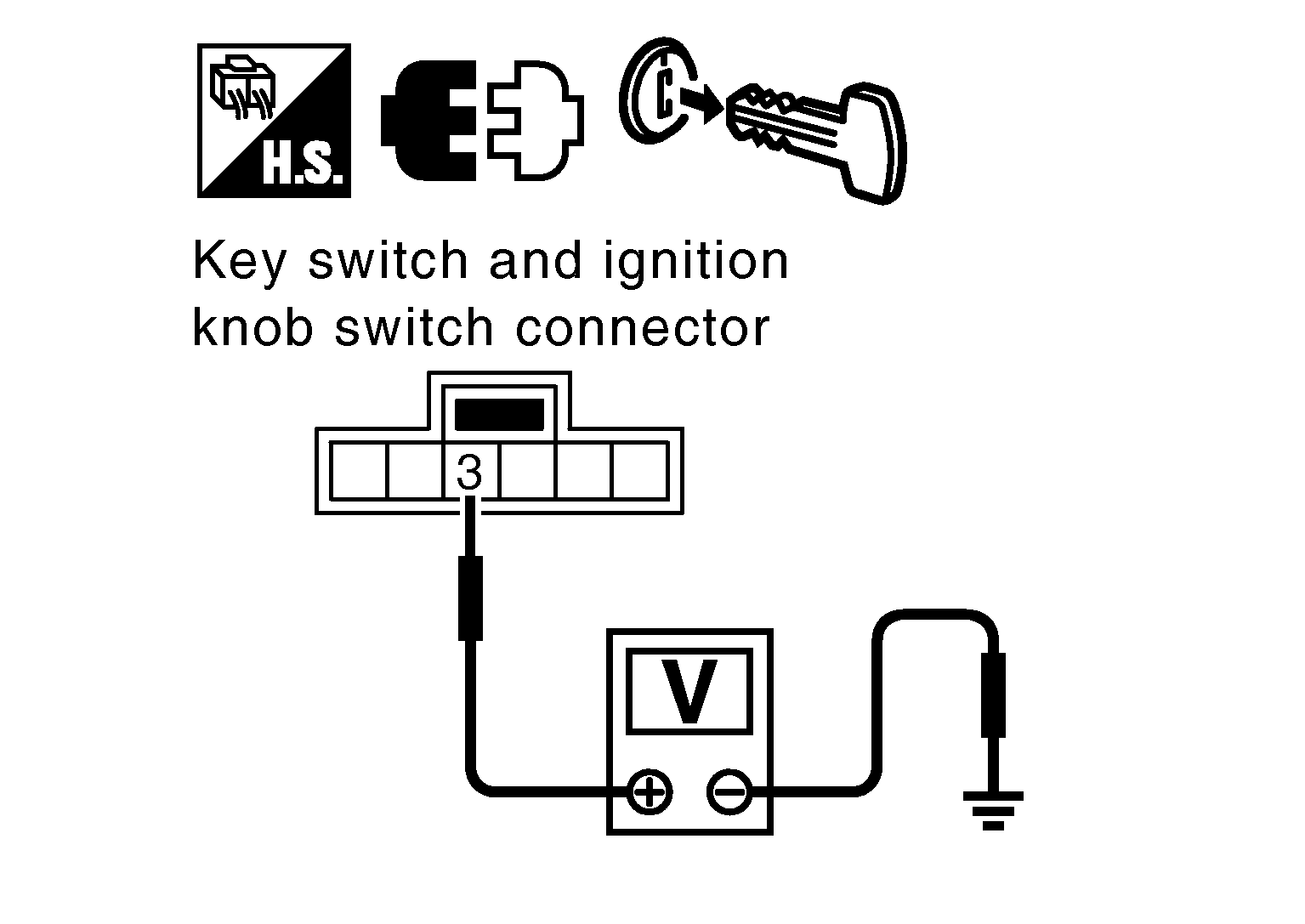

      Fig 2: Checking Voltage Between Key Switch And Ignition Knob Switch Connector M12 Terminal 3 And Ground
      G04122404Courtesy of NISSAN NORTH AMERICA, INC.
      3 - Ground Battery voltage

    Is the inspection result normal?

    YES

    GO TO STEP 3

    NO

    Repair or replace key switch and ignition knob switch power supply circuit.

  3. CHECK KEY SWITCH OPERATION

    Check continuity between key switch and ignition knob switch terminals 3 and 4.

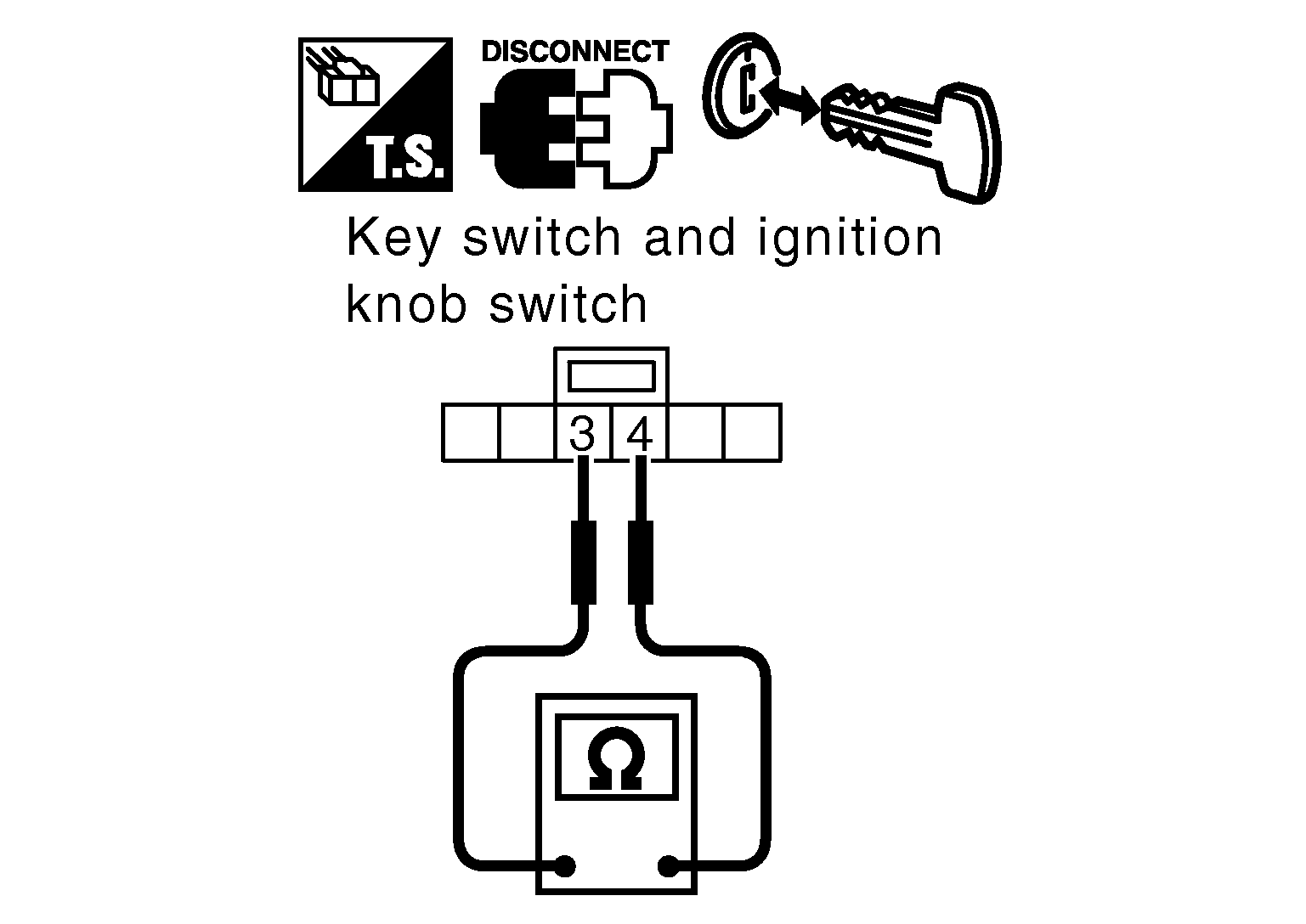

    Fig 3: Checking Continuity Between Key Switch And Ignition Knob Switch Terminals 3 And 4
    G04076939Courtesy of NISSAN NORTH AMERICA, INC.
    Component Terminals Condition Continuity
    Key switch 3 4 Insert mechanical key into ignition switch. Yes
    Remove mechanical key from ignition switch. No

    Is the inspection result normal?

    YES

    GO TO STEP 4

    NO

    Replace key cylinder assembly (built-in key switch).

  4. CHECK KEY SWITCH CIRCUIT

    1. Check continuity between Intelligent Key unit harness connector (A) M70 terminal 7 and key switch and ignition knob switch harness connector (B) M12 terminal 4.
      Fig 4: Checking Continuity Between Intelligent Key Unit Connector M70 Terminal 7 And Key Switch And Ignition Knob Switch Connector M12 Terminal 4
      G04916804Courtesy of NISSAN NORTH AMERICA, INC.
      7 - 4 Continuity should exist.
    2. Check continuity between Intelligent Key unit harness connector (A) M70 terminal 7 and ground.
      7 - Ground Continuity should not exist.

    Is the inspection result normal?

    YES

    Check the condition of harness and harness connector.

    NO

    Repair or replace harness between Intelligent Key unit and key switch and ignition knob switch.
