Power Supply And Ground Circuit: BCM

Regarding Wiring Diagram information, refer to WIRING DIAGRAM .

1. CHECK FUSES AND FUSIBLE LINK



   Check that the following fuses and fusible link are not blown.

   Terminal No.	Signal name	Fuses and fusible link No.
   57	Battery power supply	22 (15A)
   70		F (50A)
   11	Ignition ACC or ON	4 (10A)
   38	Ignition ON or START	59 (10A)

   Is the fuse blown?

   YES

   Replace the blown fuse or fusible link after repairing the affected circuit.

   NO

   GO TO STEP 2

2. CHECK POWER SUPPLY CIRCUIT


   1. Turn ignition switch OFF.
   2. Disconnect BCM.
   3. Check voltage between BCM harness connector and ground.

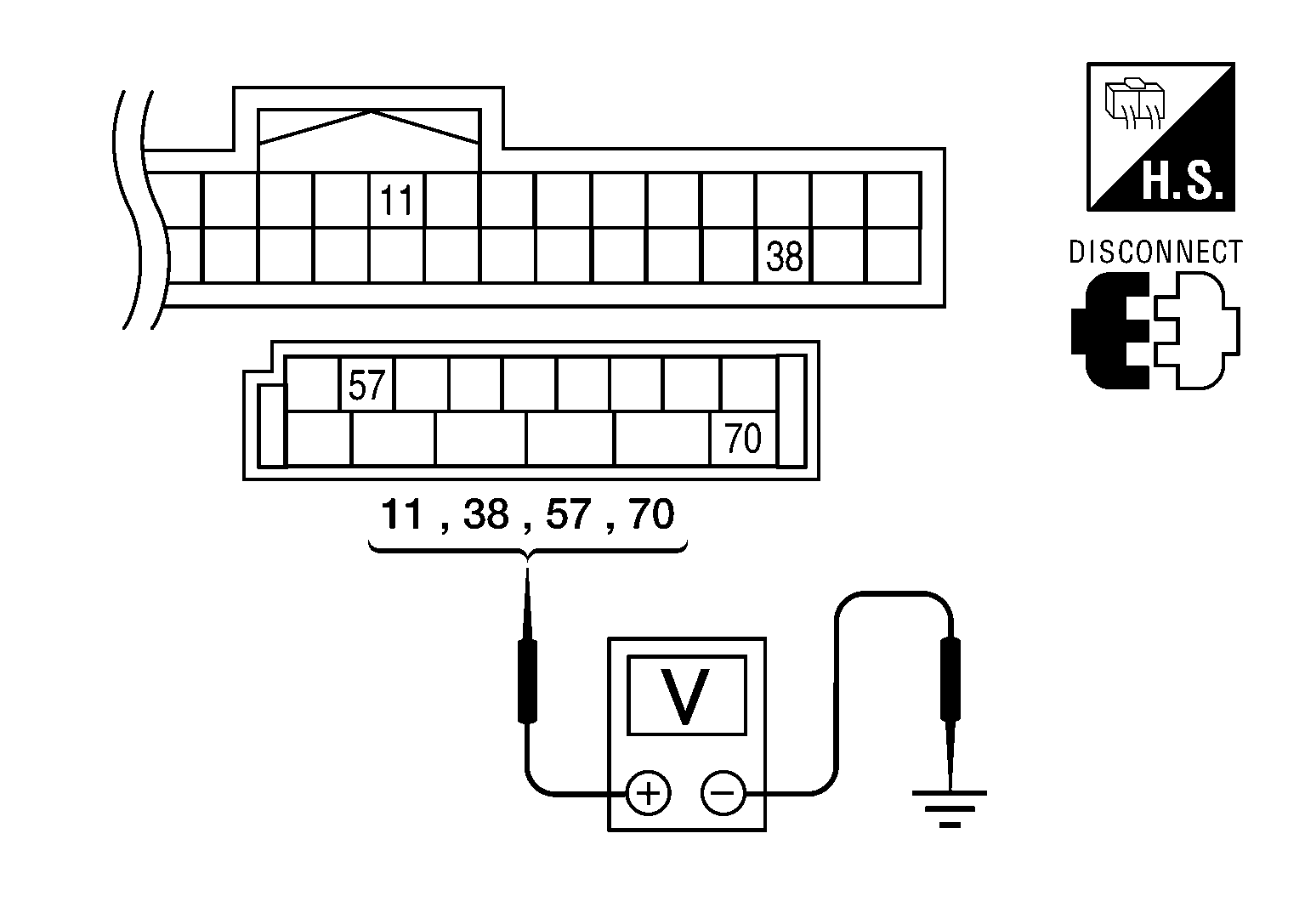

      Fig 1: Checking Voltage Between BCM Harness Connector And Ground

      Courtesy of NISSAN NORTH AMERICA, INC.

      Connector	Terminals		Power source	Condition	Voltage (V) (Approx.)
      	(+)	(-)
      M18	11	Ground	ACC power supply	Ignition switch ACC or ON	Battery voltage
      	38	Ground	Ignition power supply	Ignition switch ON or START	Battery voltage
      M20	57	Ground	Battery power supply	Ignition switch OFF	Battery voltage
      	70	Ground	Battery power supply	Ignition switch OFF	Battery voltage

   Is the measurement value normal?

   YES

   GO TO STEP 3

   NO

   Repair or replace harness.

3. CHECK GROUND CIRCUIT



   Check continuity between BCM harness connector and ground.

   Fig 2: Checking Continuity Between BCM Connector M20 Terminal 67 And Ground

   Courtesy of NISSAN NORTH AMERICA, INC.

   BCM		Ground	Continuity
   Connector	Terminal
   M20	67		Yes

   Does continuity exist?

   YES

   Inspection End.

   NO

   Repair or replace harness.
