Component Parts Location

WARNING: This page is about a different car, the 2015 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

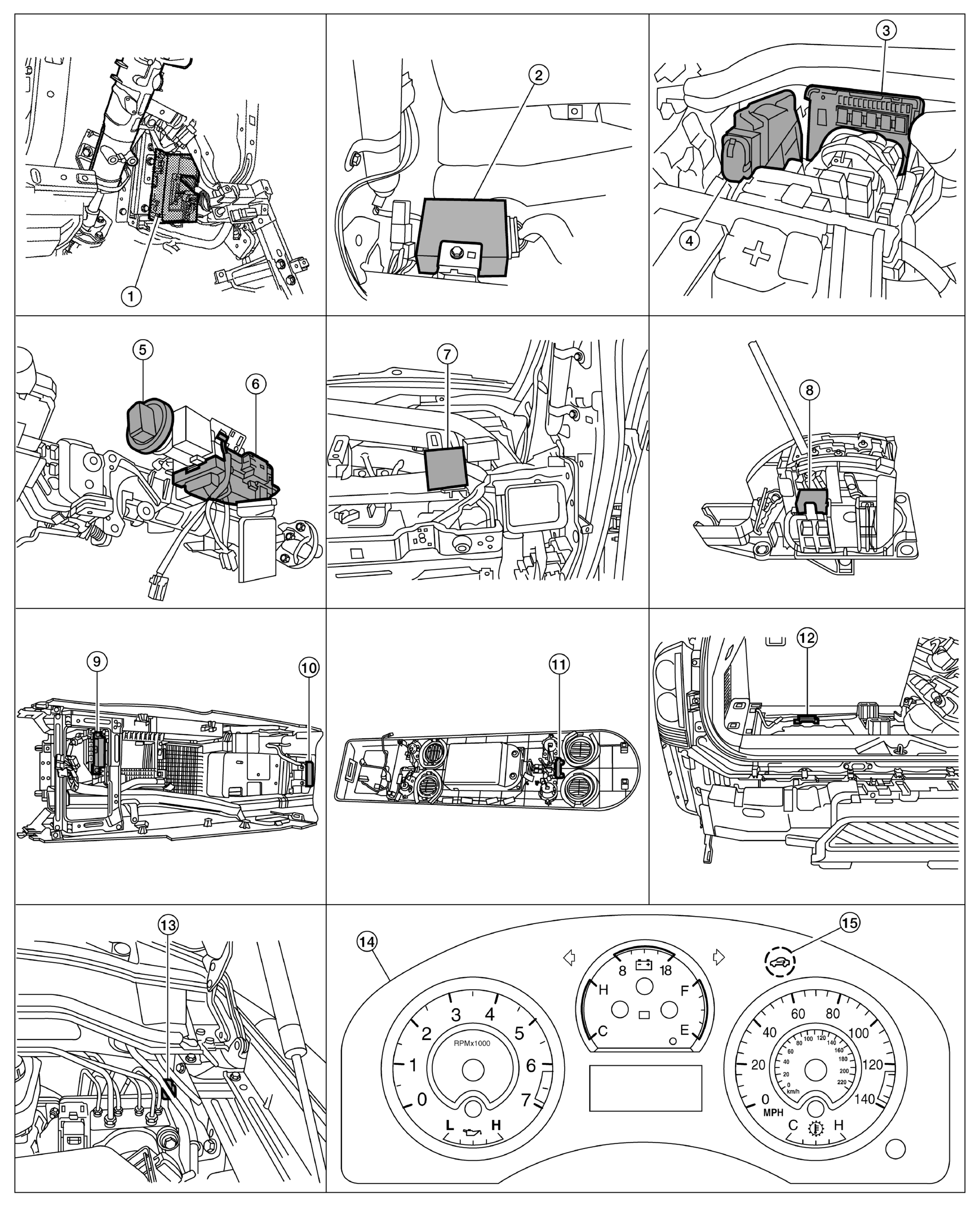

Fig 1: Security Control System (With Intelligent Key System) Components Location
GNSAWKIA2076ZZ-076Courtesy of NISSAN NORTH AMERICA, INC.
1. BCM M18, M20
(View With Instrument Panel LH Removed)		 2. Intelligent Key Unit M70
(View With Instrument Panel LH Removed)		 3. IPDM E/R
E119, E120, E122, E124
4. ECM E16 5. Key Switch And Ignition Knob Switch M12
(View With Steering Column Removed)		 6. Steering Lock Solenoid M15
7. Remote Keyless Entry Receiver M25
(view With Instrument Panel RH Removed)		 8. A/T Shift Selector (Park Position Switch) M203
(View With Center Console Removed)		 9. Center Console Area Antenna (Front) M210
(View With Center Console Removed)
10. Center Console Area Antenna (Rear) M209
(View With Center Console Removed)		 11. Overhead Console Area Antenna R210
(View With Overhead Console Removed)		 12. Luggage Area Antenna B76
(View With Rear Carpet Removed)
13. Intelligent Key Warning Buzzer E25 14. Combination Meter M24 15. Vehicle Security Indicator Lamp
