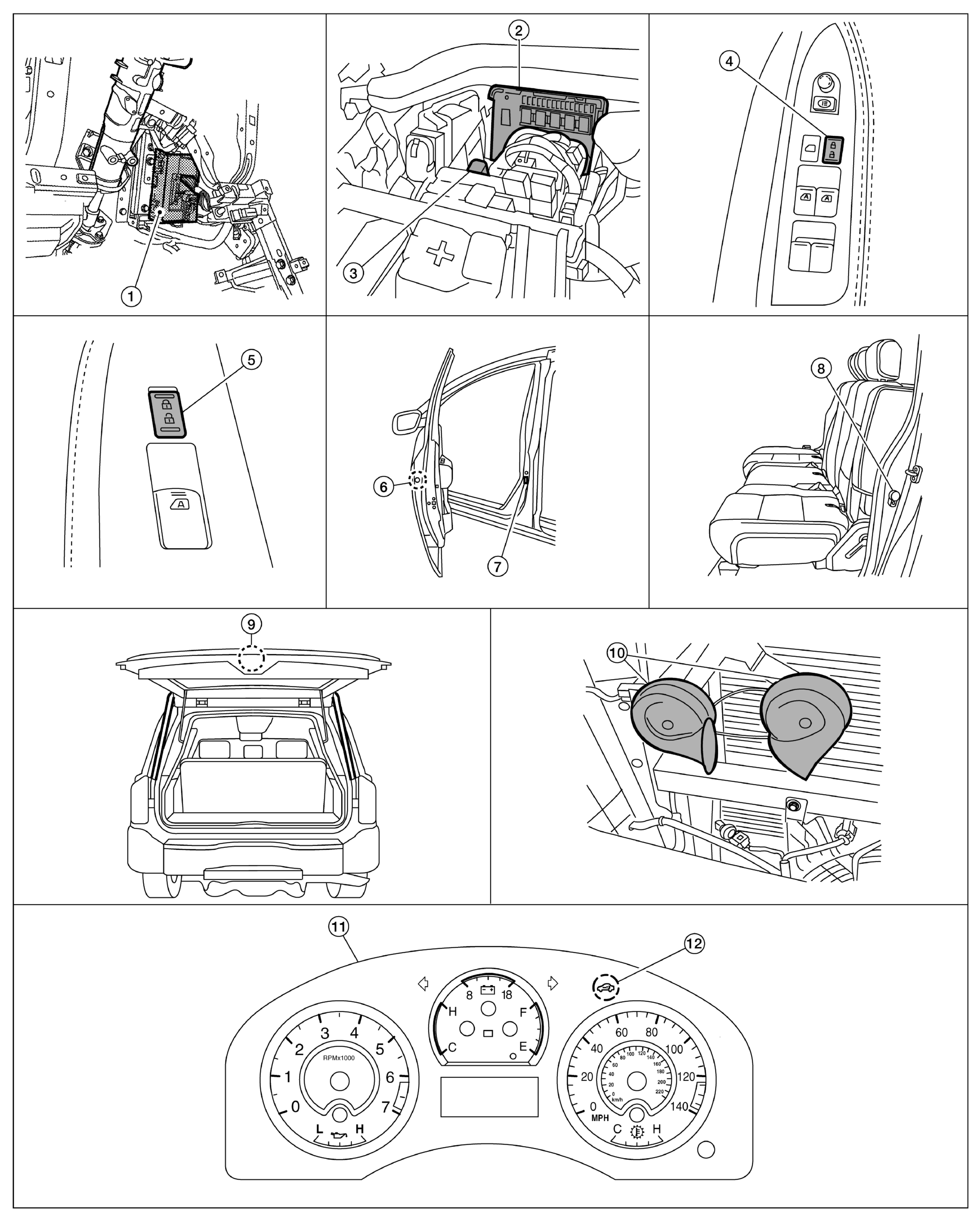

Component Parts Location
WARNING: This page is about a different car, the 2015 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | BCM M18, M19, M20 (View With Instrument Panel LH Removed) |
2. | IPDM E/R E122, E124 (View With Cover Removed) |
3. | Horn Relay H-1 |
| 4. | Main Power Window And Door Lock/Unlock Switch D7, D8 | 5. | Power Window And Door Lock/Unlock Switch RH D105 | 6. | Front Door Lock Assembly LH (Key Cylinder Switch) D14 |
| 7. | front door switch LH B8 RH B108 |
8. | rear door switch LH B18 RH B116 |
9. | Back Door Latch (Door Ajar Switch) D503 Glass Hatch Ajar Switch D707 |
| 10. | Horn E3 (View With Front Grille Removed) |
11. | Combination Meter M24 | 12. | Security Indicator Lamp |
