Wiring Diagram - With Intelligent Key System

WARNING: This page is about a different car, the 2015 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

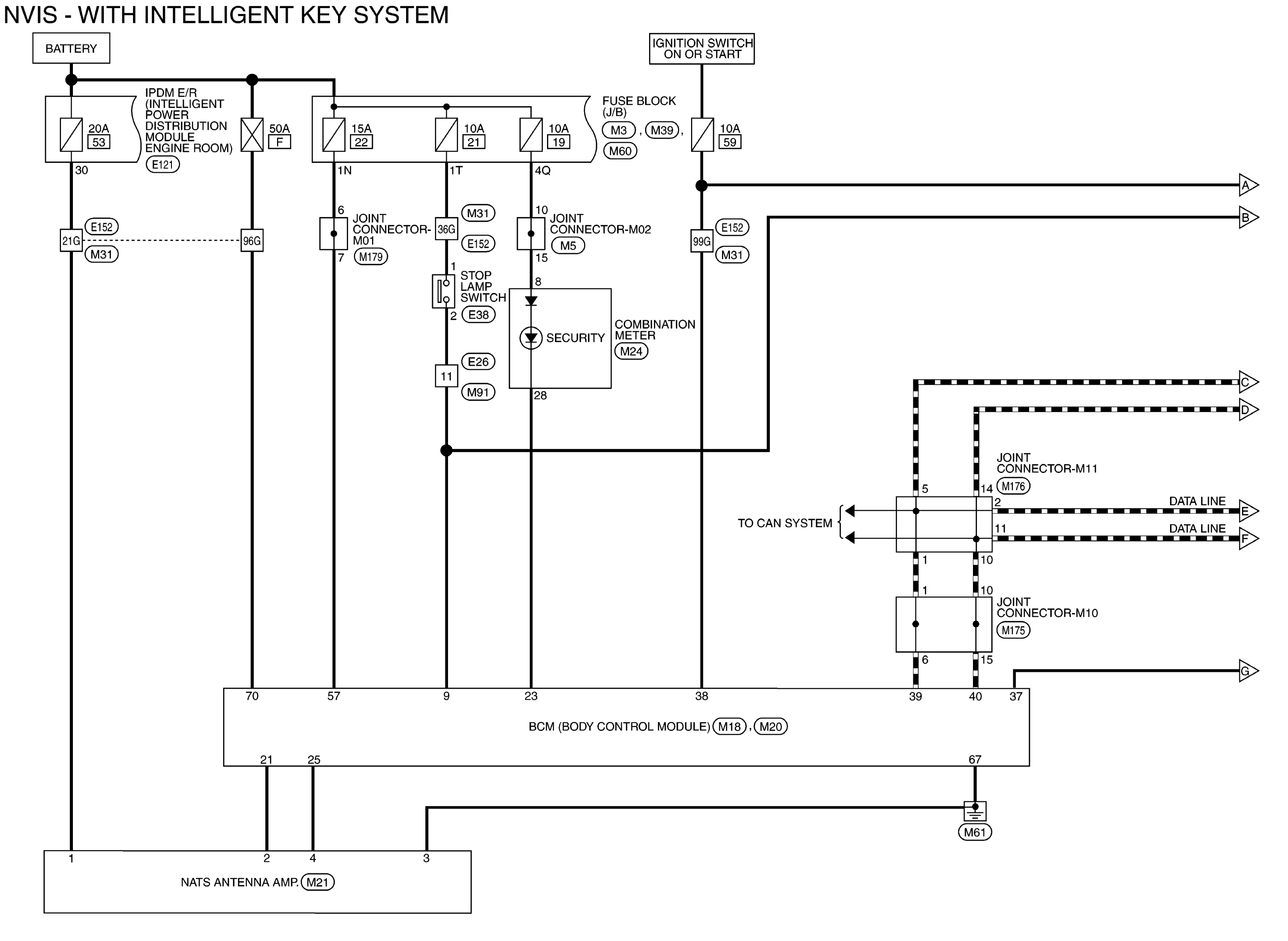

Fig 1: NVIS - With Intelligent Key System Wiring Diagram (1 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

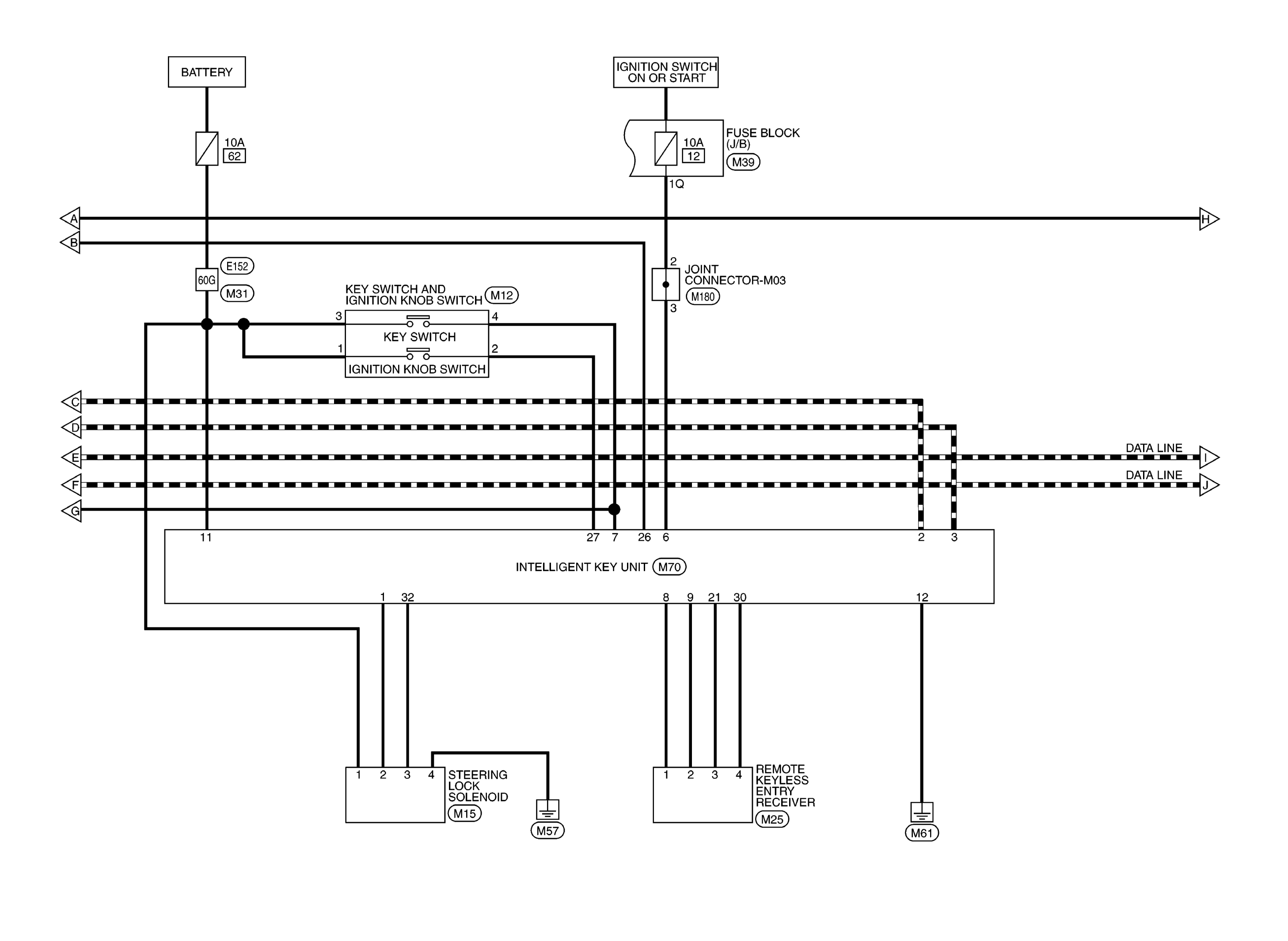

Fig 2: NVIS - With Intelligent Key System Wiring Diagram (2 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 3: NVIS - With Intelligent Key System Wiring Diagram (3 Of 3)

Courtesy of NISSAN NORTH AMERICA, INC.

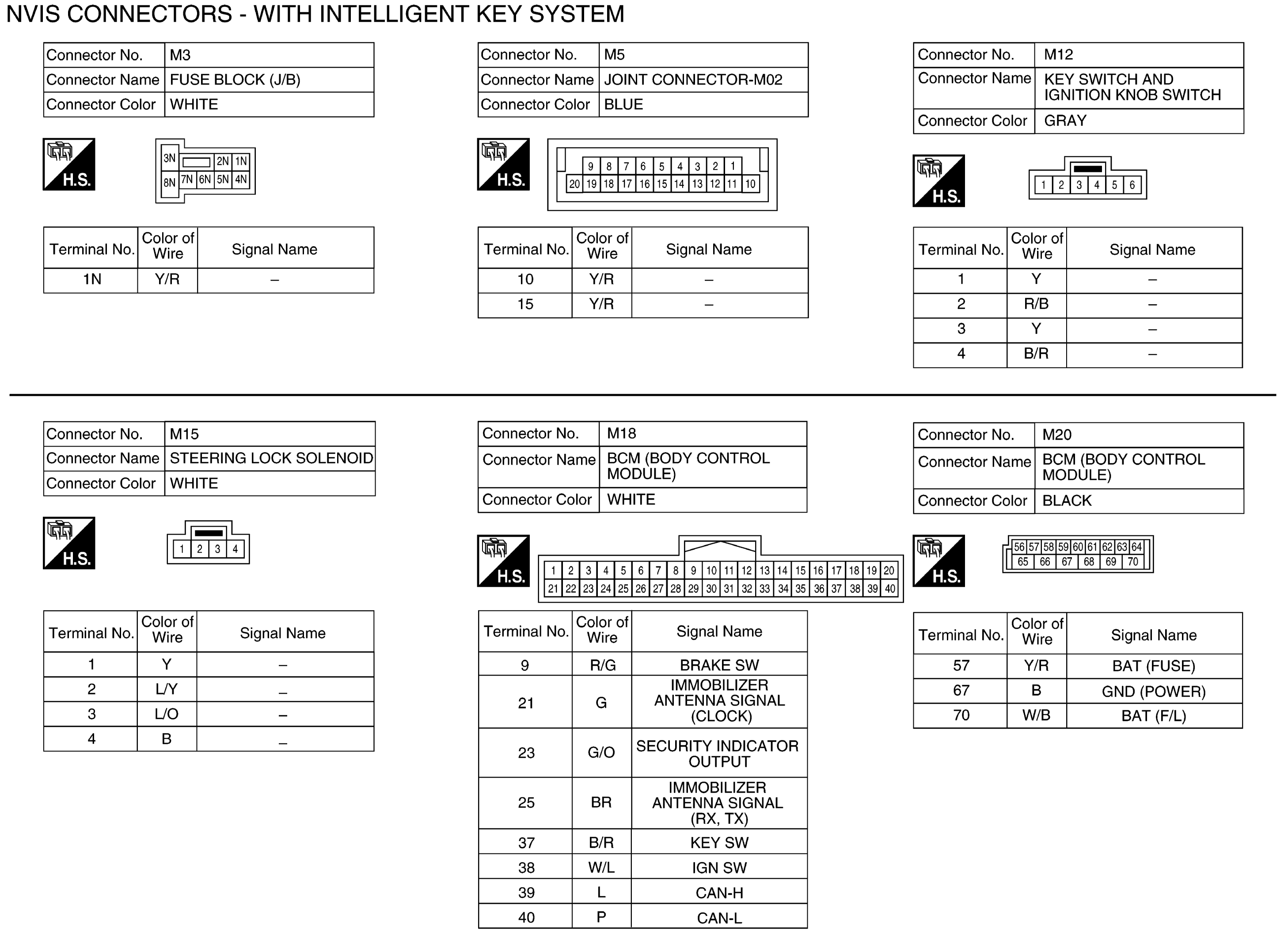

Fig 4: NVIS Connector End Views - With Intelligent Key System (1 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

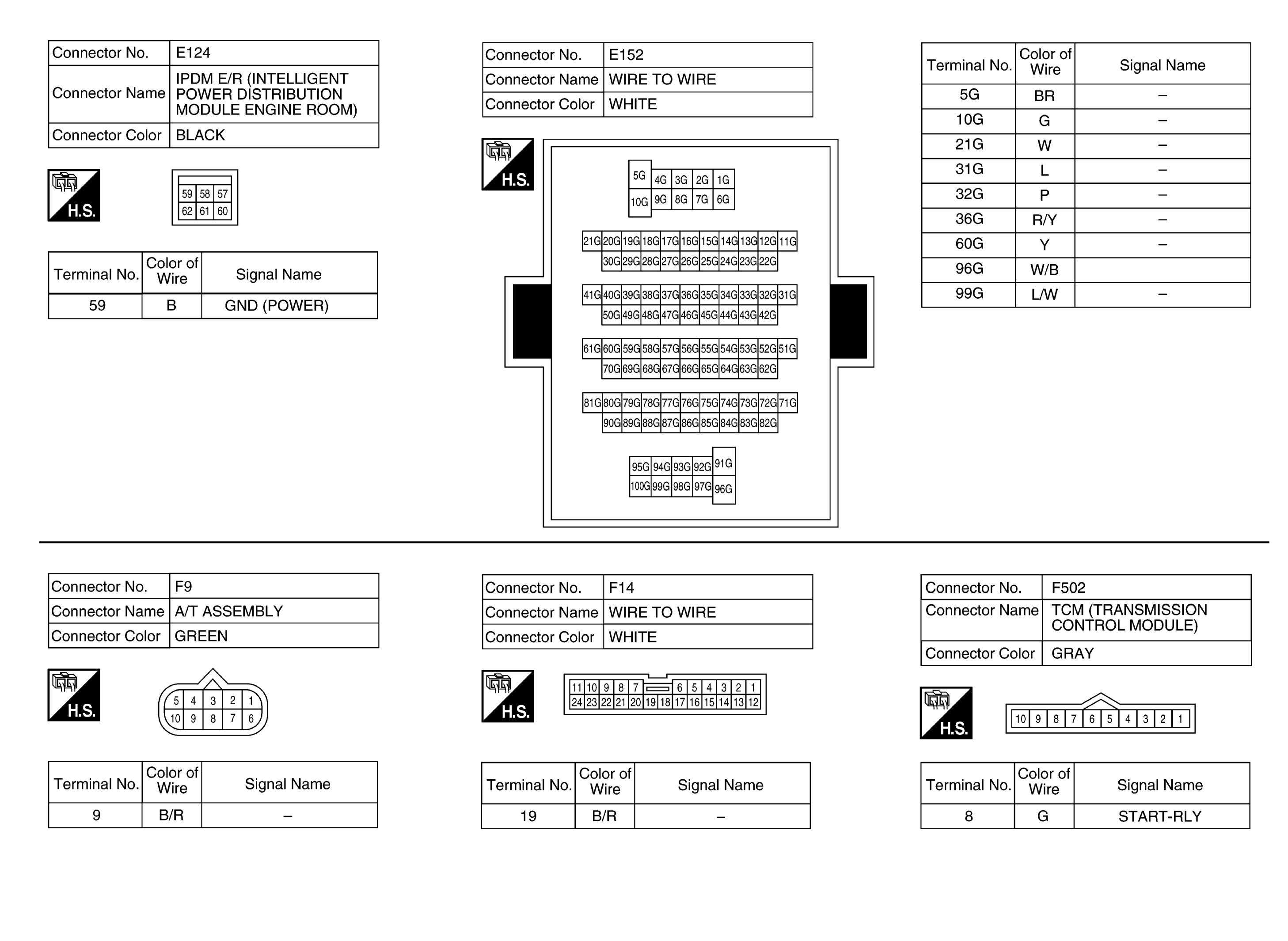

Fig 5: NVIS Connector End Views - With Intelligent Key System (2 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

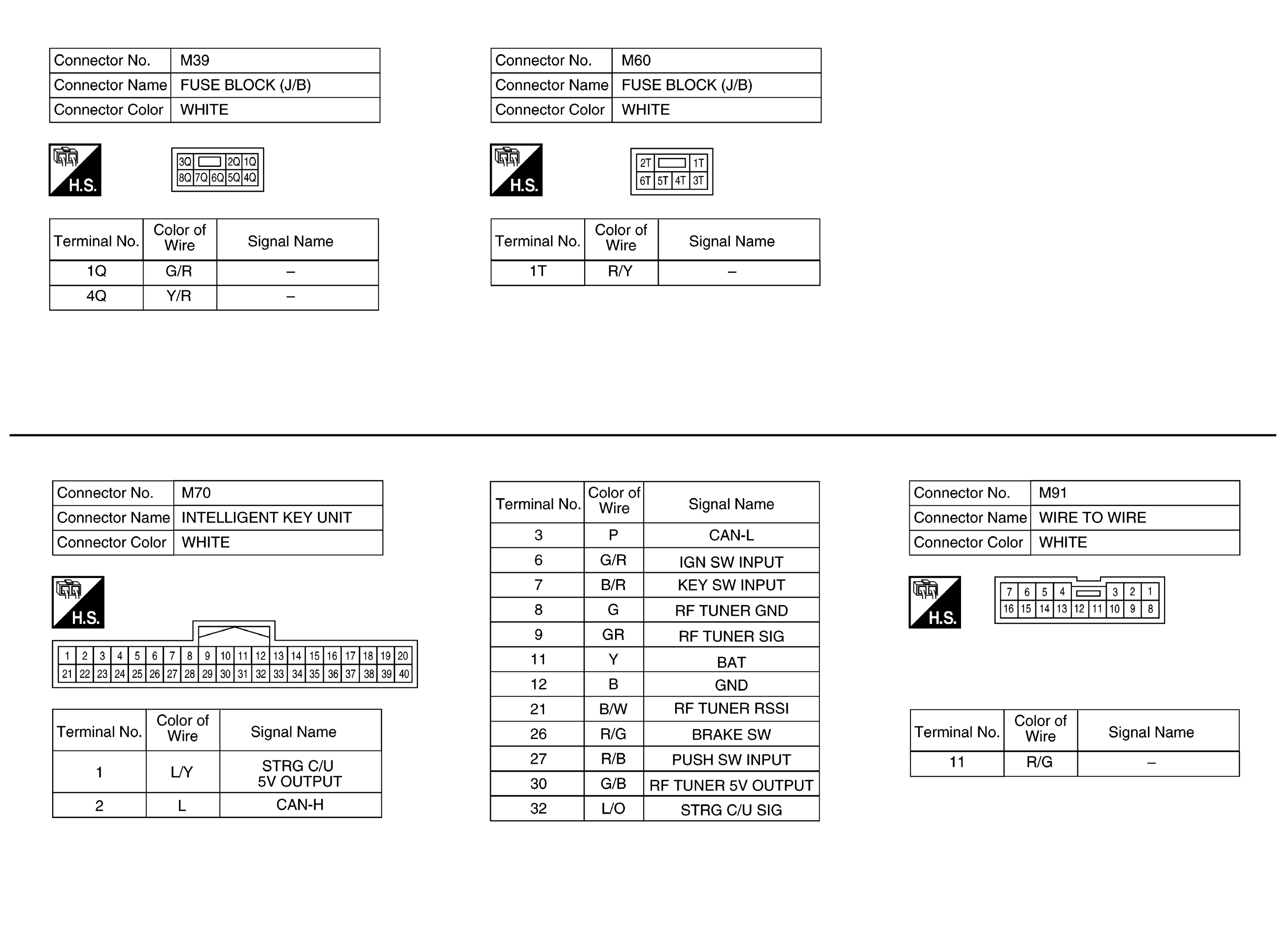

Fig 6: NVIS Connector End Views - With Intelligent Key System (3 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

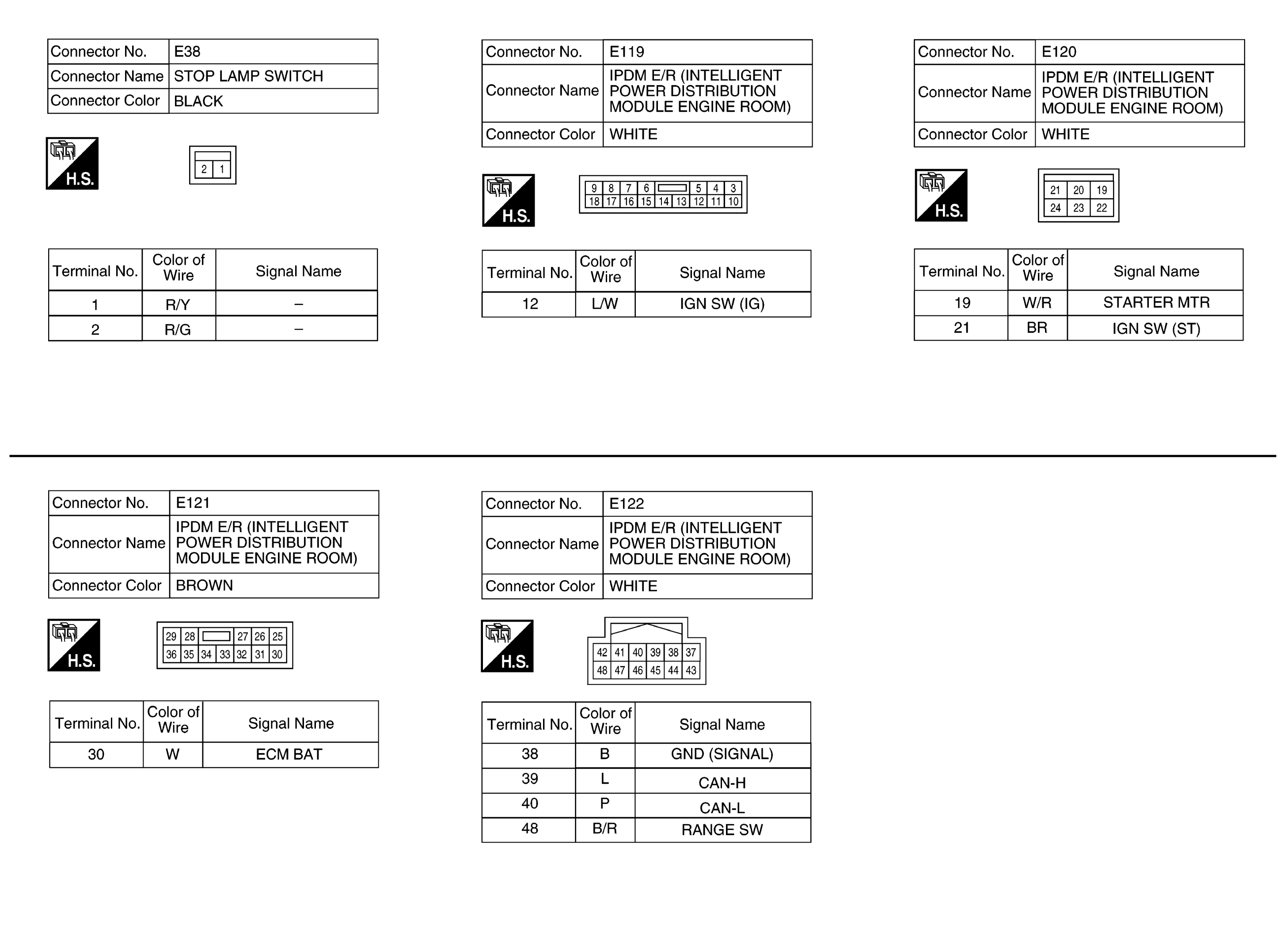

Fig 7: NVIS Connector End Views - With Intelligent Key System (4 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

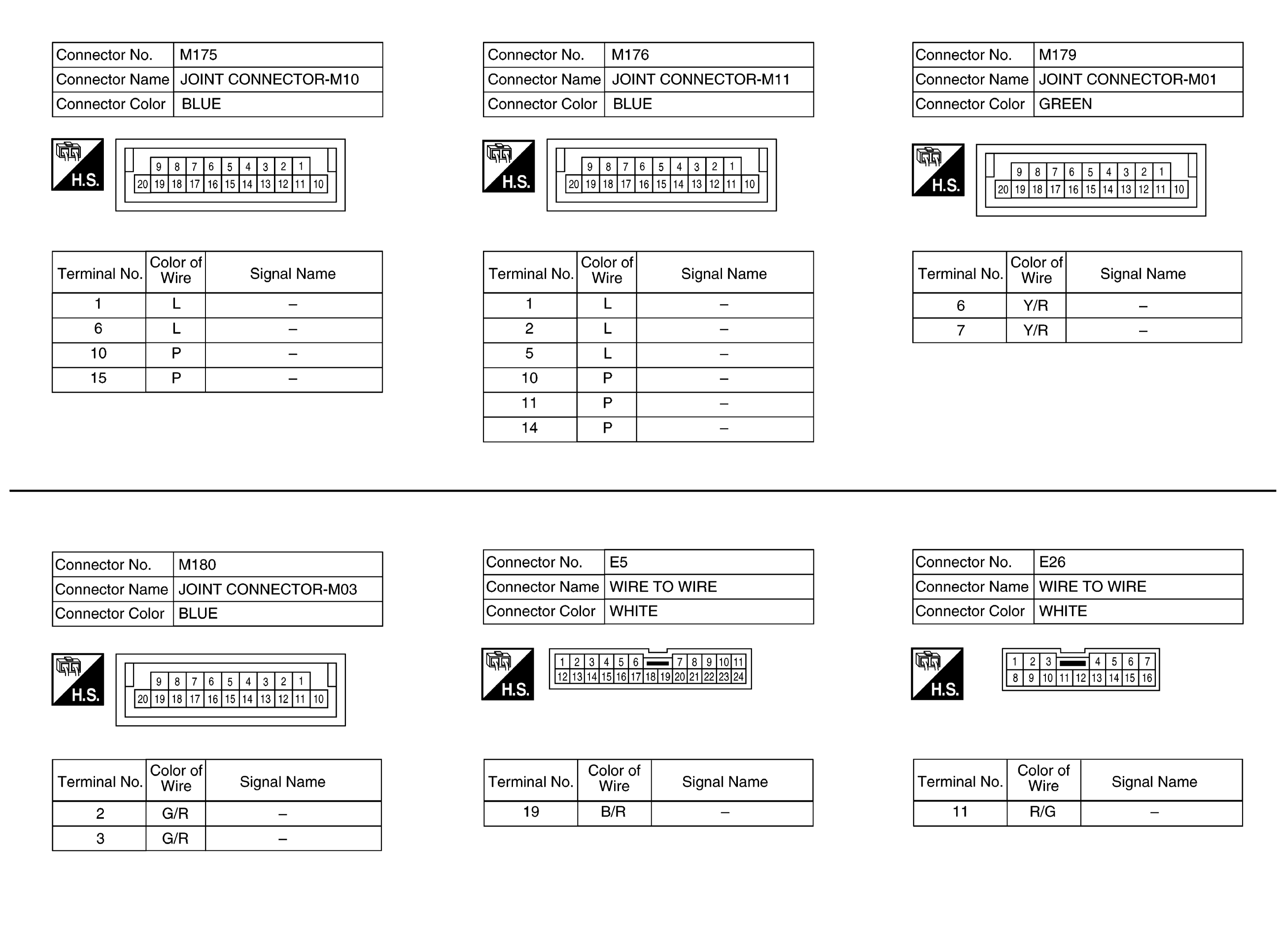

Fig 8: NVIS Connector End Views - With Intelligent Key System (5 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.

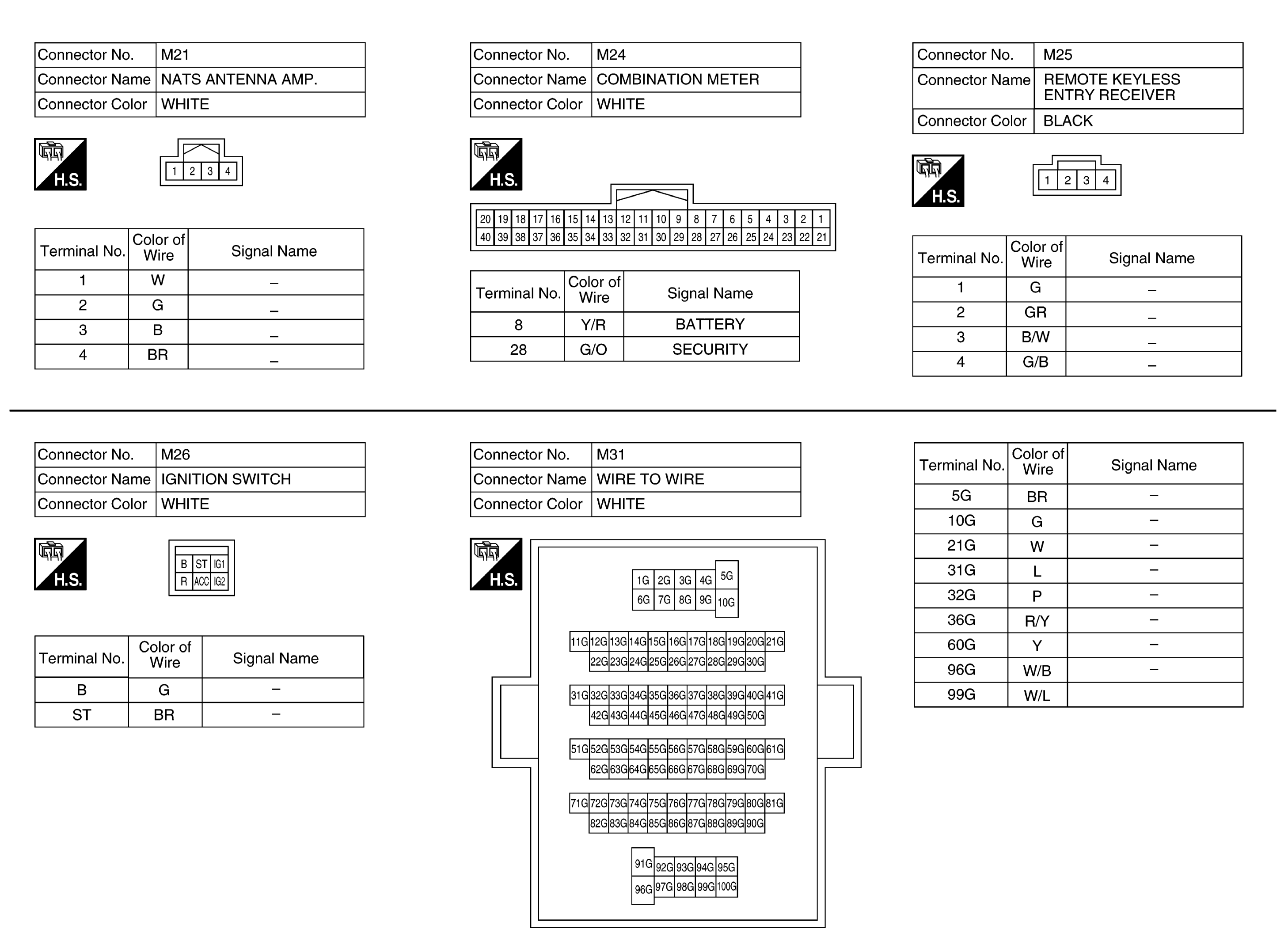

Fig 9: NVIS Connector End Views - With Intelligent Key System (6 Of 6)

Courtesy of NISSAN NORTH AMERICA, INC.
