WARNING: This page is about a different car, the 2015 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

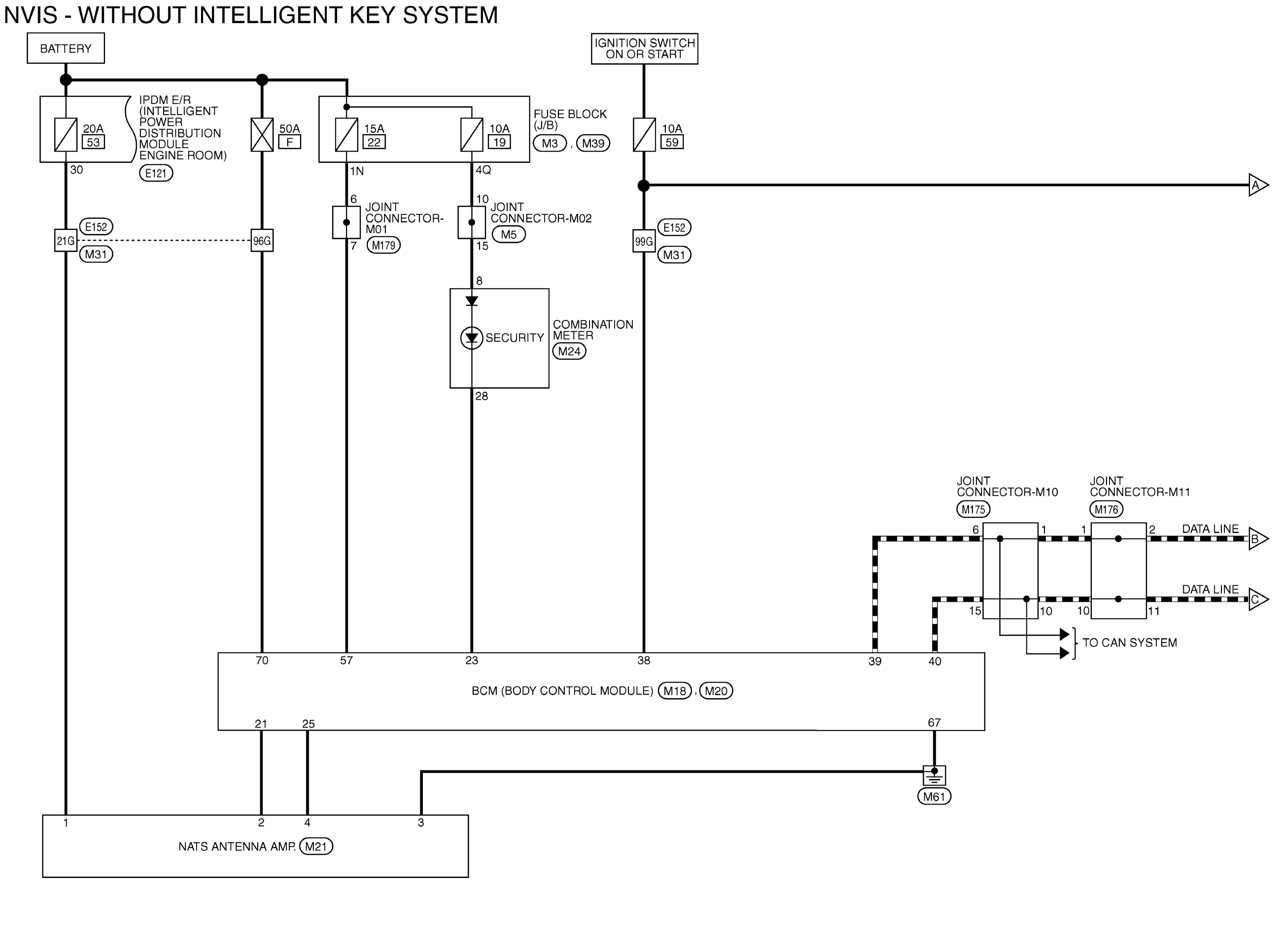

Fig 1: NVIS - Without Intelligent Key System Wiring Diagram (1 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.
Fig 2: NVIS - Without Intelligent Key System Wiring Diagram (2 Of 2)
Courtesy of NISSAN NORTH AMERICA, INC.

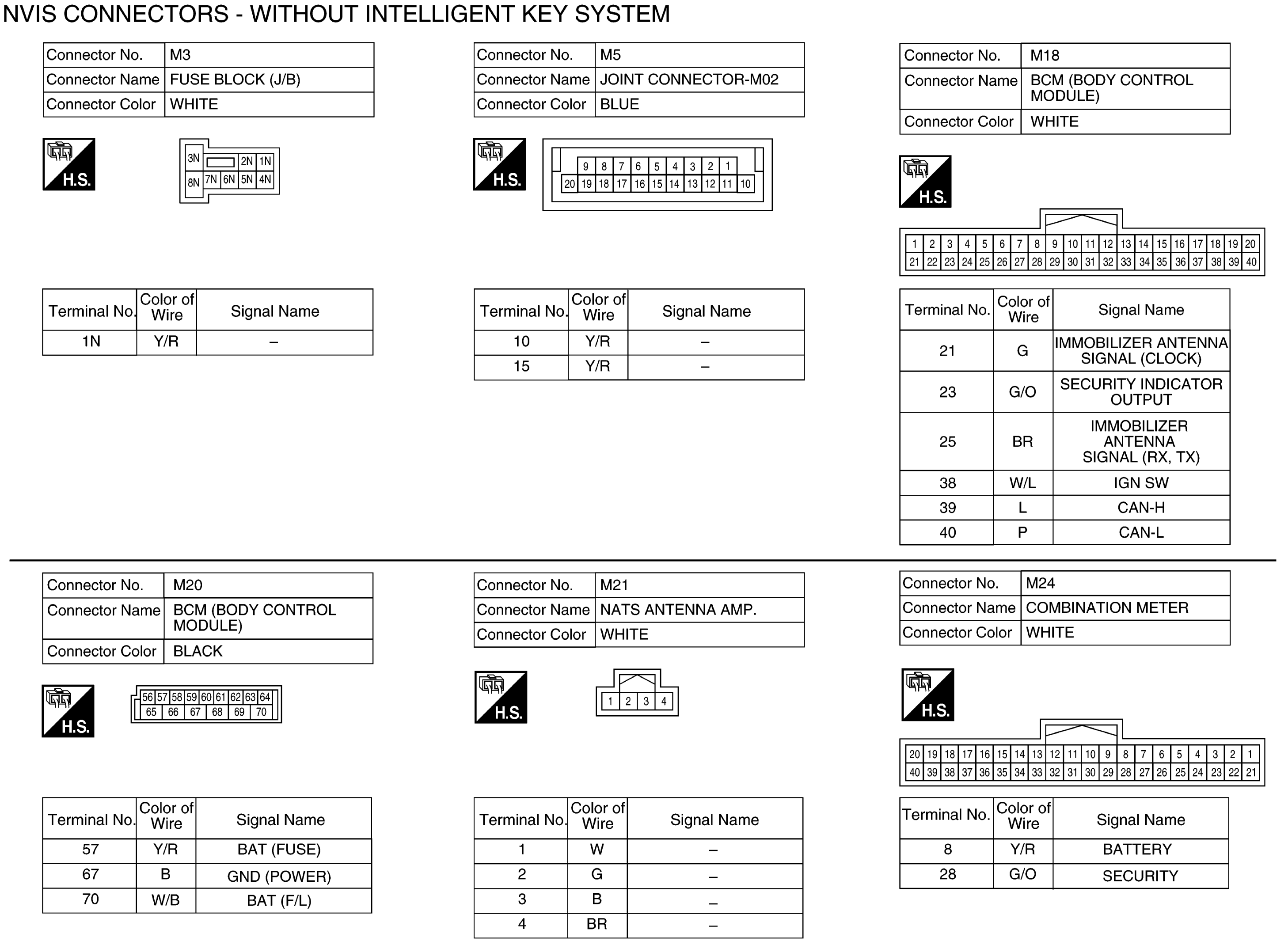

Fig 3: NVIS - Without Intelligent Key System Connector End Views (1 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

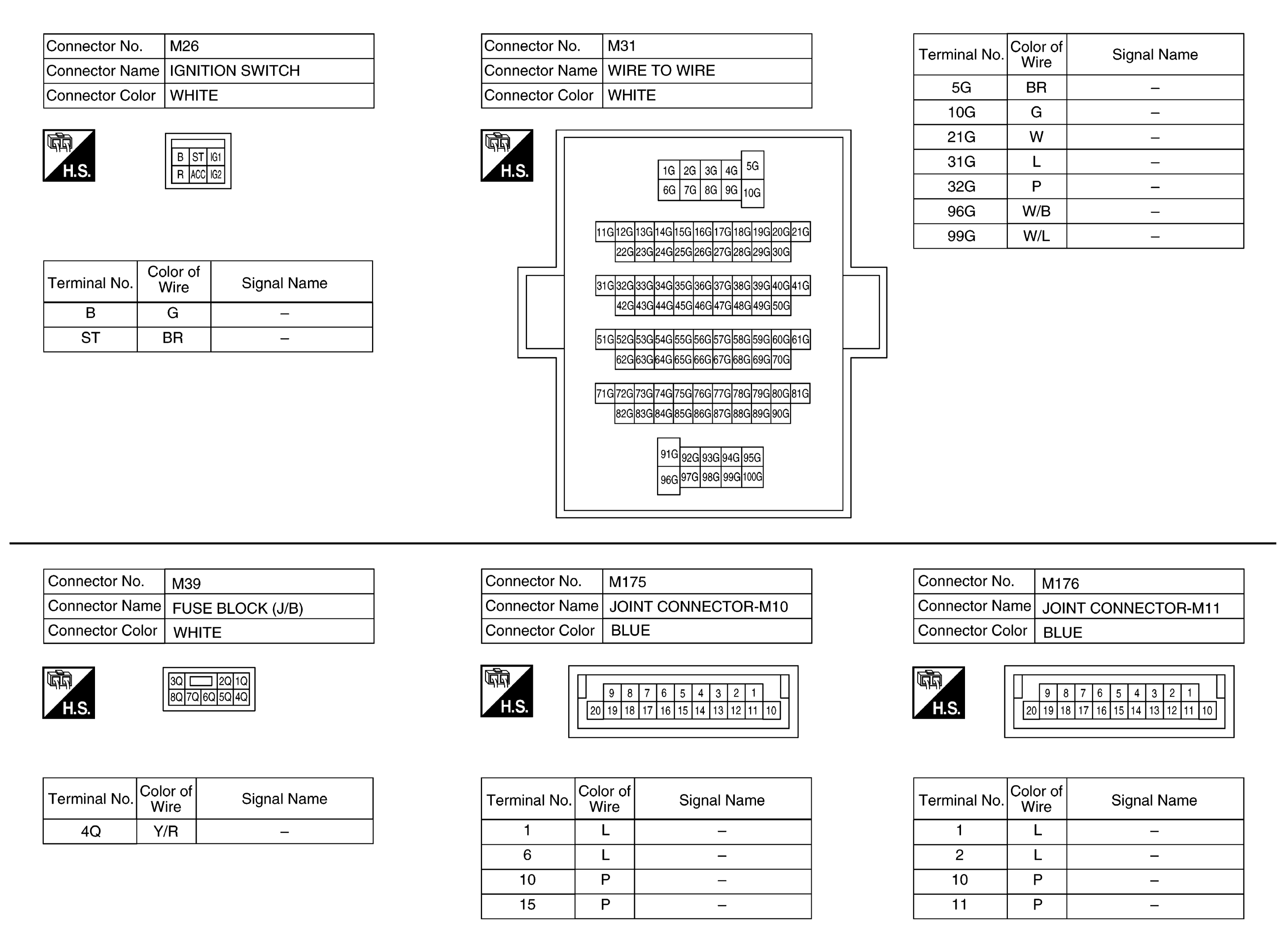

Fig 4: NVIS - Without Intelligent Key System Connector End Views (2 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

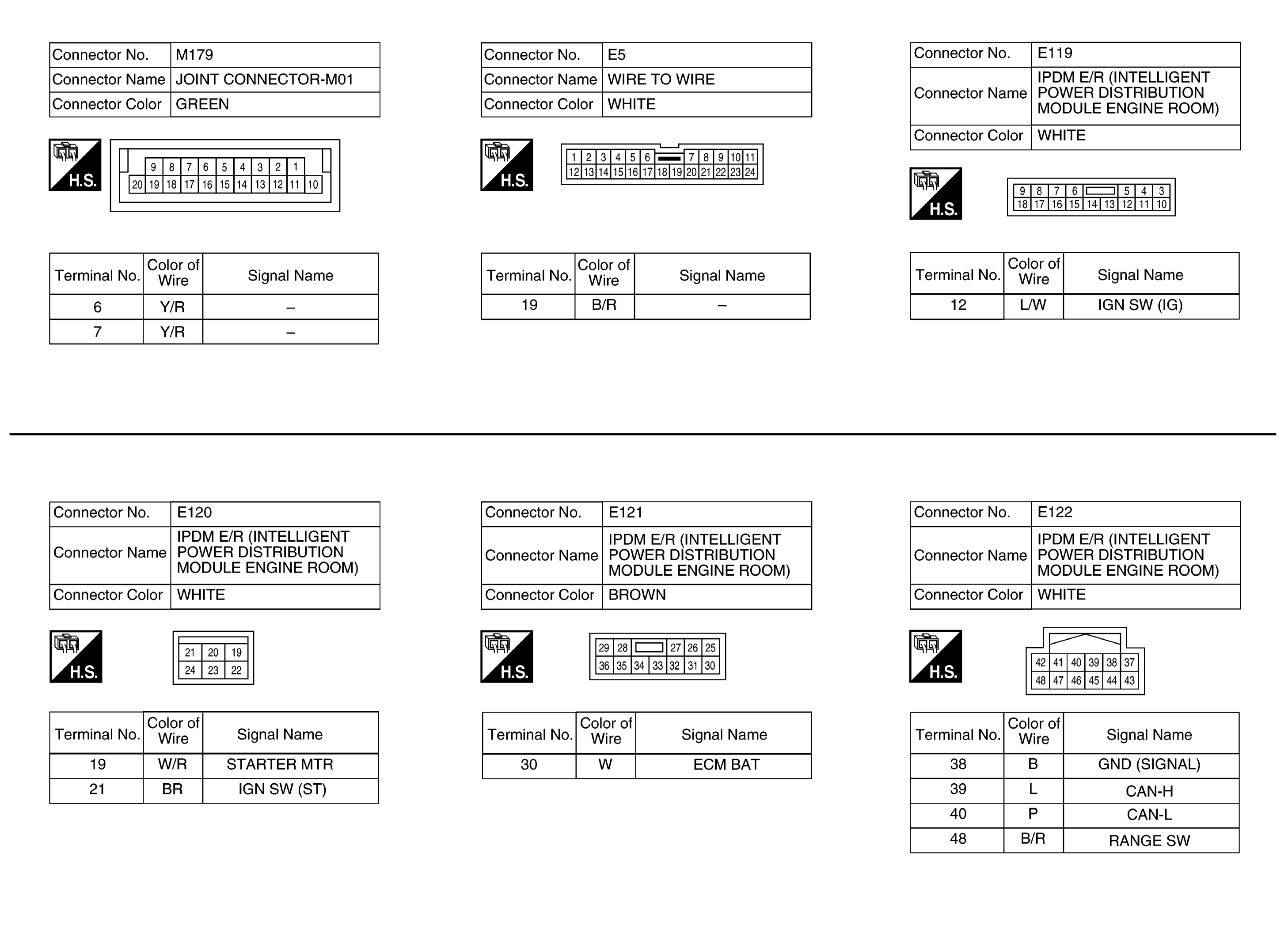

Fig 5: NVIS - Without Intelligent Key System Connector End Views (3 Of 4)
Courtesy of NISSAN NORTH AMERICA, INC.

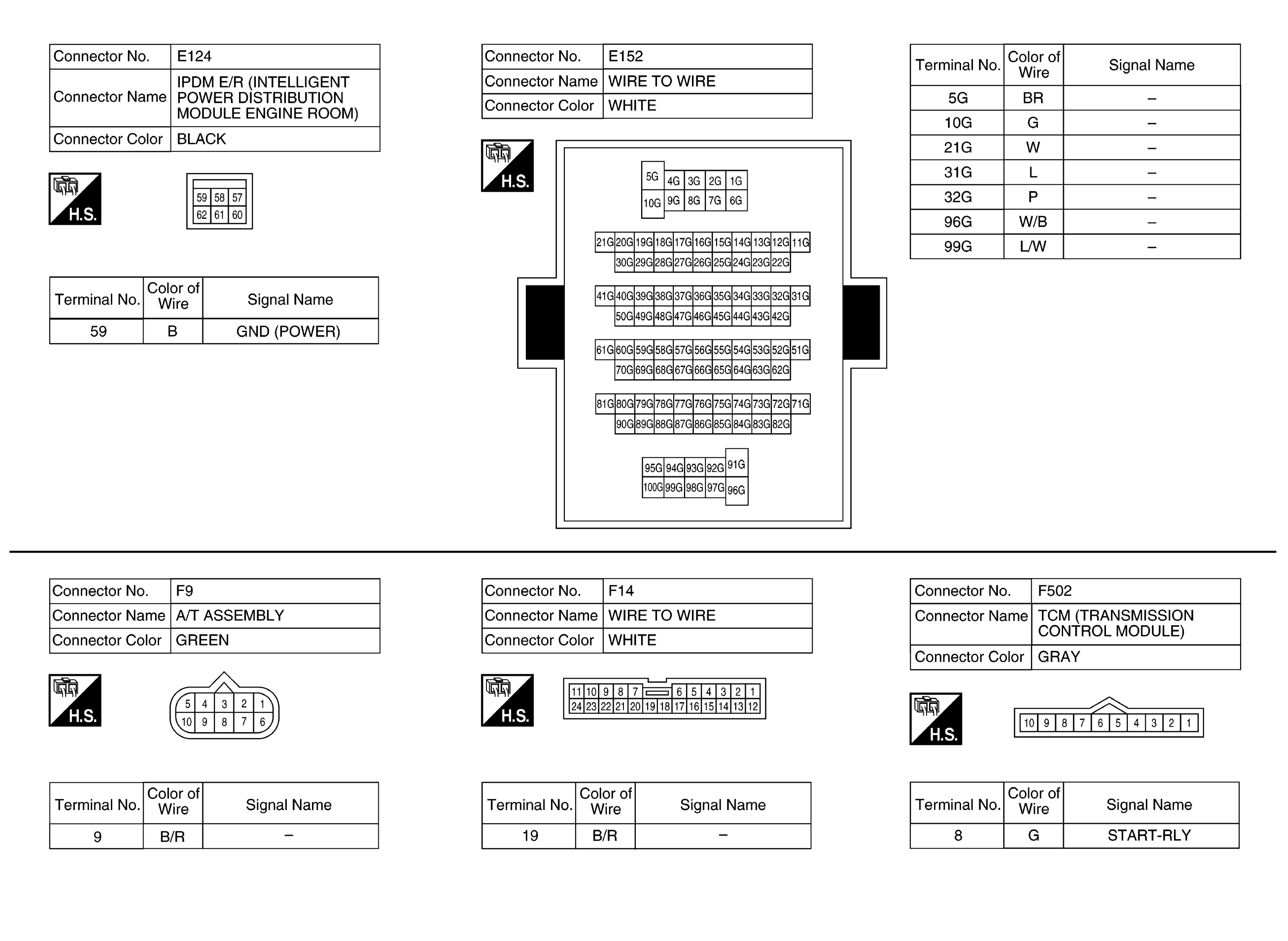

Fig 6: NVIS - Without Intelligent Key System Connector End Views (4 Of 4)
